CF Adapter MK-725 and CompactFlash Card 11-13

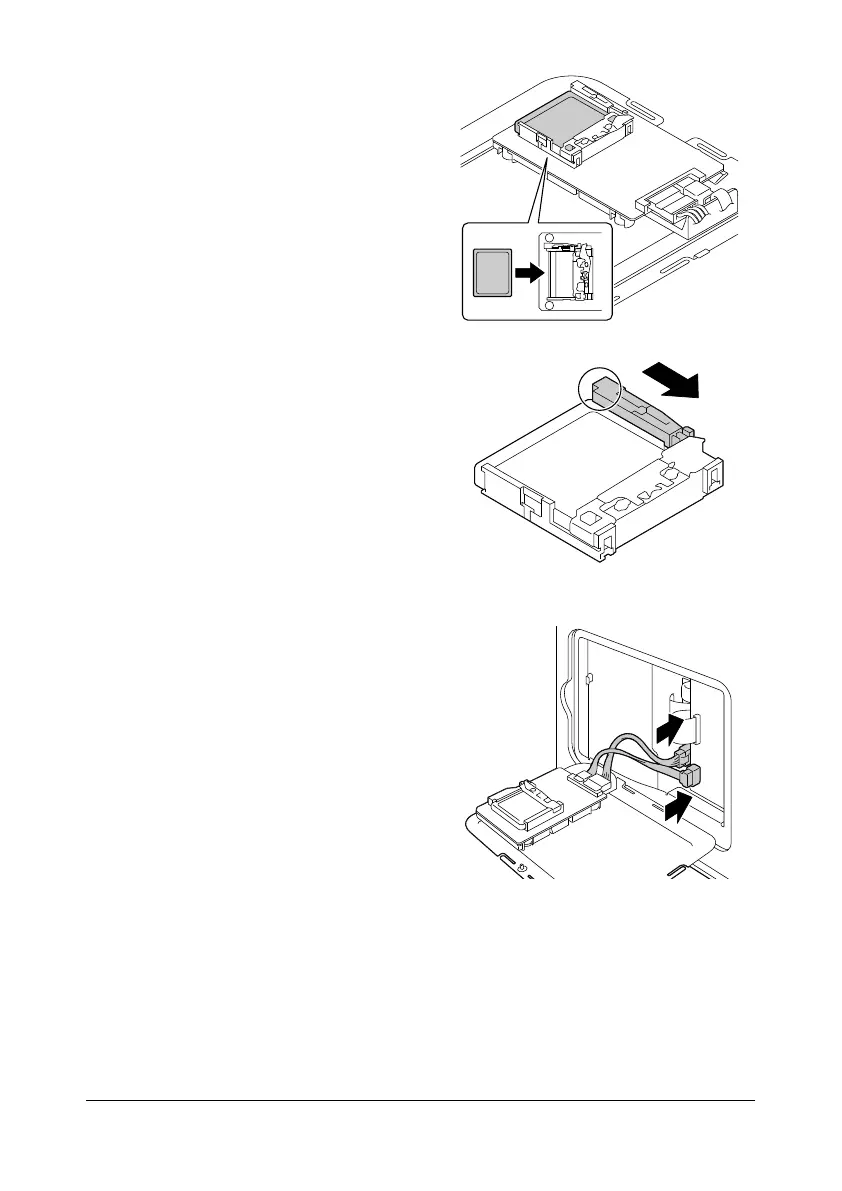

6 Fully insert the CompactFlash
card into the appropriate slot.
When the CompactFlash card is
correctly inserted, the button on
the top side of the slot (circled in
the illustration) slightly pops out.
d
Before removing the
CompactFlash card,
press in this button.
7 Plug the two cables on the CF
Adapter MK-725 into the con-
nector.
8 Attach the cover, and then tighten the screw.
9 Close the rear cover.
10 Reconnect all interface cables.
11 Reconnect the power cord, and turn on the machine.
12 Declare the Memory card in the Windows printer driver ([Properties]/
[Configure] tab).
