Dibal D900 Series User Manual

Manual D900 Communications
49-MD900EN05
119
5.4. TURNOMATIC
The D-900 hanging scales have the Turnomatic option. The scales connection is carried out by a RJ11
connector (telephone connector). The cable used will be three-way shielded, having into account the
following schematic connection.
Connector RJ11:
PIN Number
1------------------------------------------UP
5------------------------------------------DOWN
6------------------------------------------COMMON
2 to 4------------------------------------N.C.
5.5. CASH DRAWER OPENING CABLE
As the same way as the turnomatic hanging scales, the opening drawer cable, the other models, use the
same RJ11 connector. Pin assignment is the following:
Connector RJ11:
Pin Number
2----------------- GND (negative end of the electromagnet)
3----------------- Indication signal of open cash drawer.
4----------------- +24V (positive end of the electromagnet)
6----------------- GND connection (indication signal of closed cash drawer).
1 and 5--------- N.C.

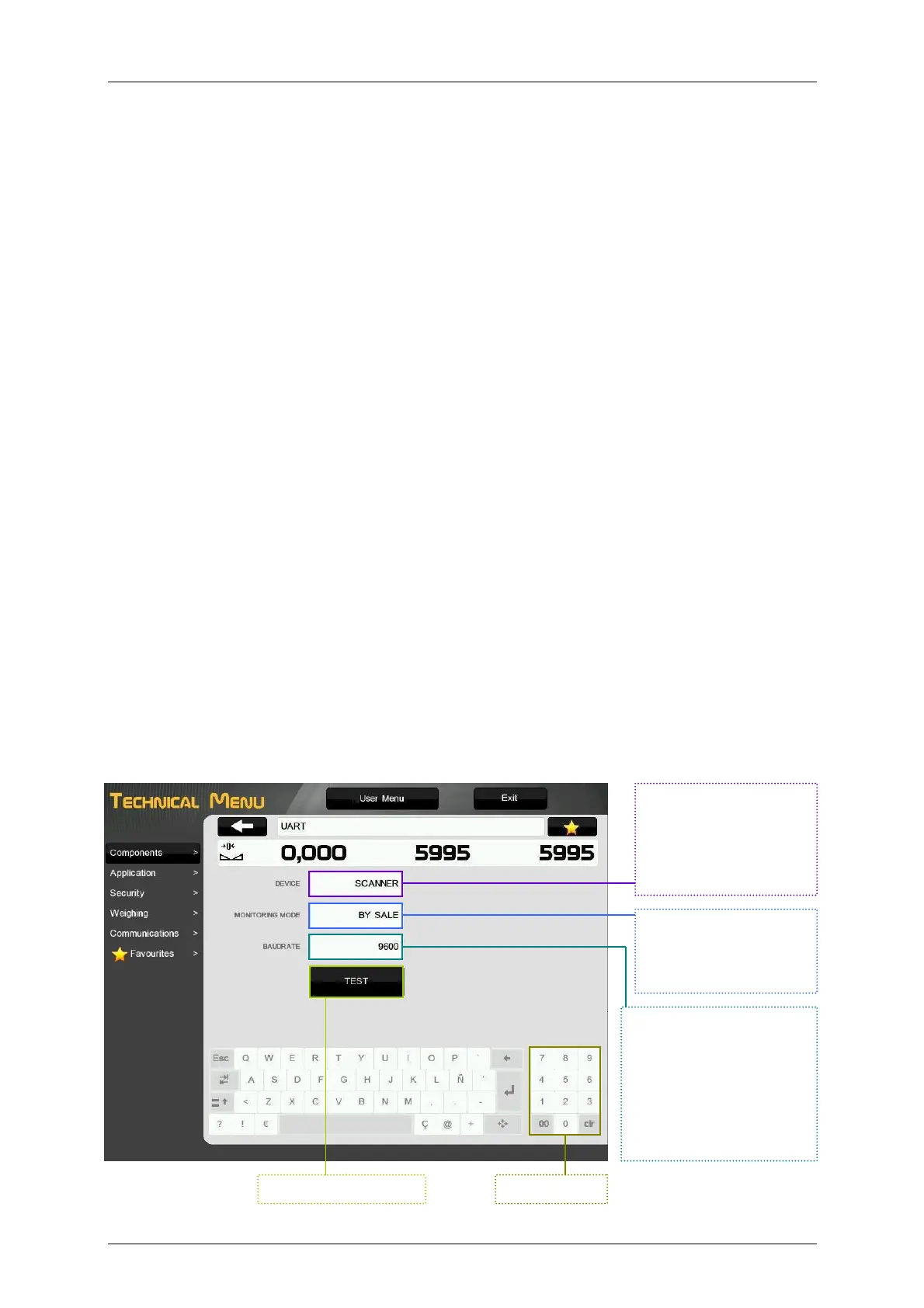

5.6. RS-232 COMMUNICATIONS PARAMETERS
This menu is used to configure the RS-232 communication parameters of the scale.
To Access the menu select: Technical Menu  Components  UART)
The communication is done at 8 bits without parity.
Selection of the device:
0 – Scaner
1 – CCTV
2 – Indicator + Internal
3 – RFID Reader
4 – PCPOS
CCTV Mode
0 – Per sale
1 – Continuous
2 – Both
Baudrate:
0 – 1200 bauds
1 – 2400 bauds
2 – 4800 bauds
3 – 9600 bauds
4 – 19200 bauds
5 – 38400 bauds
Keyboard. Communication Test.
