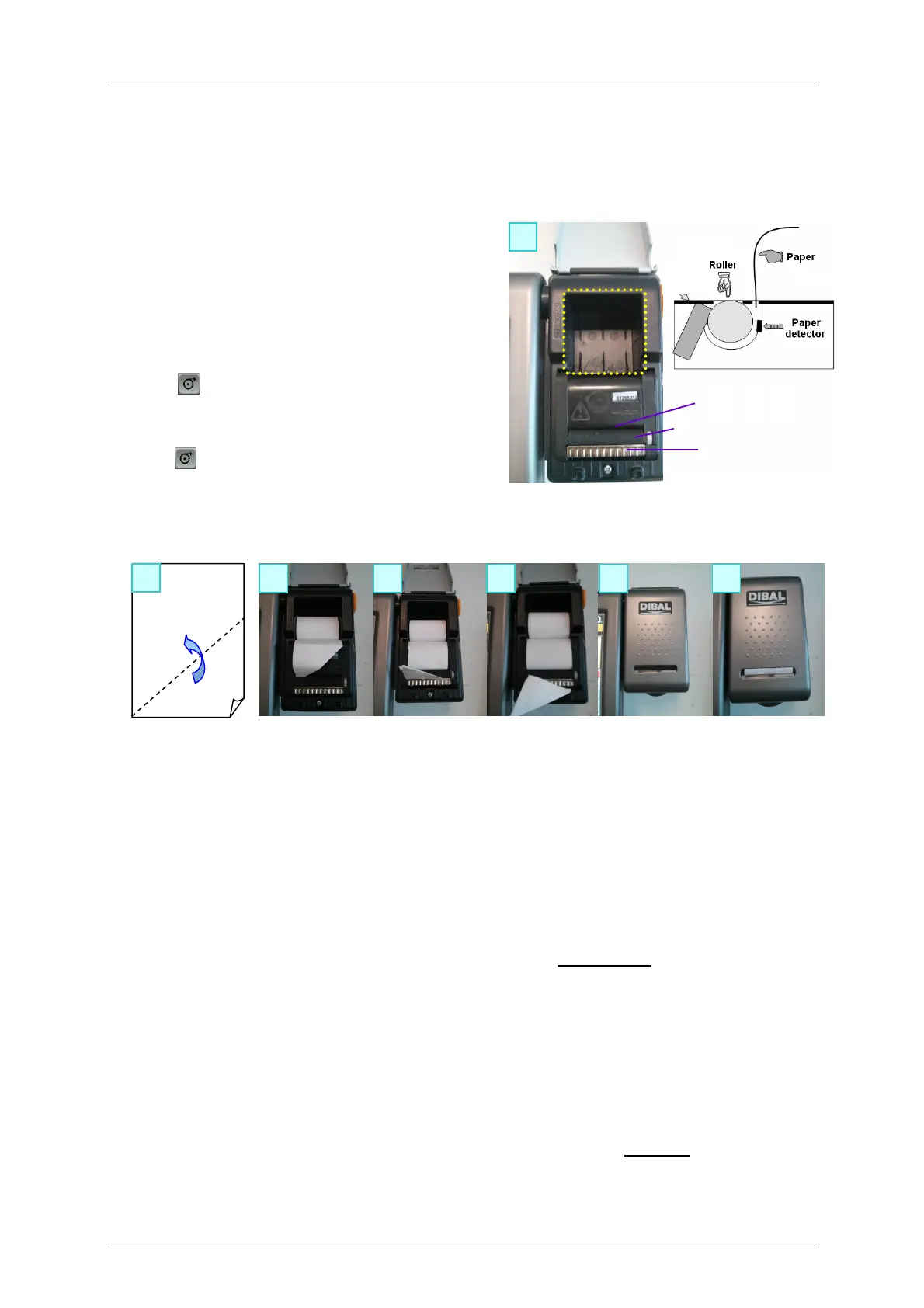

6.2. PAPER CHANGE
6.2.1.Paper change in ticket printer
To change the paper in the tickets printer, proceed as follows:
1. Open the new reel of paper and remove the part
containing glue.
2. Open the cover. Remove the remains of the paper
and the reel holder.
3. Bend the paper at 45º. Insert the paper in the slot.
Be careful to insert it in the correct slot. Otherwise,
the machine will not be able to detect the paper.
4. Press until the paper comes out on the other
side of the holder.
5. Slip the paper through the slot of the lid.
6. Close the cover.
7. Press until you see the paper.
6.2.2.Change of paper in the labeler
6.2.2.1.Double Body Model
The scale is fitted with a cassette system to facilitate the job of changing the paper in the labeling
machine.
1. Open the front drawer of the machine by pressing the button located on the left hand side of the
machine.
2. You will then see three blue levers. Turn the lever on the right anti-clockwise to release the cartridge.
3. Remove the cartridge roll to change the paper.
Having removed the cartridge, you must open the other two levers in order to remove the old paper holder
and remove the remaining cardboard.
4. Put the new reel of labels in its place within the cartridge and slip the paper through as shown in the
photograph. Be careful to place the paper on top of the label holder and to line it up with the paper
guide.
Close the two levers we opened after the third step.
5. Last of all, place the cartridge in the scale and turn the lever on the right clockwise.
Thermal
Head
Paper
6
7
5
4
3
3
Paper
holding
area
Paper input slot
Roll
Thermal Head
2
Thermal
head
