OPERATOR’S MANUAL

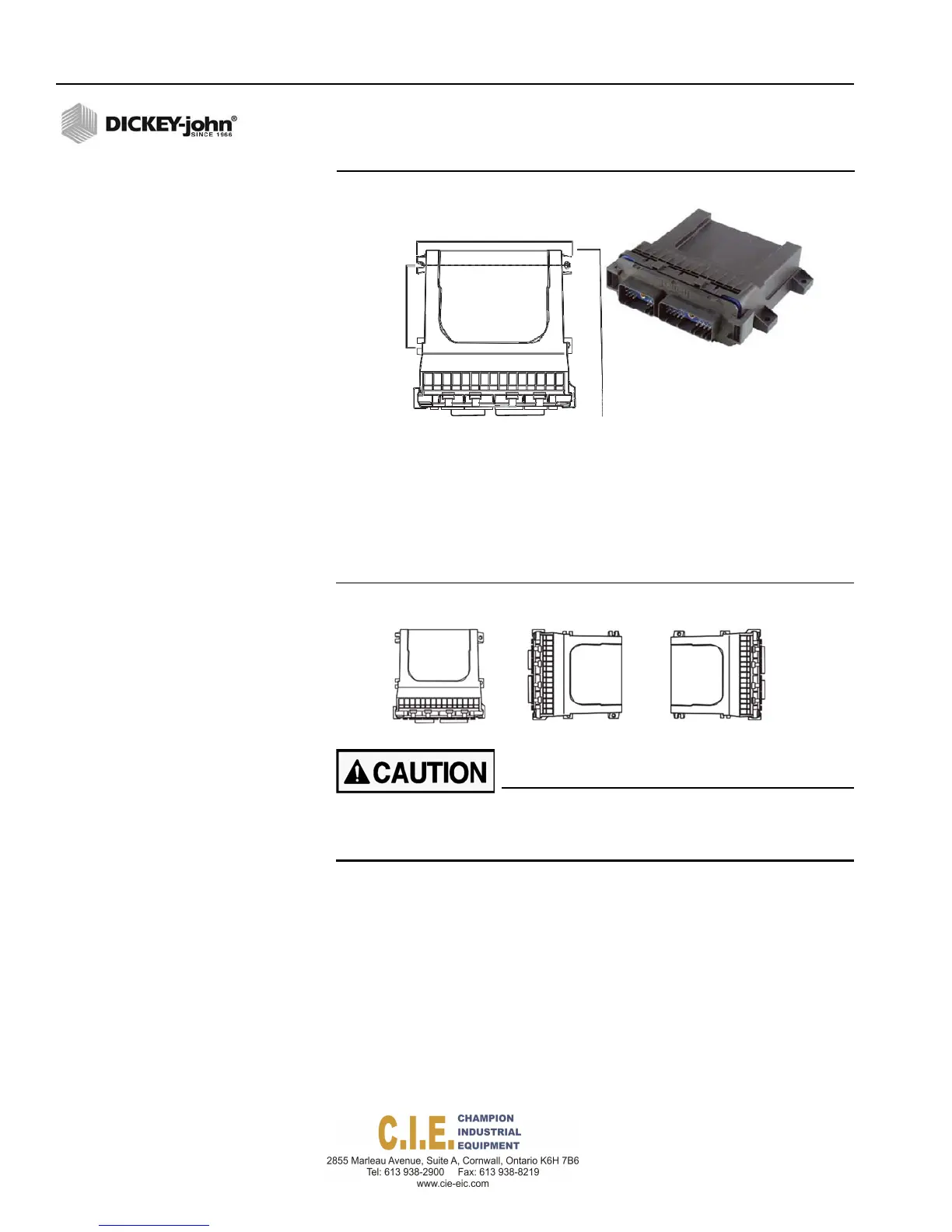

Figure 6
Rate Control Module
3.93”
IMPORTANT: Do not use the enclosure as a guide when drilling. Do
not overtighten nuts as this may damage the mounting
tabs of the enclosure.
The module can be mounted in any of the following orientations:
Figure 7
Acceptable Orientation
PREFERRED
ACCEPTABLE
ACCEPTABLE
Do not install the module in any orientation other than shown in
(Figure 7). The connection wires must not be mounted upward as
moisture can collect inside the unit and damage the circuits.
4.
Mount with the label side of module facing out. Do not mount with the
connector facing up (see Caution).
Connect any additional adapter harnesses to the module harness.
The Rate Control Module harness can accept an extension harnesses or
the output harness.
