Static routes
Digi TransPort User Guide 355
Static routes
The static routing web pages and command line parameters described below control the static
routing table used by the router. These allow the setting up of static IP routes for particular IP
subnets, networks or addresses.

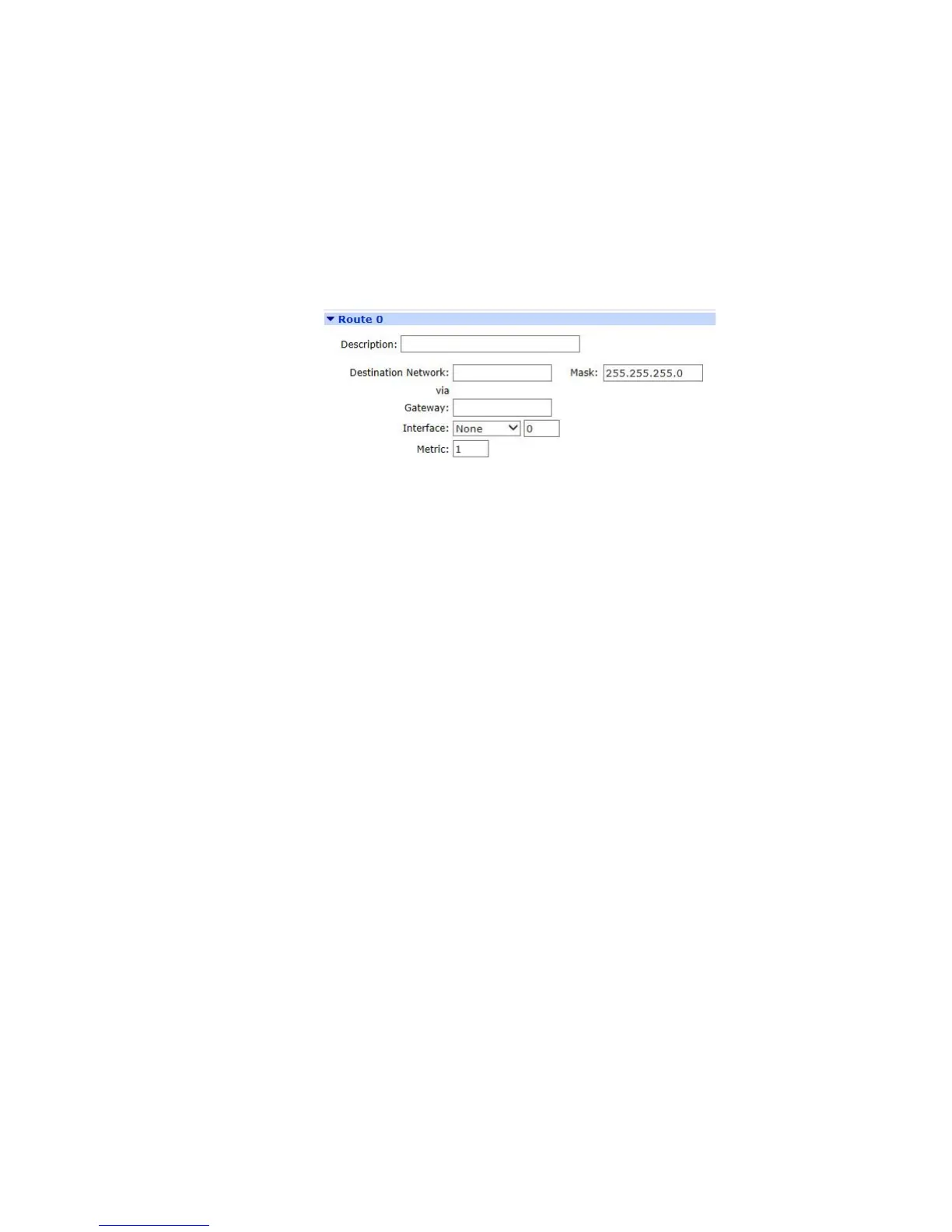

Route n parameters
Each of the static route instances has its own configuration page. These are described below.
Description
A memorable name for the route to be assigned.
Destination Network a.b.c.d
The IP address of the destination subnet, network or IP address for the route. If the router
receives a packet with a destination IP address that matches the Destination Network/Mask
combination it will route the packet through the interface specified below.
Mask a.b.c.d
The network mask that is used in conjunction with the above destination network address to
specify the.
Gateway a.b.c.d
Used to override the default gateway IP address configured for the Ethernet interfaces.
Packets matching the route will use the gateway address specified in the route rather than the
address specified on the Ethernet interface configuration page. This parameter does not
apply to routes using PPP interfaces.
Interface x,y
The interface used to route the packets is selected from the drop-down list and the interface
instance number is entered into the adjacent text box. The available options are:
•None
•PPP
•Ethernet
• Tunnel
