IPsec parameters
Digi TransPort User Guide 421
IKE parameters
The Configuration > Network > Virtual Private Networking (VPN) > IPsec > IKE folder opens
to list configuration pages for IKE 0 and IKE 1 with a separate page for IKE Responder. The IKE 0
instance can be used as an IKE initiator or as an IKE responder, while IKE 1 can only be used as an
initiator. The IKE 0 and IKE 1 pages are used to set up the IKE 0 and IKE 1 initiator parameters as
required. The IKE Responder page is used to set up the responder parameters for IKE 0.

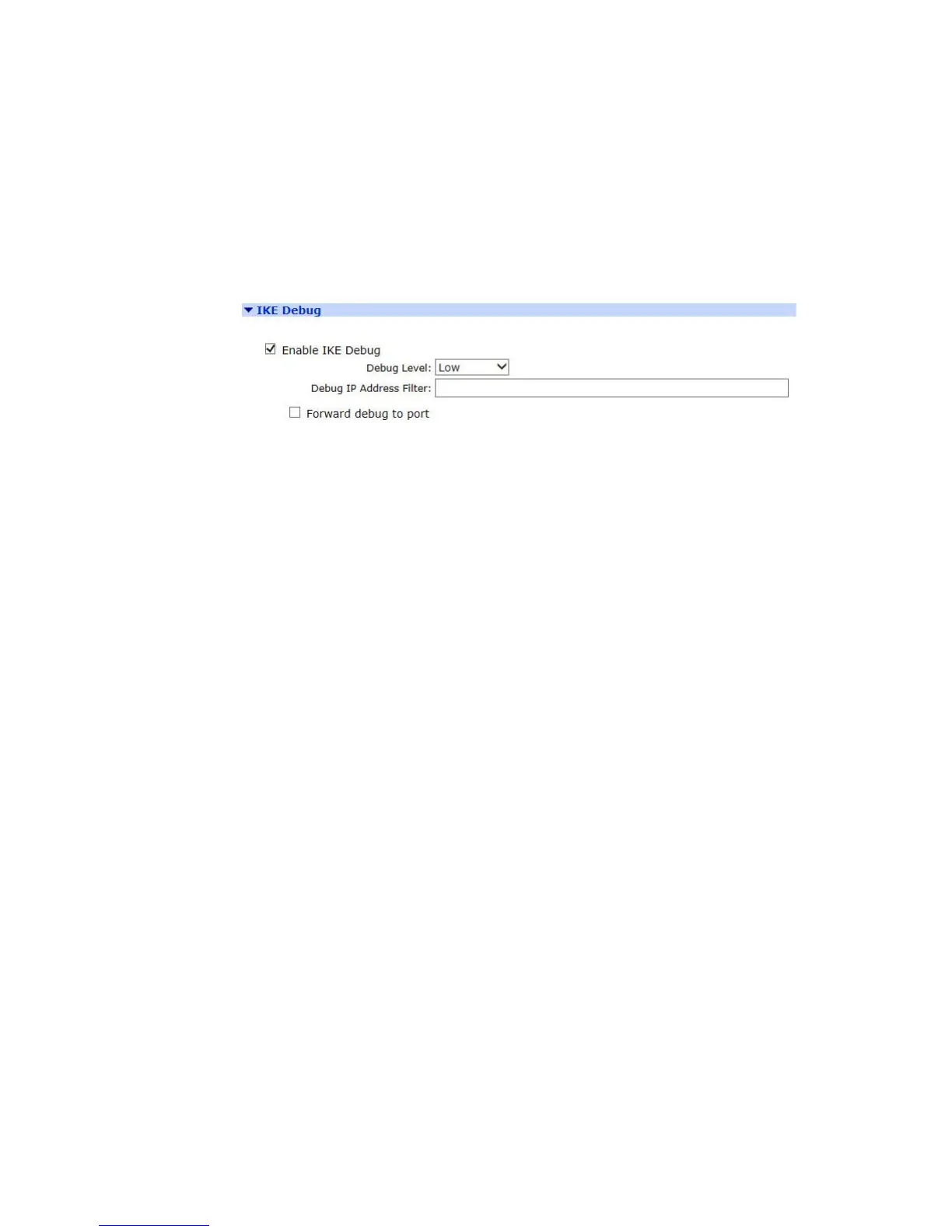

IKE Debug parameters
Enable IKE Debug
Enables IKE debugging to be displayed on the debug port.
Debug Level
Sets the level of IKE debugging. The options are:
•Low
•Medium
•High
•Very High
Debug IP Address Filter
Used to filter out IKE packets with particular source or destination IP addresses. The format of
this parameter is a comma-separated list of IP addresses. For example, to exclude the capture
of IKE traffic from IP hosts 10.1.2.3 and 10.2.2.2, enter 10.1.2.3,10.2.2.2 for this parameter.
Conversely, you may wish to only capture traffic to and from particular IP hosts. To do this, use
a tilde () symbol before the list of IP addresses. For example, to only capture packets to and
from IP host 192.168.47.1, enter ~192.168.47.1 for this parameter.
Forward debug to port
When enabled, the IKE debug is sent to debug serial port.
