| Interface Configuration
Port Configuration
– 149 –

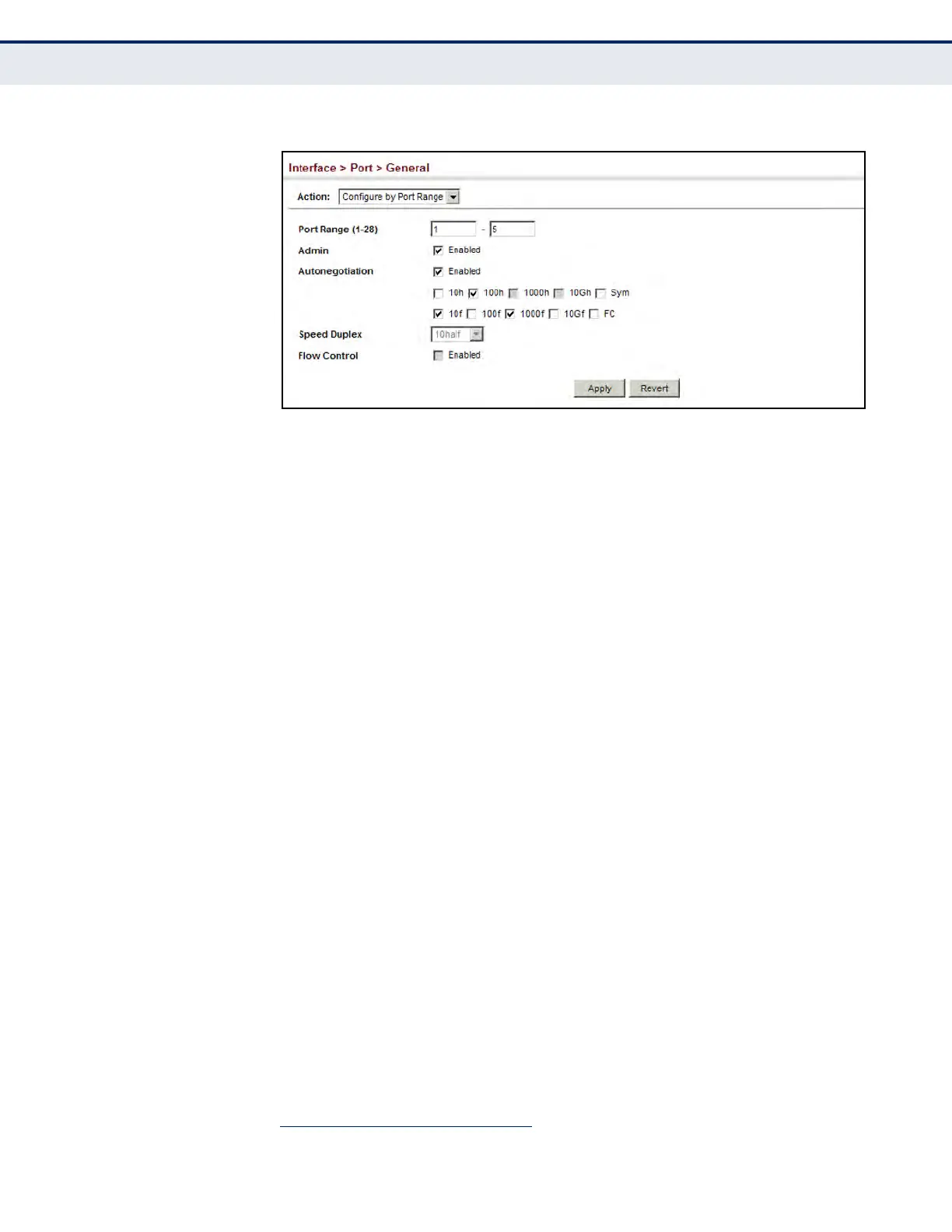

Figure 30: Configuring Connections by Port Range
DISPLAYING
CONNECTION STATUS
Use the Interface > Port > General (Show Information) page to display the
current connection status, including link state, speed/duplex mode, flow
control, and auto-negotiation.
CLI REFERENCES
u "show interfaces status" on page 973
PARAMETERS
These parameters are displayed:
u Port – Port identifier.
u Type – Indicates the port type. (1000BASE-T, 1000BASE SFP
3
,
10GBASE SFP+)
u Name – Interface label.
u Admin – Shows if the port is enabled or disabled.
u Oper Status – Indicates if the link is Up or Down.
u Media Type – Only applies to ports 23-24 on DG-GS4528FSE.
u Autonegotiation – Shows if auto-negotiation is enabled or disabled.
u Oper Speed Duplex – Shows the current speed and duplex mode.
u Oper Flow Control – Shows the flow control type used.
3. 1000BASE SFP port is only applicable for DG-GS4528FSE
