| Multicast Filtering
Multicast VLAN Registration for IPv4
– 572 –

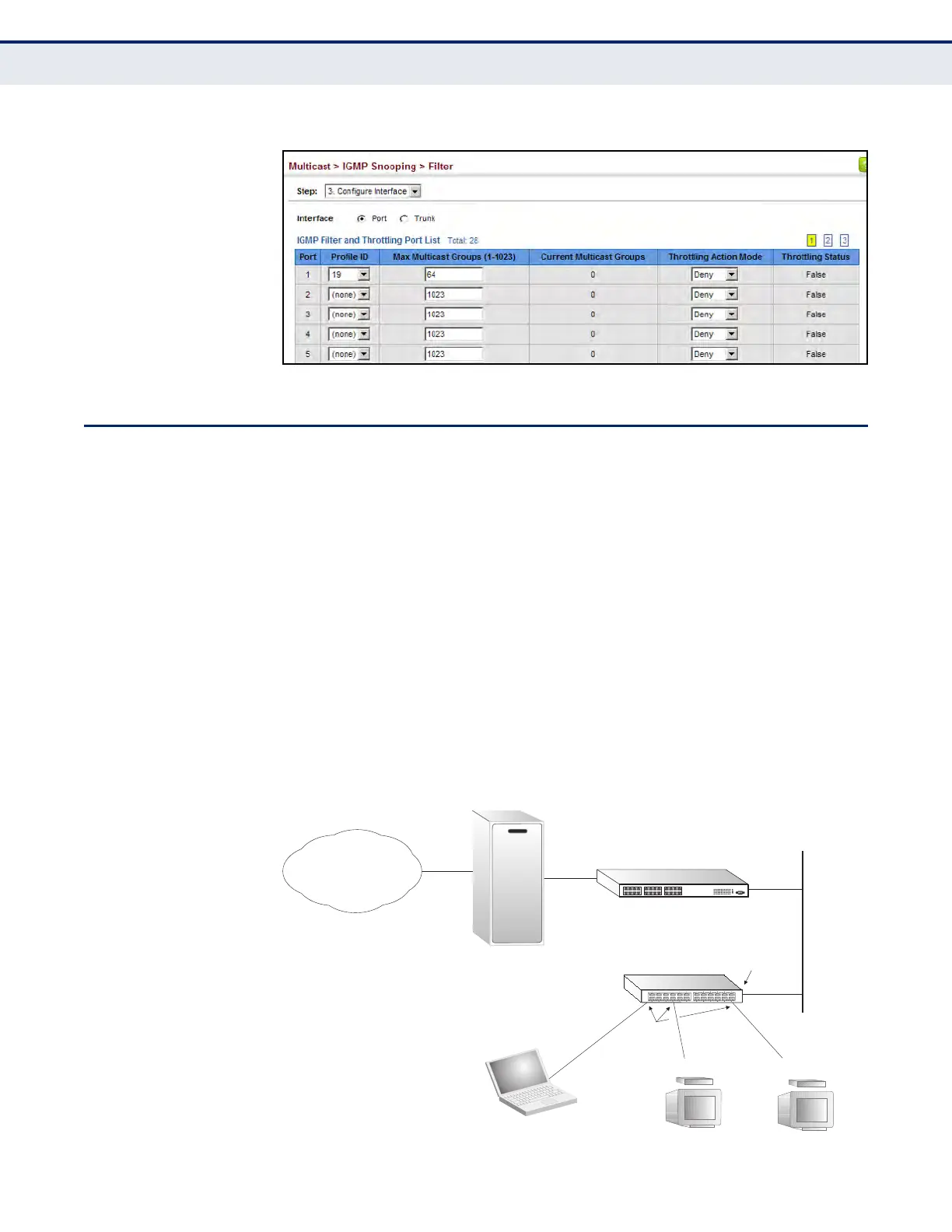

Figure 339: Configuring IGMP Filtering and Throttling Interface Settings
MULTICAST VLAN REGISTRATION FOR IPV4
Multicast VLAN Registration (MVR) is a protocol that controls access to a
single network-wide VLAN most commonly used for transmitting multicast
traffic (such as television channels or video-on-demand) across a service
provider’s network. Any multicast traffic entering an MVR VLAN is sent to
all attached subscribers. This protocol can significantly reduce to
processing overhead required to dynamically monitor and establish the
distribution tree for a normal multicast VLAN. This makes it possible to
support common multicast services over a wide part of the network
without having to use any multicast routing protocol.
MVR maintains the user isolation and data security provided by VLAN
segregation by passing only multicast traffic into other VLANs to which the
subscribers belong. Even though common multicast streams are passed
onto different VLAN groups from the MVR VLAN, users in different IEEE
802.1Q or private VLANs cannot exchange any information (except through
upper-level routing services).
Figure 340: MVR Concept
Multicast Router
Layer 2 Switch
Multicast Server
PC
TV
Set-top Box
TV
Set-top Box
Satellite Services
Service
Network
Source
Port
Receiver
Ports
To Next Page
