Procedure

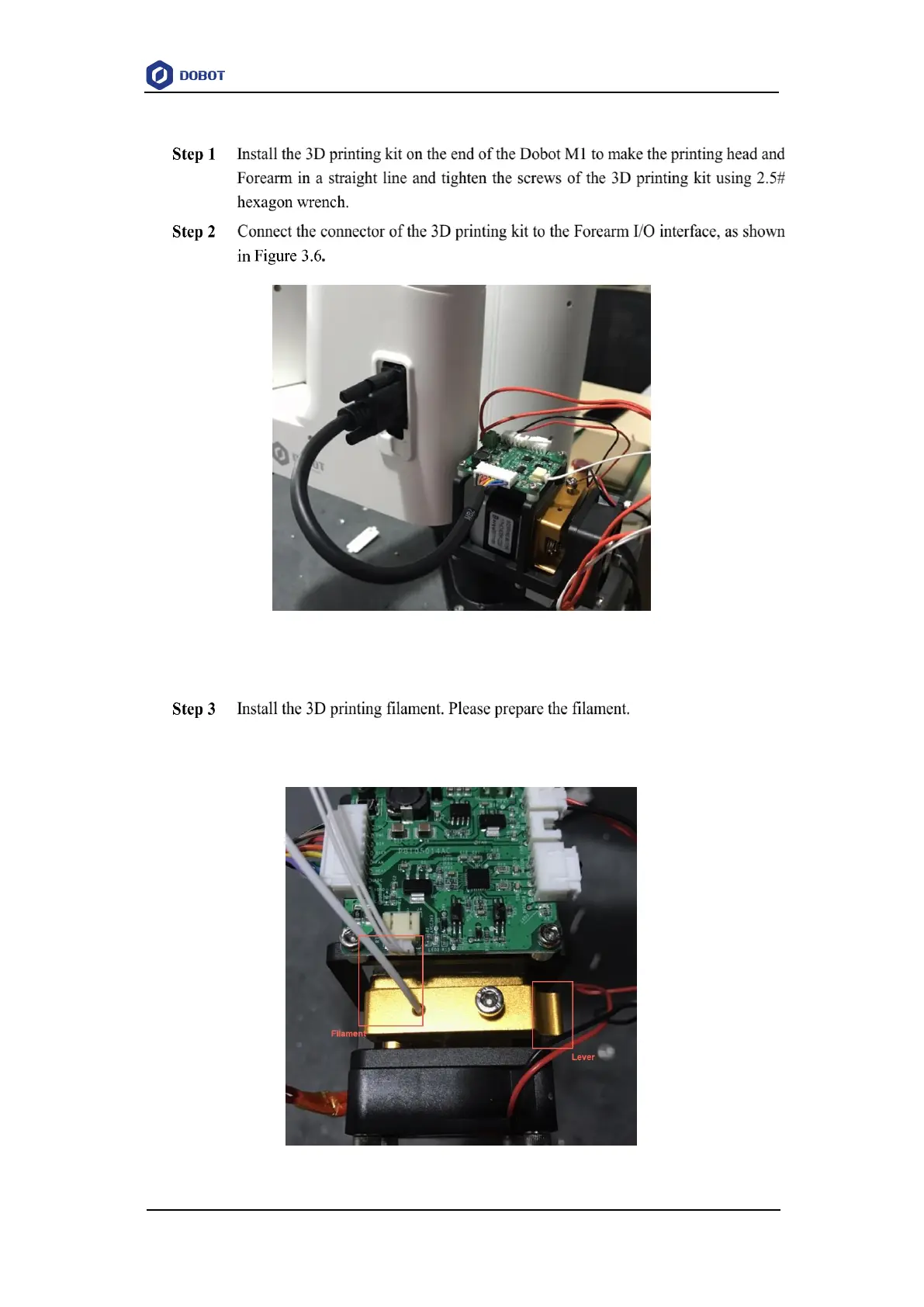

Figure 3.6 Connect to Forearm I/O interface
Press down the lever on the extruder by hand, and push down the filament to the
bottom via a pulley, as shown in Figure 3.7 and Figure 3.8.
Figure 3.7 Push down the filament (1)
