PRINTER DESCRIPTION
27080 Issue 1 September 98 6--17

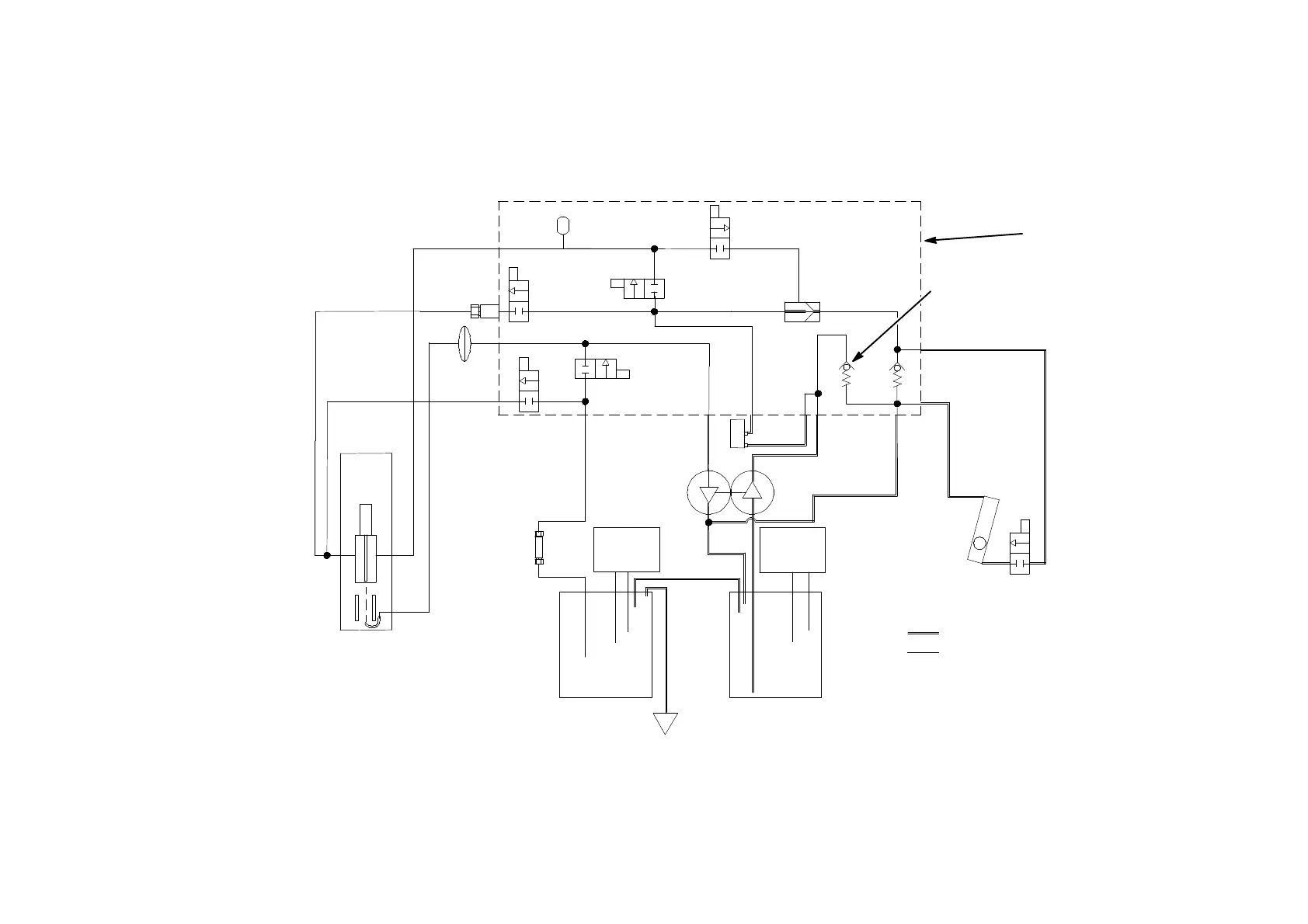

Ink System -- Circuit Diagram
Pressure
Transducer
Bleed
Valve
Jet
Pump
Main
Filter
Over--pressure
PRV (100psi)
Viscometer
Visc.
Valve
1psi
INK
Wash
Valve
Feed
Valve
Make--u
p Valve
Flush
Valve
Gutter
Filter
Feed
Filter
Make--
up
Filter
Printhead
Nozzle
Valve
Bleed
MAKE--
UP
Vent
MG027_4
Pump
1/4”Tube
1/8”Tube
Ink
Management
Block
