OPTIONS
10--6 27080 Issue 1 Sept 98

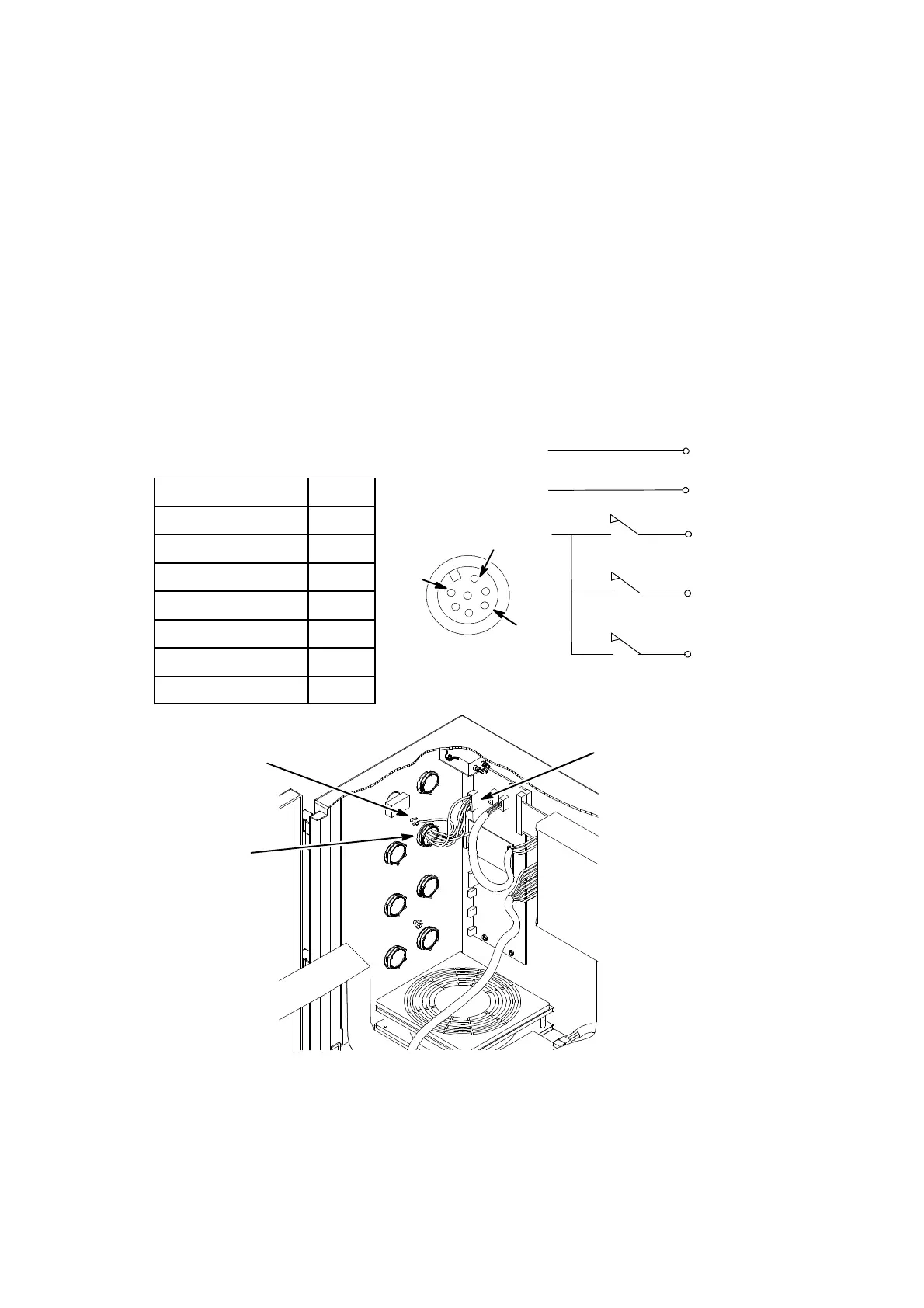

CABLE ASSEMBLY BEACON PORT
This cable is used in conjunction with the beacon assembly and is
installed as follows:
WARNING: Power to the printer must be removed.
CAUTION Anti--static precautions must be taken.
(1) Remove the blanking plug from the printer (for position see the
diagram on page 10--3).
(2) Feed the6wayconnector throughthe hole into thecabinet. Secure
the round 7way connector in the hole and tighten the nut.
(3) Plug the 6way connector into PL6 on the External Interface PCB.
(4) Fit the earth lead to the earth point.
Beacon Connections
STATUS PIN
Red -- Neutral 1
Live 2
Amber -- Neutral 3
Live 4
Green -- Neutral 5
Live 6
Earth/Ground 7
Earth Point
Beacon
Connector
PL6
Cable Assembly Beacon Port
MG141_1
Spares List --Beacon Port Kit -- Part Number 37737
Plug IP68 7Way Cable Mounting -- 13499
Red
Amber/Blue
Green
Beacon Switch Connections and Circuit
L
N
E/Gnd
1
3
4
3
2,4,6
1
7
5
External View
