OPTIONS
27080 Issue 1 Sept 98 10--23
PHOTOCELL ASSEMBLY PROXIMITY
This detector is fitted on the side of the product line and set up so that
a light beam from the detector is reflected back by the product itself.
The detector senses the reflected beam and printing starts when
reflection either begins or ends. The reflection may be from the body
of the product or from a light coloured marking on a darker
background on the product.

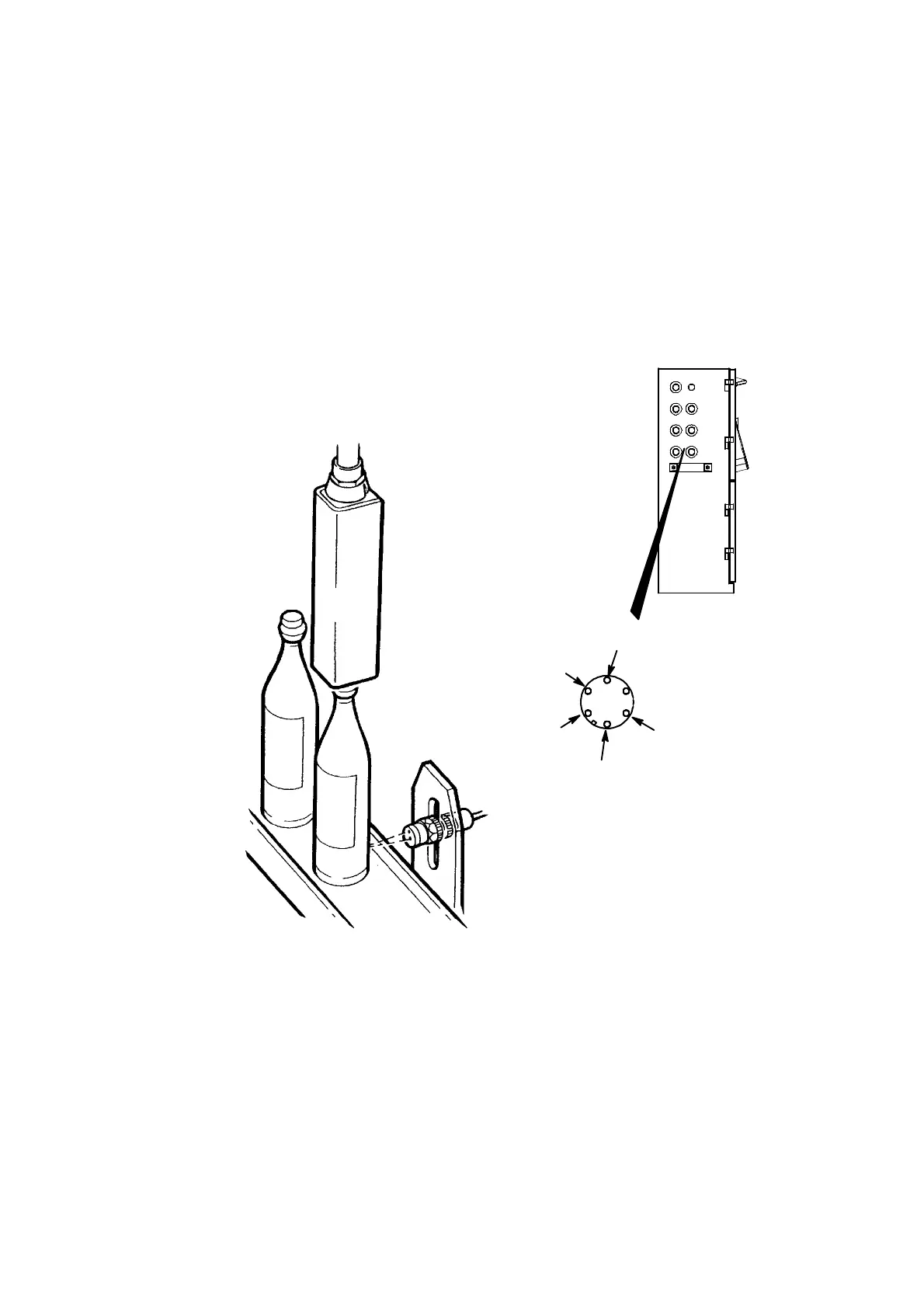

Connection details are given in the diagram.
Photocell Assembly Proximity
TP7140_1
Cabinet Connectors
(External View)
MG001--1
Pin 1 = 0V
Pin 3 =
Product
Detector
Pin 4 =
+12V
Pin 2 =
Encoder
Pin 5 =
Screen
MG164_1
Spare List -- Photocell Assembly Proximity -- 37761
Five pin AXR to IP68 Plug Adaptor Cable (for use with
existing photocells/shaft encoders) -- 37771
