Domino A-SERIES User Manual

APPENDIX A : INSTALLATION
A--16 27080 Issue 1 Sept 98
values given above. Print quality will be maintained if the distance is
between the limits given, but will reduce outside these limits.
External Air Supply (Print Head) (A300/A200 only)
WARNING: Ensure the external air supply is connected to the
new pipe fitting. Do not connect the air supply to
the ink circuit vent.
If required, the positive air to the print head can be supplied from an
external source. The air supply must be clean and dry. (Domino can
provide advice on suitable air filters.) Pressure must not exceed 1bar
(15psi) and should preferably be adjustable. The air supply is
connected to the connector on the side of the cabinet.
The air pressure should be setto the minimum valuethat achievesthe
requirement, i.e. exclusion of contamination or fumes,but whichdoes
Minimum Bend
Radius
170 (6.7”)
280(11.02”
73
(2.87”)
42(1.65")
A
20(0.79”)
20
(1.18”)
30
(0.79”)
See
text
Product
Movement
B
(0.79”)
20
5
50(1.97”)
(0.2”)
60(2.36”)
A
B
73(2.87”)
47(1.85”)
20(0.79”)

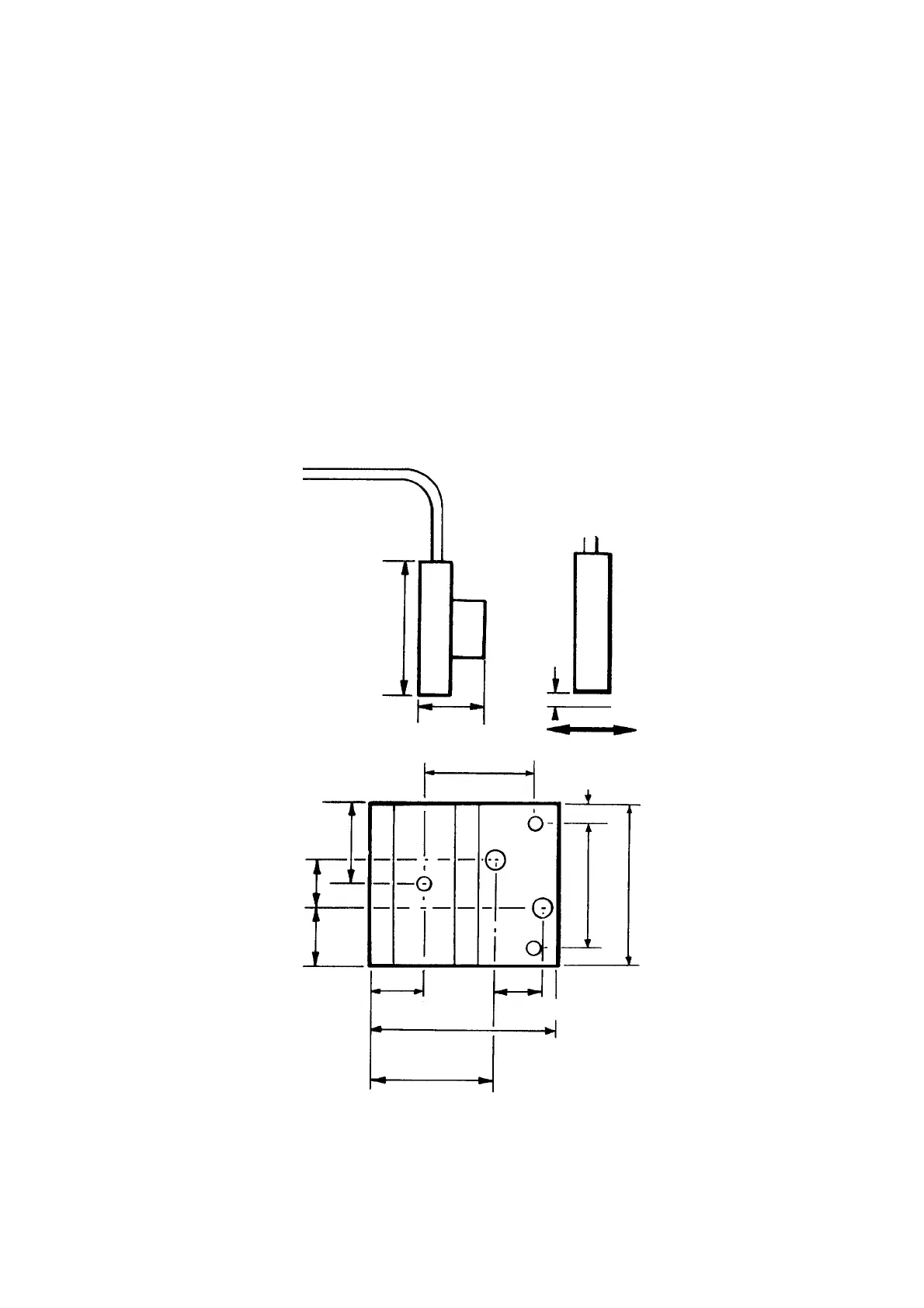

Print Head and Bracket Installation Dimensions
TP7150--1
Note: All dimensions
in mm (inches).
