APPENDIX B : COMPRESSOR DRIVEN AIRDRYER
20950 Issue 1 April 98 B--31
PCB Mk 2 settings (see pg. B--41) are:
Switch SW1 should be set to Normal
Link LK1 should be set to Normal
Link LK2 should normally be set to position 3--4 (1500
secs).
SW1 Operating Mode
LED2 Humidity Fault
LED1 Pressure Fault
LED3 Peltier On
LK1 Normal/Test
LK2 Solenoid Opening Interval
Fuse F2

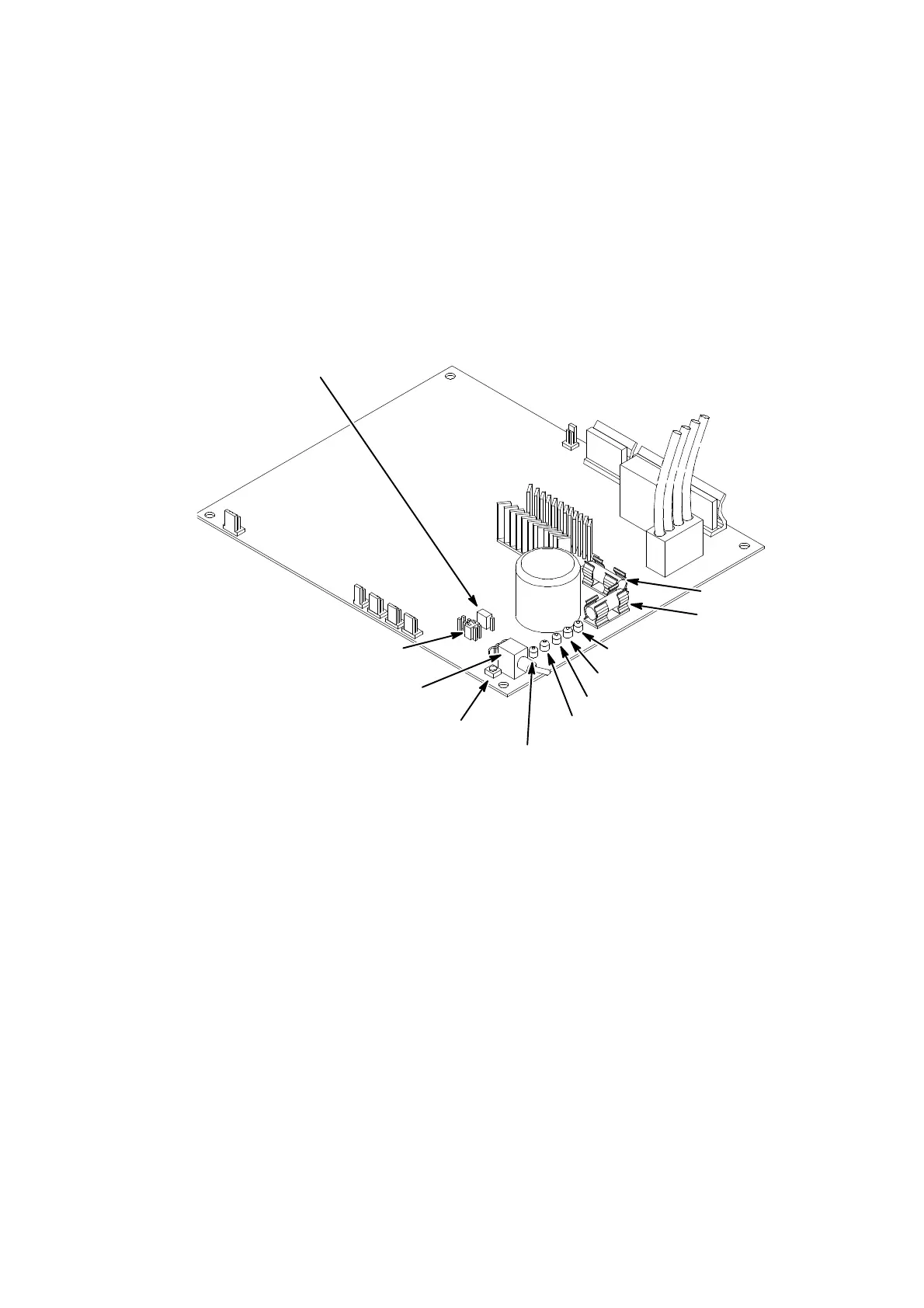

Airdryer PCB Issue 2
AD011--2
LED4 Pressure Fault (History)
LED5 Humidity Fault (History)
Fuse F1
SW2 Reset
