Available settings are explained as follows:
Item Description
Location (Profile
Name)
Type a name (e.g., MKT_car) for the AP map profile.
Upload Map
Click the Select button to choose an image file (only JPG and
PNG are supported) for floor plan.
Next
Click it to go to the next configuration page.
Cancel
Click it to cancel the configuration.

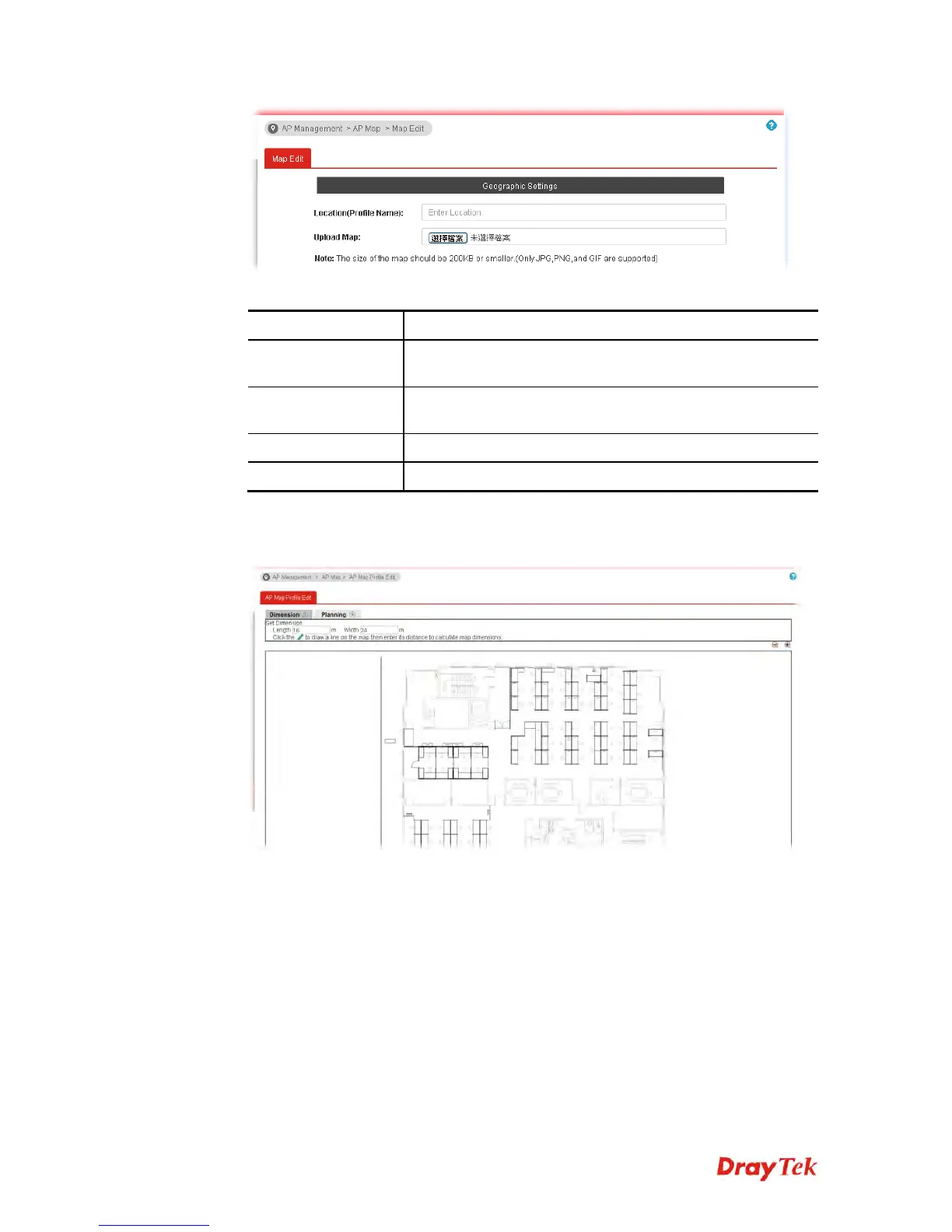

2. Click Next. The configuration page with floor plan will be shown on the web page. Set
the dimensions by typing suitable numbers (unit: meter) for the length and width. Or
use the ruler icon to draw a line on the map to calculate the dimensions.
