Vigor3900 Series User’s Guide
486

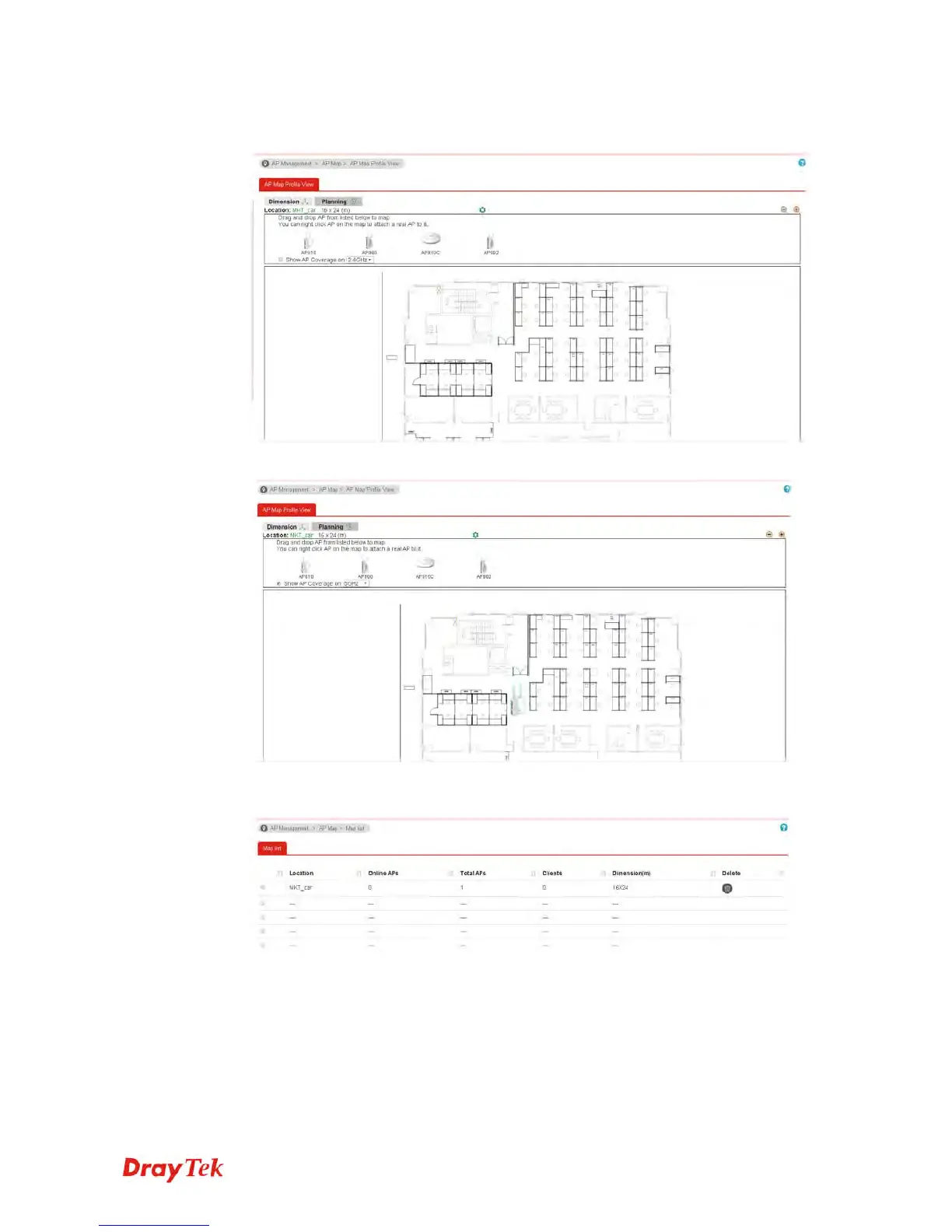

3. Click the Planning tab. Drag and drop an AP icon from Compatible AP List to the
map on the left side.
4. Check the box of Show AP Coverage on 5GHz/2.4 to display the signal coverage area.
5. Adjust the AP on the map to find out which place can have the best wireless coverage.
At last, click Save.
