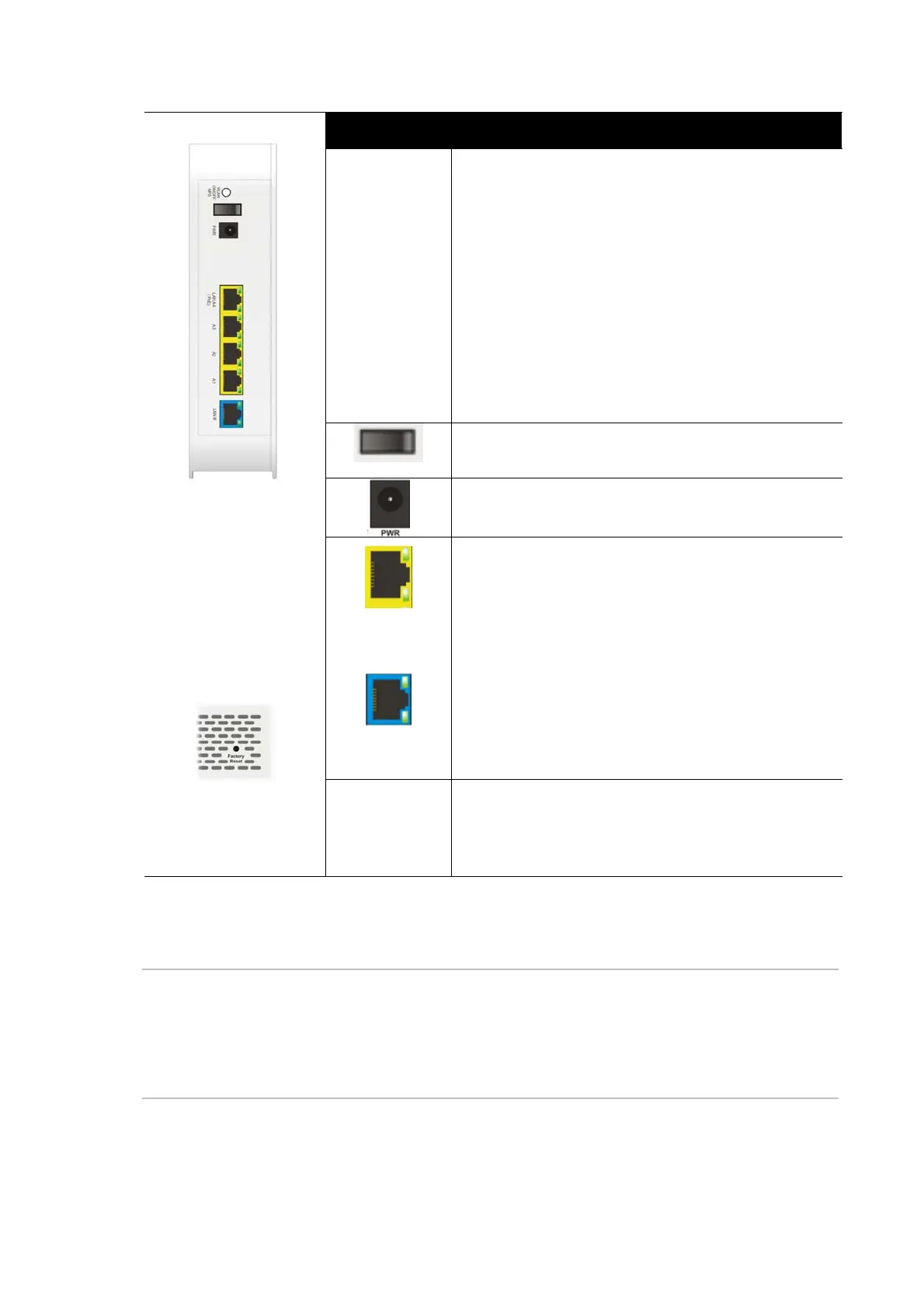

Interface Description
WLAN
ON/OFF
WPS
Wireless band will be switched /changed according to
the button pressed and released. For example,
 2.4G (On) and 5G (On) – in default.
 2.4G (Off) and 5G (On) – pressed and released the
button once.
 2.4G (On) and 5G (Off) – pressed and released the
button twice.
 2.4G (Off) and 5G (Off) – pressed and released the
button three times.
WPS - When WPS function is enabled by web user
interface, press this button for more than 2 seconds. The
router will wait for any wireless client connecting to it
through WPS.
Power switch.
PWR: Connecter for a power adapter.
LAN A4-A1
A4 (PoE)
LAN B
Connectors for local networked devices.
 Left LED on - The port is connected.
 Left LED off - The port is disconnected.
 Left LED Blinking - The data is transmitting.
 Right LED on -The port is connected with
1000Mbps.
 Right LED off - The port is connected with 10/100
Mbps.
In which, LAN A4 is used for PoE connection (for indoor
use).
Factory
Reset
Restore the default settings.
Usage: Turn on the router. Press the button and keep for
more than 10 seconds. Then the router will restart with
the factory default configuration.

Note:
For the sake of security, make the accessory kit away from children.

Draytek VigorAP 906 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Number of users	254 user(s)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	2402 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Placement	Ceiling, Table, Wall
Product color	White
Security algorithms	WEP, WPA, WPA2, WPA3, WPS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	5
Antenna type	External
Antenna direction type	Omni-directional
Antenna gain level (max)	2.5 dBi
Input current	0.4 A
Output current	1.5 A
AC input voltage	48 - 56 V
DC voltage range	12 V
Power consumption (max)	17.3 W
Sustainability certificates	CE
