Draytek VigorAP 906 User Manual

109
III-3 Mobile Device Management
Such a feature can control/manage the mobile devices accessing the wireless network of VigorAP.
VigorAP offers wireless LAN service for mobile device(s), PC users, MAC users, or other users
according to the policy selected.

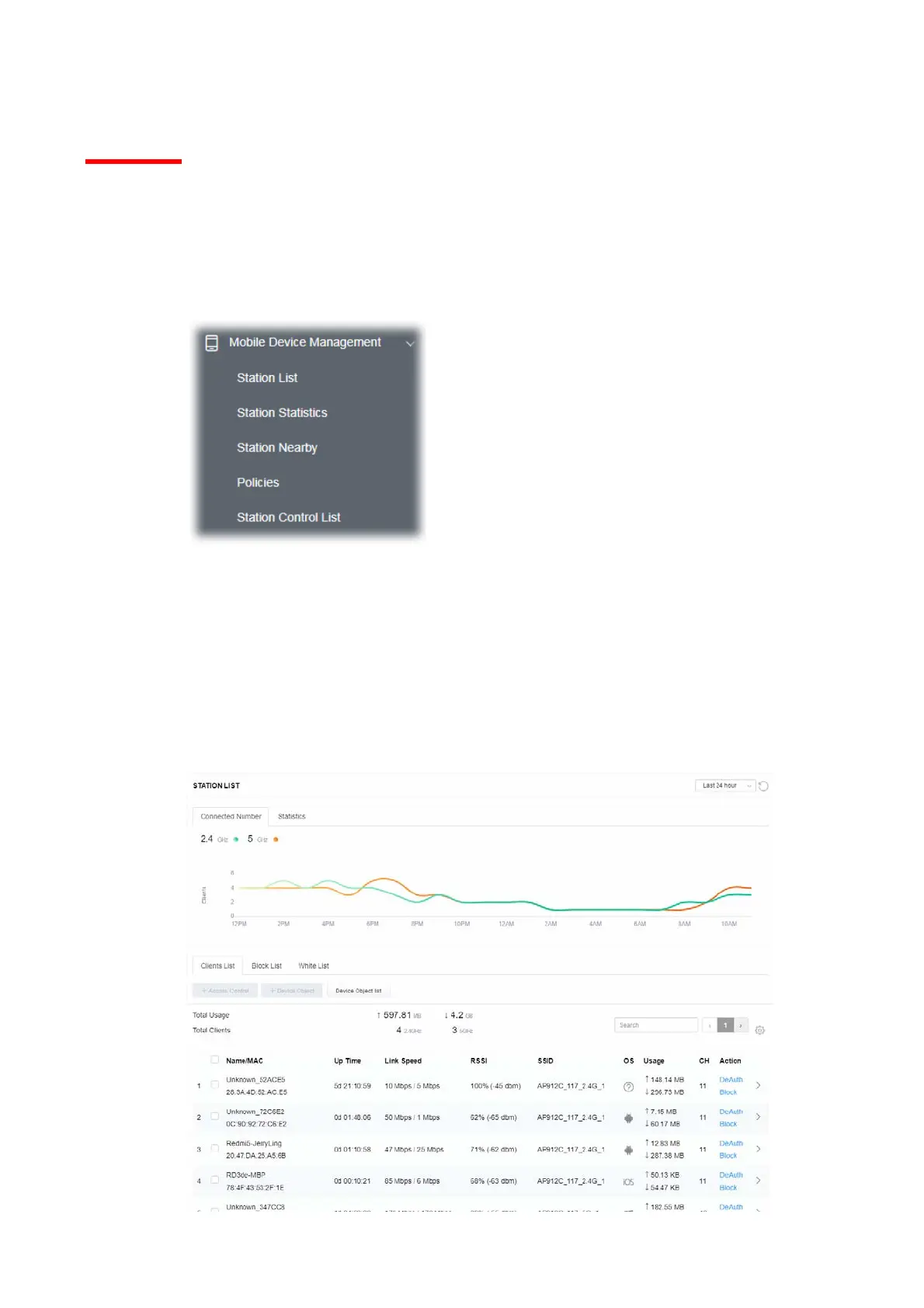

Below shows the menu items for Mobile Device Management (MDM).
III-3-1 Station List
Station List provides the information related to the number of clients connecting to VigorAP, used
bandwidth, and the statistics of the AP device OS. Besides, users can create access control policies,
device objects and set black & white lists.
III-3-1-1 Connected Number
This page lists the graph for the number of wireless stations connected to this Access Point with
different time phases.

Draytek VigorAP 906 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Number of users	254 user(s)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	2402 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Placement	Ceiling, Table, Wall
Product color	White
Security algorithms	WEP, WPA, WPA2, WPA3, WPS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	5
Antenna type	External
Antenna direction type	Omni-directional
Antenna gain level (max)	2.5 dBi
Input current	0.4 A
Output current	1.5 A
AC input voltage	48 - 56 V
DC voltage range	12 V
Power consumption (max)	17.3 W
Sustainability certificates	CE
