II-4-2 Mesh Status

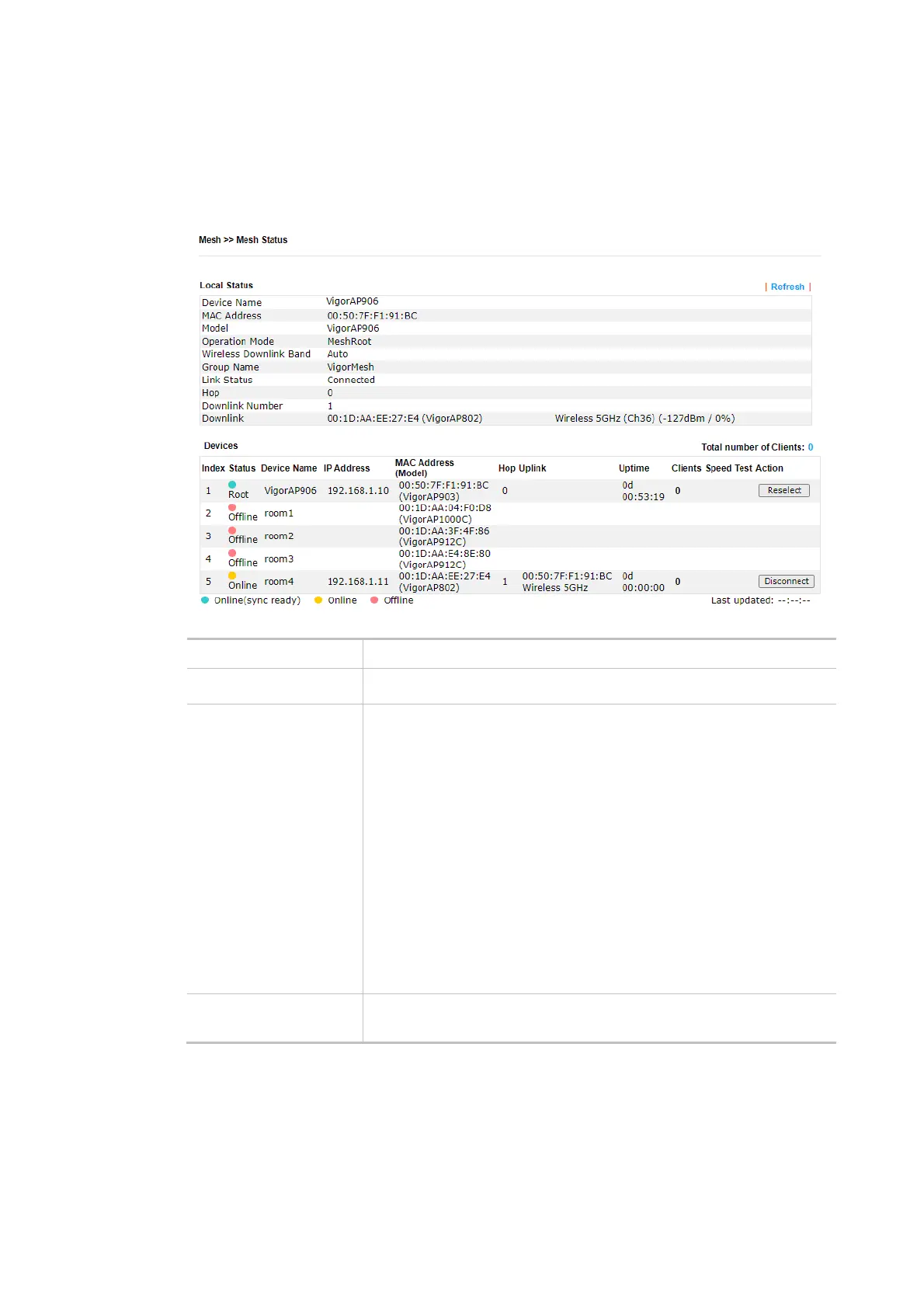

This page shows that one Mesh Group can contain up to 8 devices. A device with hop 0 indicates
that it is one special Ethernet Backhaul. It means this node will use an Ethernet cable to join the
mesh group while others use the wireless link.
Item Description
Local Status Display general information for such VigorAP.
Devices Display detailed information for this VigorAP (as mesh root) and mesh
node(s) in the group.
Index – Display the number of the device within a mesh group.
Status – Display the role of the device within a mesh group.
Device Name – Display the name of the device (for identification).
IP Address – Display the IP address of the device.
MAC Address – Display the MAC address of the device.
Hop – Display the level of the devices within a mesh group. “0” means
the access point is connected to a device by using an Ethernet cable
(wired). “1” to “3” means the level of the access point within a mesh
group and it connects to other access points via a wireless link.
Uplink – Display the MAC address of the device that the AP connects
to.
Total number of
Clients
Display the station list of all mesh devices.

Draytek VigorAP 906 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Number of users	254 user(s)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	2402 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Placement	Ceiling, Table, Wall
Product color	White
Security algorithms	WEP, WPA, WPA2, WPA3, WPS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	5
Antenna type	External
Antenna direction type	Omni-directional
Antenna gain level (max)	2.5 dBi
Input current	0.4 A
Output current	1.5 A
AC input voltage	48 - 56 V
DC voltage range	12 V
Power consumption (max)	17.3 W
Sustainability certificates	CE
