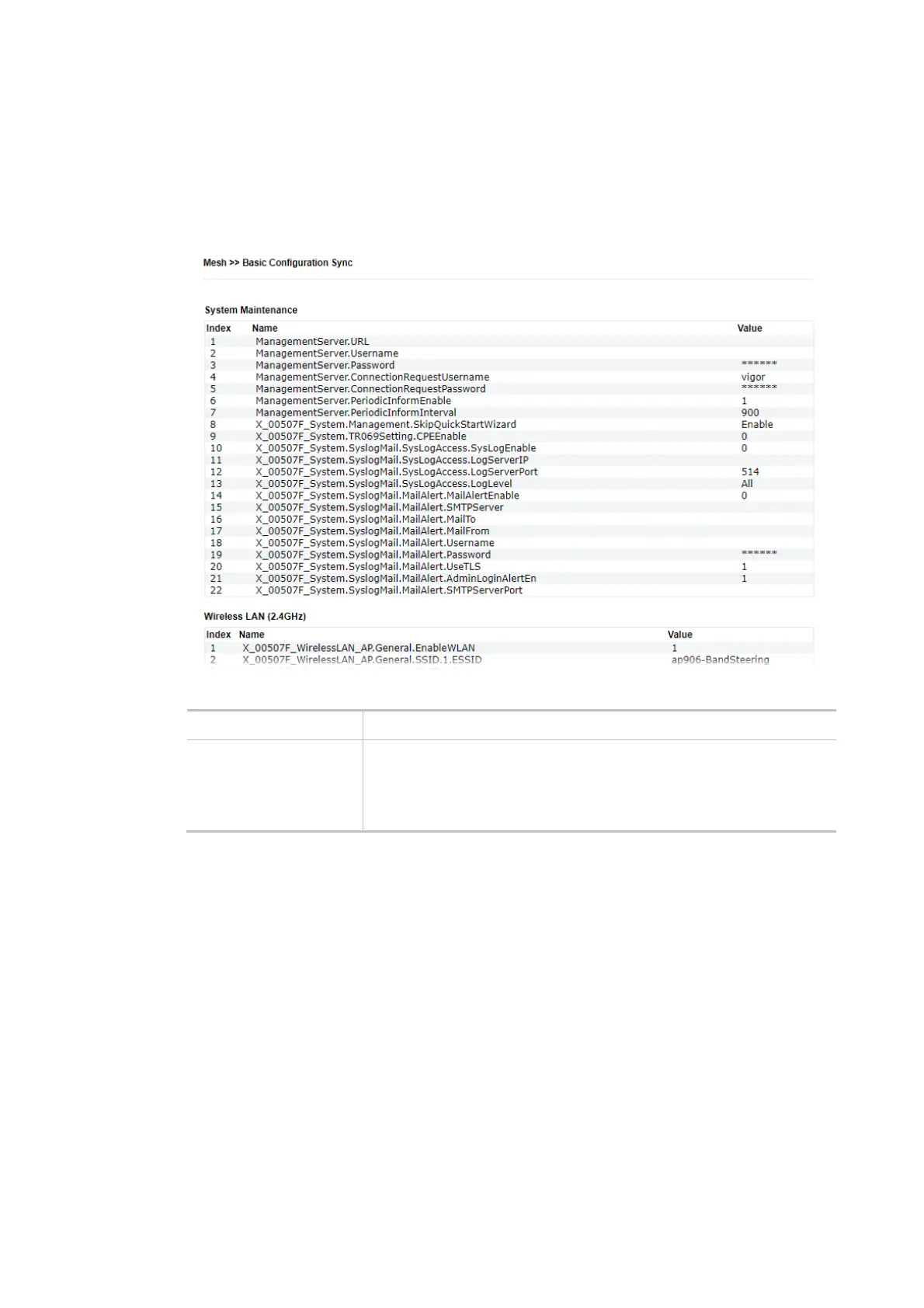

II-4-4 Basic Configuration Sync
If you add one Mesh Node in a mesh group, the Mesh Root will send the basic configuration to the
device. This page could help you to change the Mesh Root settings and deliver the new
configuration of the Mesh Root to all "connected" Mesh Nodes.
Available settings are explained as follows:
Item Description
System Maintenance /
Wireless LAN (2.4Hz) /
Wireless LAN (5GHz)
Check the item(s) you want to make configuration sync.
Apply – Click it to apply the settings configured by such AP to all
connected mesh nodes. Note that this button is available only
when such AP is in mesh root mode.
Tips for Mesh Network Setup
 Set up TWO mesh devices with uplink RSSI larger than -65dBm.
 Upgrade the firmware version of Mesh devices through the Mesh link, starting from the mesh
device with less hop number. For example, upgrade the firmware from the root, hop1 Mesh
Node then hop2 Mesh Node, and so on.
 VigorMesh network supports up to 3 hops of mesh devices. However, it is suggested to connect
the mesh group with less than or equals to 2 hops.
For your reference, we make a real mesh environment test and get the following record. (Use
VigorAP APP to do an internet speed test with different hop mesh nodes.)
Internet Download Speed (for root and hop1 ~ hop3):
iPad connects to Root : 80Mbps
iPad connects to hop1 Node : 49Mbps (Uplink RSSI : -55dBm)
iPad connects to hop2 Node : 41Mbps (Uplink RSSI : hop2 -64dBm / hop1 -55dBm)

Draytek VigorAP 906 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Number of users	254 user(s)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	2402 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Placement	Ceiling, Table, Wall
Product color	White
Security algorithms	WEP, WPA, WPA2, WPA3, WPS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	5
Antenna type	External
Antenna direction type	Omni-directional
Antenna gain level (max)	2.5 dBi
Input current	0.4 A
Output current	1.5 A
AC input voltage	48 - 56 V
DC voltage range	12 V
Power consumption (max)	17.3 W
Sustainability certificates	CE
