Draytek VigorAP 906 User Manual

41
(encryption) function of VigorAP 906 is properly configured, you can
see the ‘Yes’ message here.
WPS SSID Display current selected SSID.
WPS Auth Mode Display current authentication mode of the VigorAP 906. Only WPA2
Personal and WPA Personal support WPS.
WPS Encrypt Type Display encryption mode (None, WEP, TKIP, AES, etc.) of VigorAP 906.
Configure via Push
Button
Click Start PBC to invoke the Push-Button style WPS setup procedure.
VigorAP 906 will wait for WPS requests from wireless clients for about
two minutes. Both ACT and 2.4G WLAN LEDs on VigorAP 906 will blink
quickly when WPS is in progress. It will return to normal condition
after two minutes. (You need to set up WPS within two minutes)
Configure via Client
PinCode
Enter the PIN code specified in the wireless client you wish to connect
with and click the Start PIN button. Both ACT and 2.4G WLAN LEDs
on VigorAP 906 will blink quickly when WPS is in progress. It will return
to normal condition after two minutes. (You need to set up WPS
within two minutes).
II-3-5 Advanced Setting

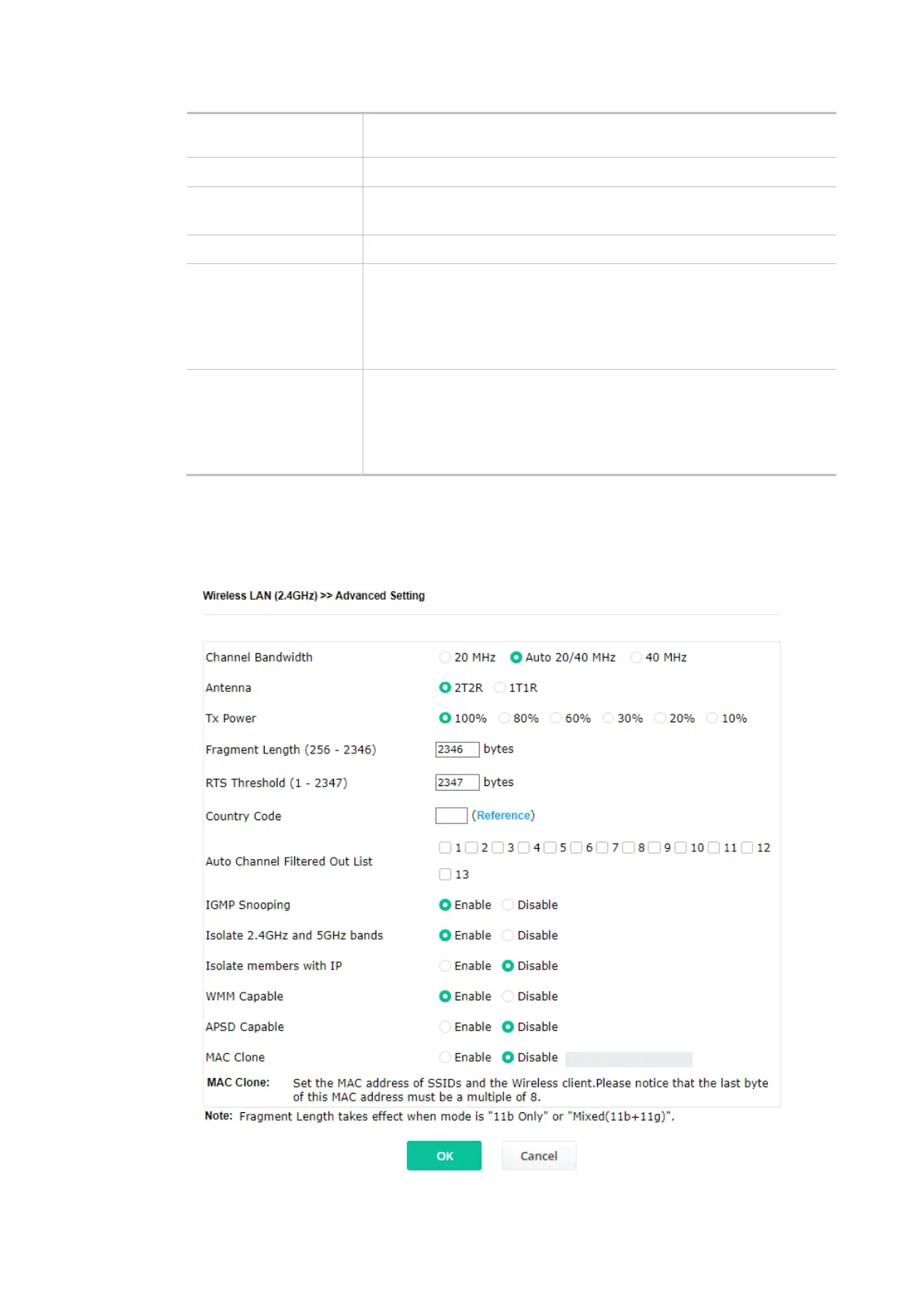

This page is to determine which algorithm will be selected for wireless transmission rate.
Available settings are explained as follows:

Draytek VigorAP 906 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Number of users	254 user(s)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	2402 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Placement	Ceiling, Table, Wall
Product color	White
Security algorithms	WEP, WPA, WPA2, WPA3, WPS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	5
Antenna type	External
Antenna direction type	Omni-directional
Antenna gain level (max)	2.5 dBi
Input current	0.4 A
Output current	1.5 A
AC input voltage	48 - 56 V
DC voltage range	12 V
Power consumption (max)	17.3 W
Sustainability certificates	CE
