Draytek VigorAP 906 User Manual

81
II-5-2 Hotspot Web Portal
The Hotspot Web Portal feature allows you to set up profiles so that LAN users could either be
redirected to specific URLs or be shown messages when they first connect to the Internet through
the router. Users could be required to read and agree to terms and conditions or authenticate
themselves, before gaining access to the Internet. Other potential uses include the serving of
advertisements and promotional materials and the broadcast of public service announcements.

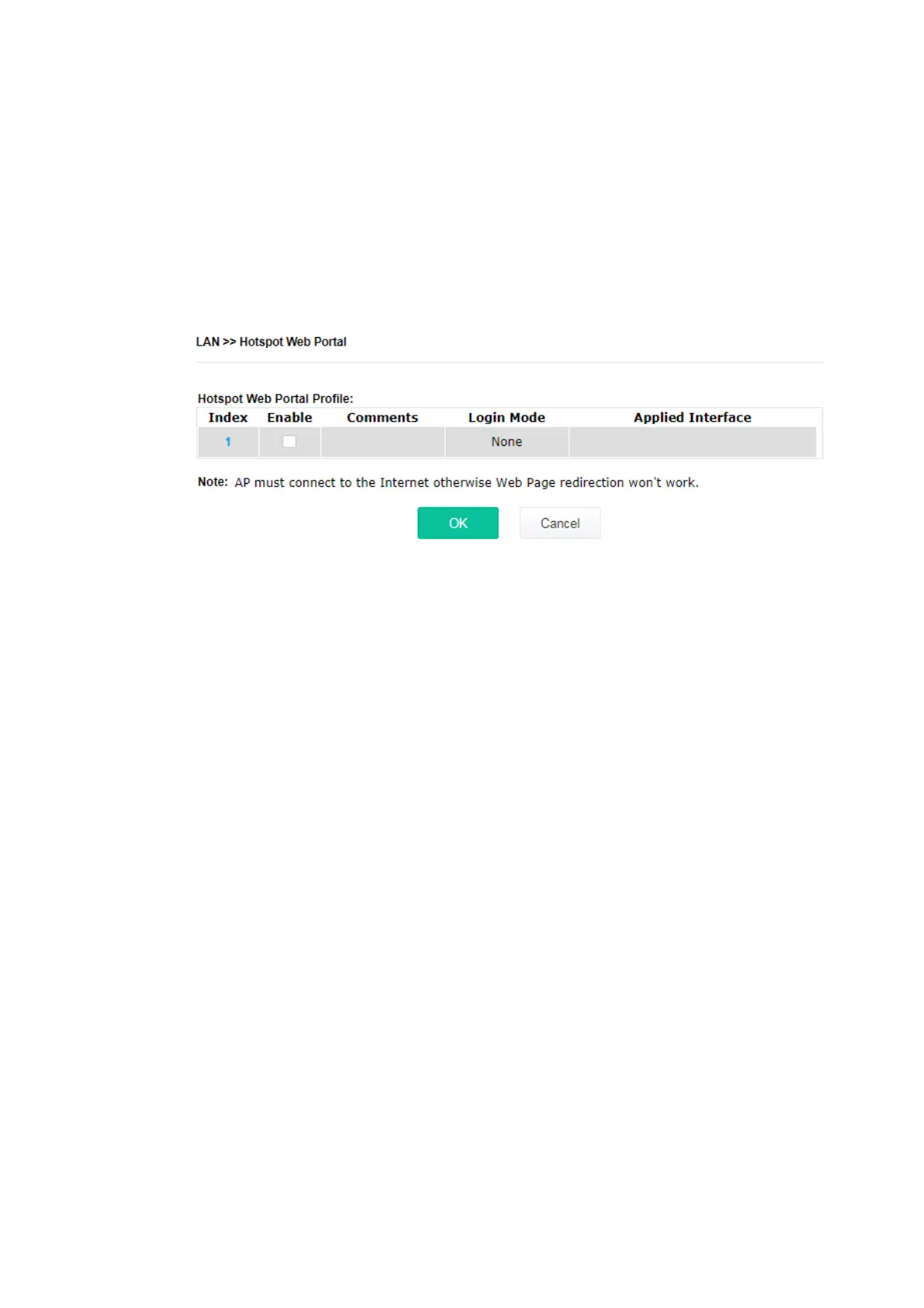

Click LAN to open the LAN settings page and choose Hotspot Web Portal. Follow the on-screen
steps to configure settings.
Click the index number (e.g., #1 in this case) to open the setting pages.
(1) Hotspot Web Portal Settings

Draytek VigorAP 906 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Number of users	254 user(s)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	2402 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Placement	Ceiling, Table, Wall
Product color	White
Security algorithms	WEP, WPA, WPA2, WPA3, WPS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	5
Antenna type	External
Antenna direction type	Omni-directional
Antenna gain level (max)	2.5 dBi
Input current	0.4 A
Output current	1.5 A
AC input voltage	48 - 56 V
DC voltage range	12 V
Power consumption (max)	17.3 W
Sustainability certificates	CE
