I-2 Hardware Installation
This section will guide you to install the VigorAP 906 through a hardware connection and configure
the device’s settings through the web browser.
Before starting to configure VigorAP 906, you have to connect your devices correctly.

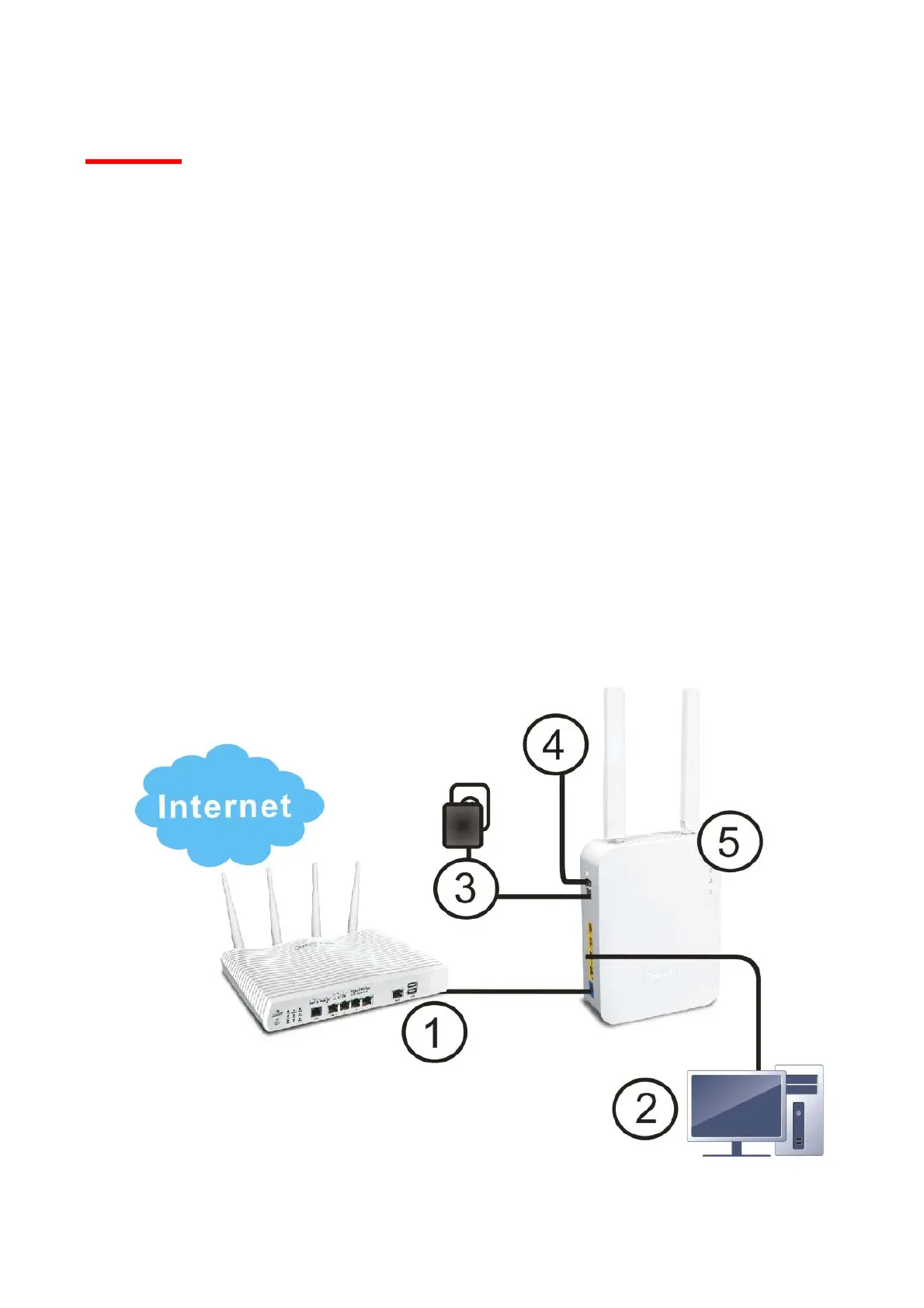

I-2-1 Wired Connection for PC in LAN
1. Connect VigorAP 906 to xDSL modem, router, or switch/hub in your network through the LAN
B port of the access point by Ethernet cable.
You can also connect VigorAP 906 to a Vigor router via wireless connection. For detailed
information, refer to VigorAP 906 User’s Guide.
2. Connect a computer to other available LAN A port. Make sure the subnet IP address of the PC
is the same as VigorAP 906 management IP, e.g., 192.168.1.X.
3. Connect the A/C power adapter to the wall socket, and then connect it to the PWR connector
of the access point.
4. Power on VigorAP 906.
5. Check all LEDs on the front and back panel. The ACT LED on the front panel should blink;
WAN/LAN LED on the back panel should be on if the access point is correctly connected to the
xDSL modem, router or switch/hub.
(For detailed information on LED status, please refer to section I-1-1.)

Draytek VigorAP 906 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Number of users	254 user(s)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	2402 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Placement	Ceiling, Table, Wall
Product color	White
Security algorithms	WEP, WPA, WPA2, WPA3, WPS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	5
Antenna type	External
Antenna direction type	Omni-directional
Antenna gain level (max)	2.5 dBi
Input current	0.4 A
Output current	1.5 A
AC input voltage	48 - 56 V
DC voltage range	12 V
Power consumption (max)	17.3 W
Sustainability certificates	CE
