Draytek VigorAP 906 User Manual

12
I-4 Accessing to Web User Interface
All functions and settings of this access point must be configured via the web user interface. Please
start your web browser (e.g., Firefox).
1. Make sure your PC connects to the VigorAP 906 correctly.

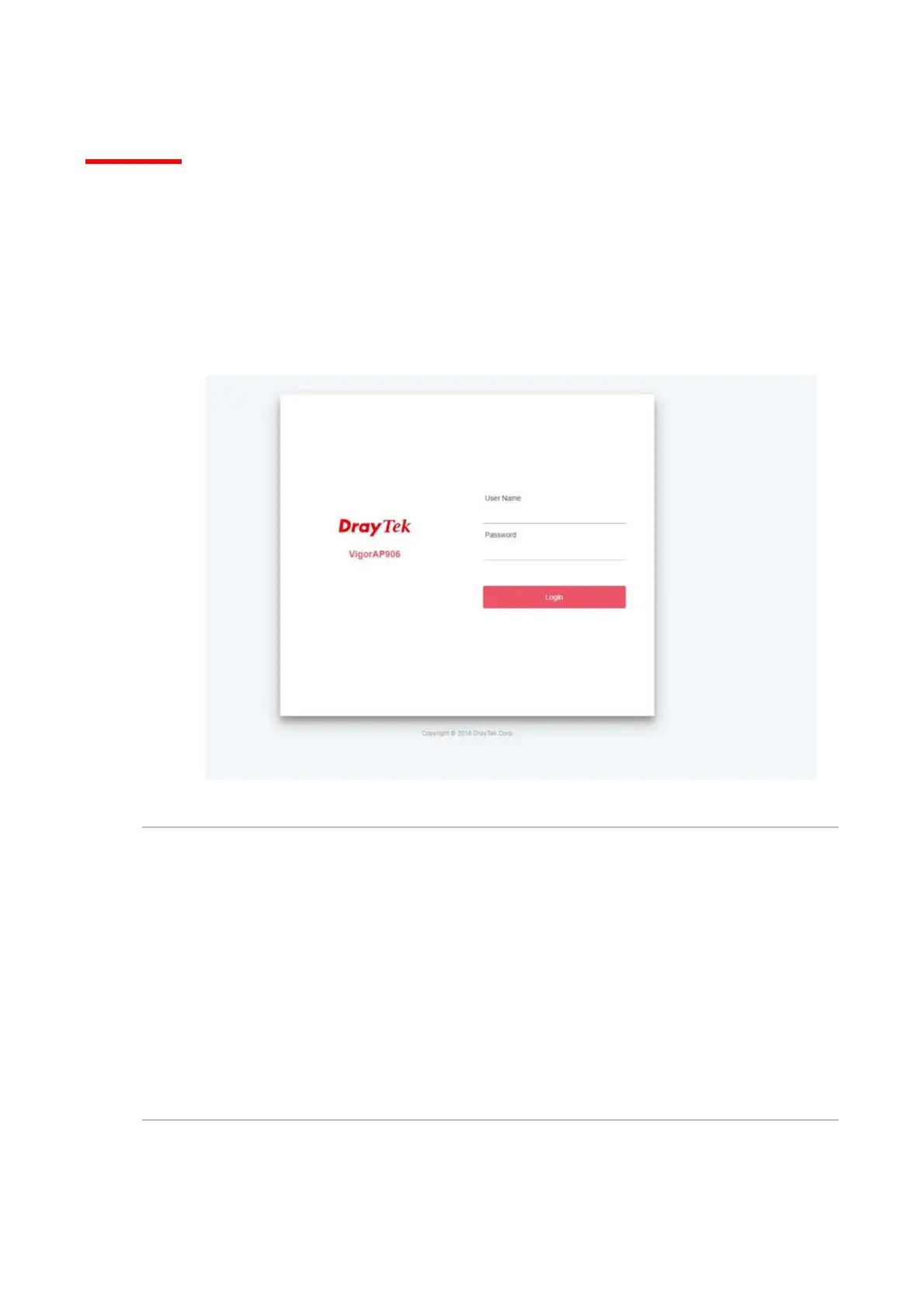

2. Open a web browser on your PC and type http://192.168.1.2. A pop-up window will open to
ask for a username and password. Please type “admin/admin” on Username/Password and
click OK.

Note:
You may either simply set up your computer to get IP dynamically from the router or set up the IP
address of the computer to be in the same subnet as the IP address of VigorAP 906.
 If there is no DHCP server on the network, then VigorAP 906 will have an IP address of
192.168.1.2.
 If there is DHCP available on the network, then VigorAP 906 will receive its IP address via the
DHCP server.
 If you connect to VigorAP by wireless LAN, you could try to access the web user interface
through http://vigorap.com.

Draytek VigorAP 906 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Number of users	254 user(s)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	2402 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Placement	Ceiling, Table, Wall
Product color	White
Security algorithms	WEP, WPA, WPA2, WPA3, WPS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	5
Antenna type	External
Antenna direction type	Omni-directional
Antenna gain level (max)	2.5 dBi
Input current	0.4 A
Output current	1.5 A
AC input voltage	48 - 56 V
DC voltage range	12 V
Power consumption (max)	17.3 W
Sustainability certificates	CE
