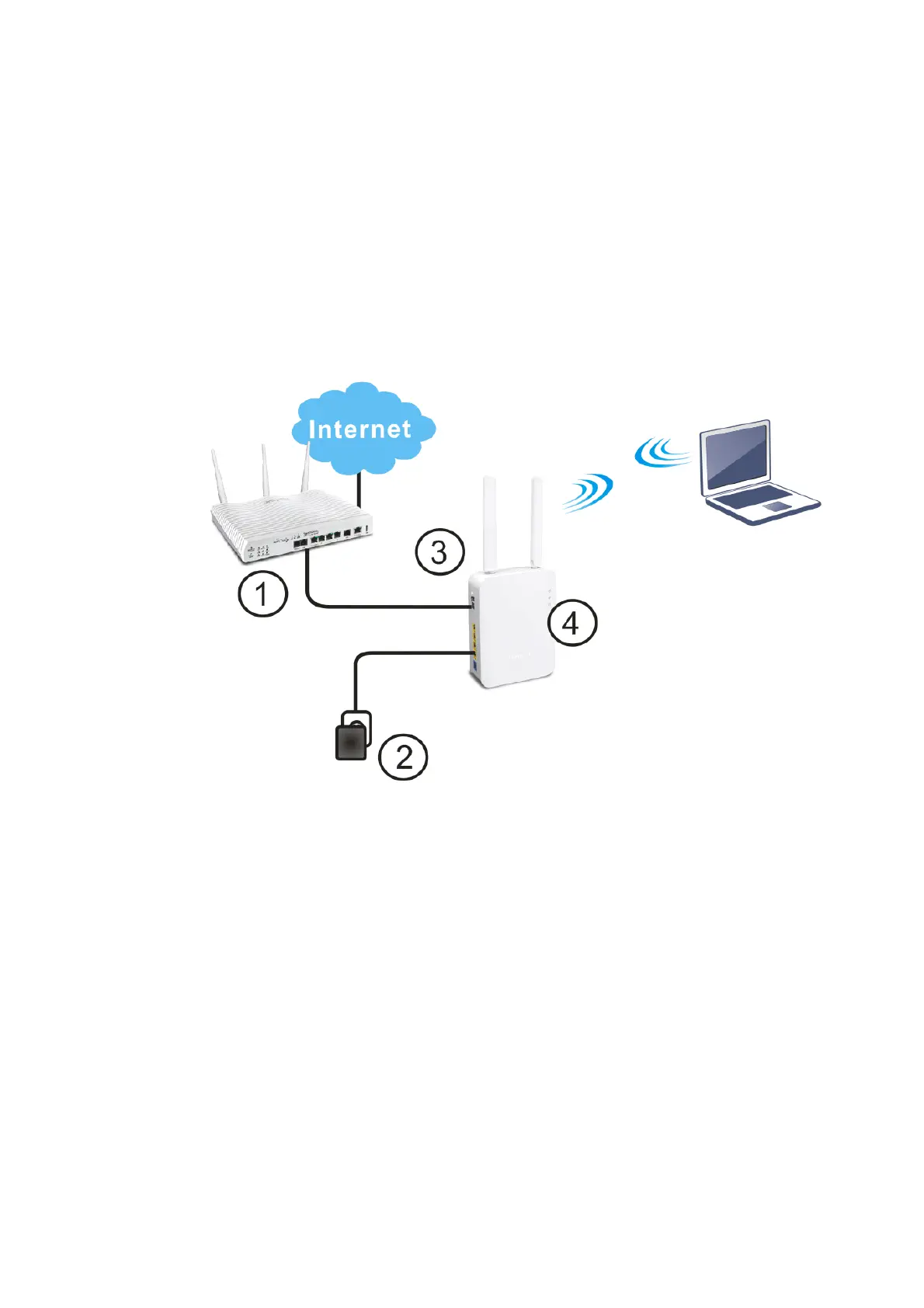

I-2-2 Wired Connection for Notebook in WLAN
1. Connect VigorAP 906 to the ADSL modem or router in your network through the LAN A port of
the access point by Ethernet cable.
2. Connect the A/C power adapter to the wall socket, and then connect it to the PWR connector
of the access point.
3. Power on VigorAP 906.
4. Check all LEDs on the front panel. ACT LED should be steadily on, LAN LEDs should be on if
the access point is correctly connected to the ADSL modem or router.
(For detailed information on LED status, please refer to section I-1-1.)
