Draytek VigorAP 906 User Manual

VigorAP 903 User’s Guide
158

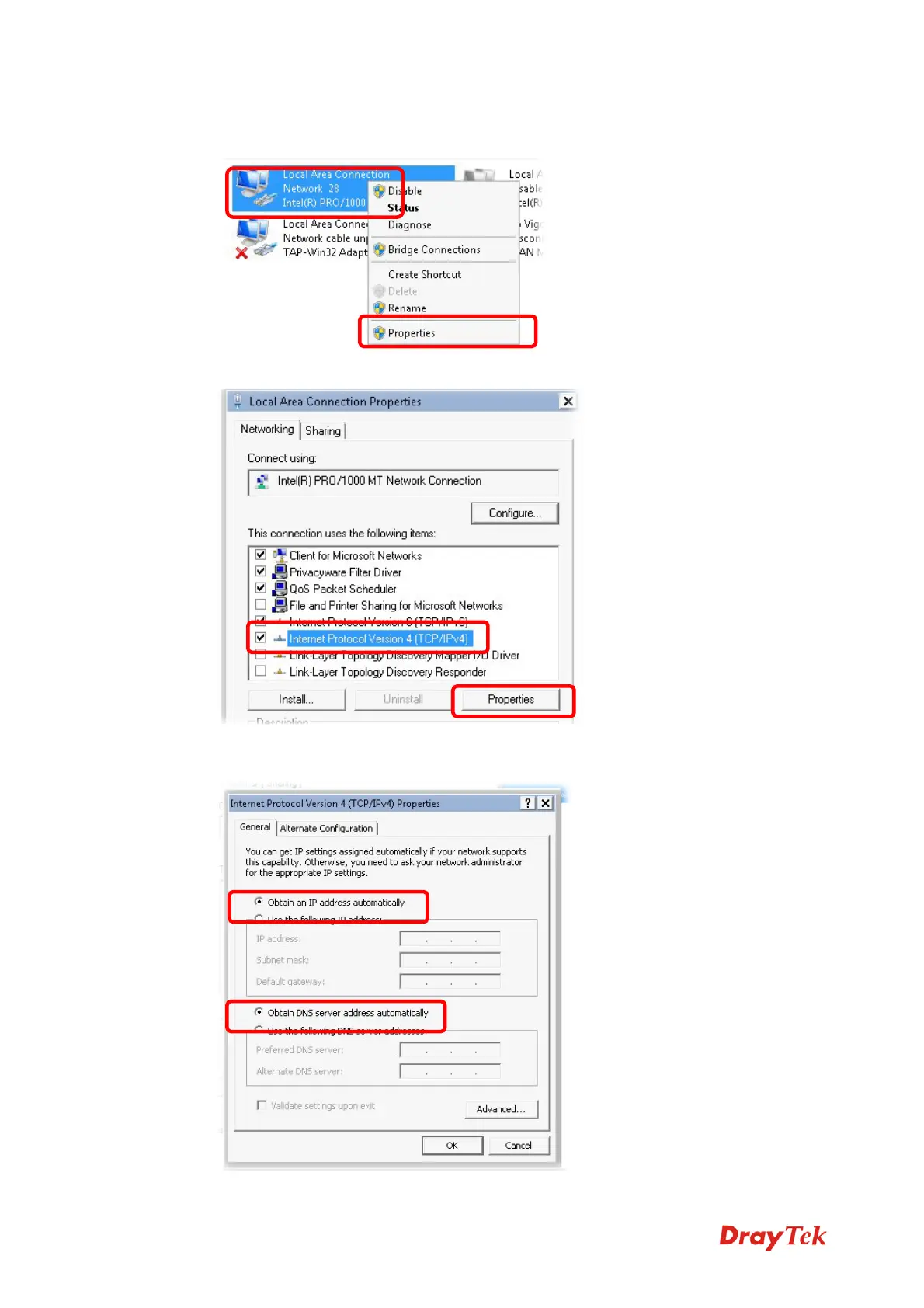

3. Icons of the network connection will be shown on the window. Right-click on Local Area
Connection and click on Properties.
4. Select Internet Protocol Version 4 (TCP/IP) and then click Properties.
5. Select Obtain an IP address automatically and Obtain DNS server address
automatically. Finally, click OK.

Draytek VigorAP 906 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Number of users	254 user(s)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	2402 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Placement	Ceiling, Table, Wall
Product color	White
Security algorithms	WEP, WPA, WPA2, WPA3, WPS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	5
Antenna type	External
Antenna direction type	Omni-directional
Antenna gain level (max)	2.5 dBi
Input current	0.4 A
Output current	1.5 A
AC input voltage	48 - 56 V
DC voltage range	12 V
Power consumption (max)	17.3 W
Sustainability certificates	CE
