Draytek VigorAP 906 User Manual

66
When Mesh Root is
selected
Wireless Downlink Band – Choose a wireless band for connecting
with a downlink mesh root or a downlink mesh node.
Group Name - Display the name of the current mesh group.
Auto Reselect - It is selected in default. To perform the auto reselect,
make sure the process for CFG Sync and CFG Check for mesh nodes
are successful. If enabled, after changing the environment of the
mesh network (e.g., offline, disconnection), the root device will
perform auto reselect to reconstruct the mesh network.
When Mesh Node is
selected
Wired Uplink – Check the box if such VigorAP connects to an uplink
mesh root or an uplink mesh node with an Ethernet cable.
Wireless Uplink/Downlink Band – Choose a wireless band for
connecting with an uplink/downlink mesh root or an uplink/downlink
mesh node.
Mesh Group When the VigorAP is set as mesh root or is added to a mesh group,
the basic information including role, MAC address, and model name
of the AP will be shown in this area.
Up to 8 entries (one mesh root and seven mesh nodes) will be shown
on this field.
Reset - Click it to clear the Mesh Group information.
Delete - Click it to remove the selected entry.

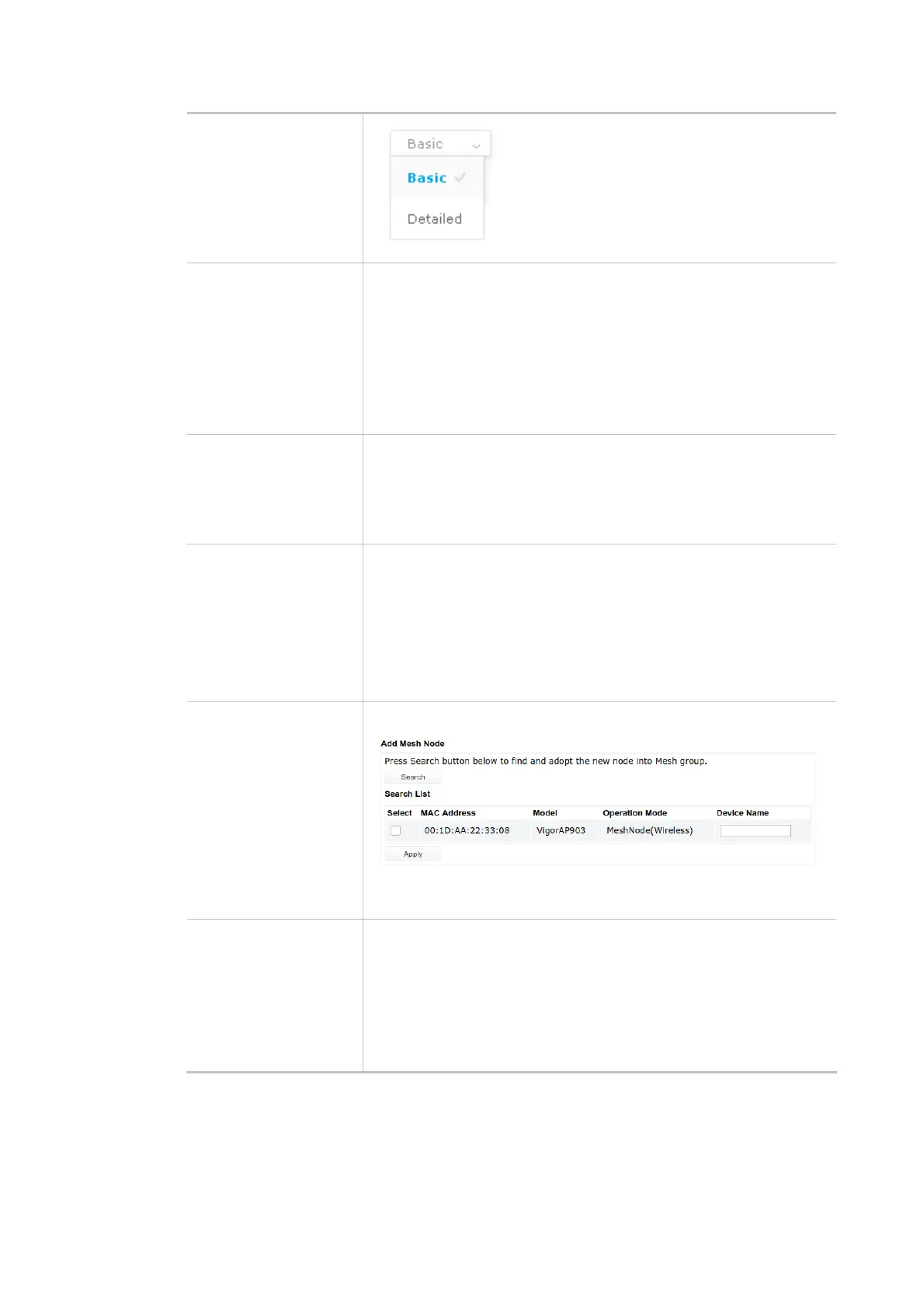

Add Mesh Node Click Search to find out the available mesh node on the network.
Check the one you want and click Apply. The selected AP will be
added to the current mesh root.
Backup Mesh Config Backup – Click the button to save the configuration as a file.
Upload/Restore – Click the Upload button to specify a configuration
file. Then click Restore to apply the configuration.
When the MAC address of such VigorAP does not appear under the
mesh group, the restore operation will not succeed and the error
message, ”Device MAC is not in mesh group list”, will be shown
instead.

Draytek VigorAP 906 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Number of users	254 user(s)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	2402 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Placement	Ceiling, Table, Wall
Product color	White
Security algorithms	WEP, WPA, WPA2, WPA3, WPS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	5
Antenna type	External
Antenna direction type	Omni-directional
Antenna gain level (max)	2.5 dBi
Input current	0.4 A
Output current	1.5 A
AC input voltage	48 - 56 V
DC voltage range	12 V
Power consumption (max)	17.3 W
Sustainability certificates	CE
