Duplo DP-S Series - Removal of Wire (Lamp)

105
x Scanner Section
chap.3
R8S03021
Cord clamp
Connector
Inverter PCB unit
R8S03022
Screws
Wire (Lamp)

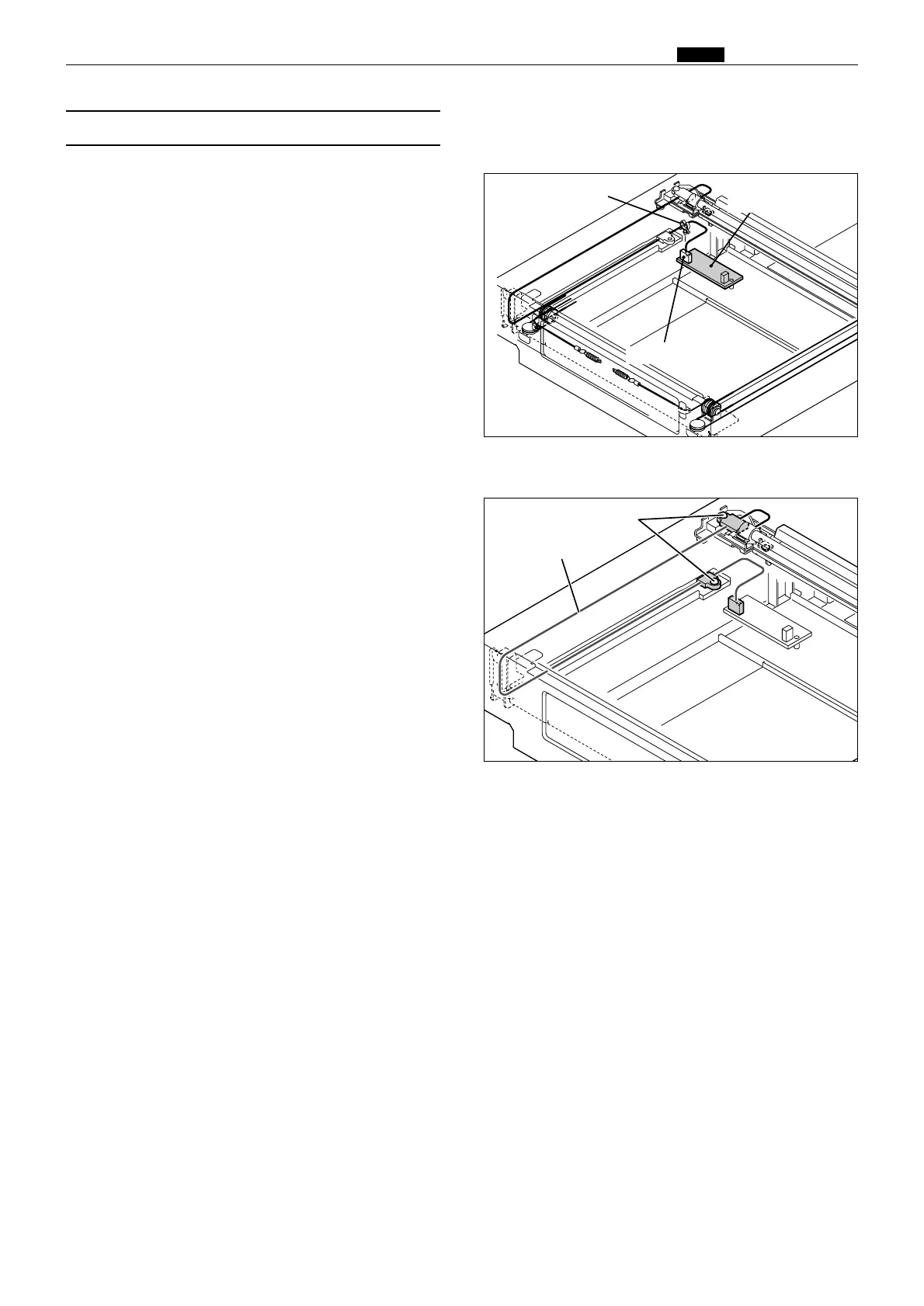

(5) Removal of Wire (Lamp)
4. Remove the 4 screws indicated, and remove the
wire (lamp).
1. Perform steps 1 through 4 of procedure (4).
2. Remove the cord clamp.
3. Disconnect the inverter PCB unit CN2 connector.
