b Drum Driving Section
chap.3
5. Remove the 2 E-rings, and remove the links.
6. Remove the 2 screws indicated, and remove the
drum gear.
7. Remove the 4 screws indicated, and remove the
driving assy.

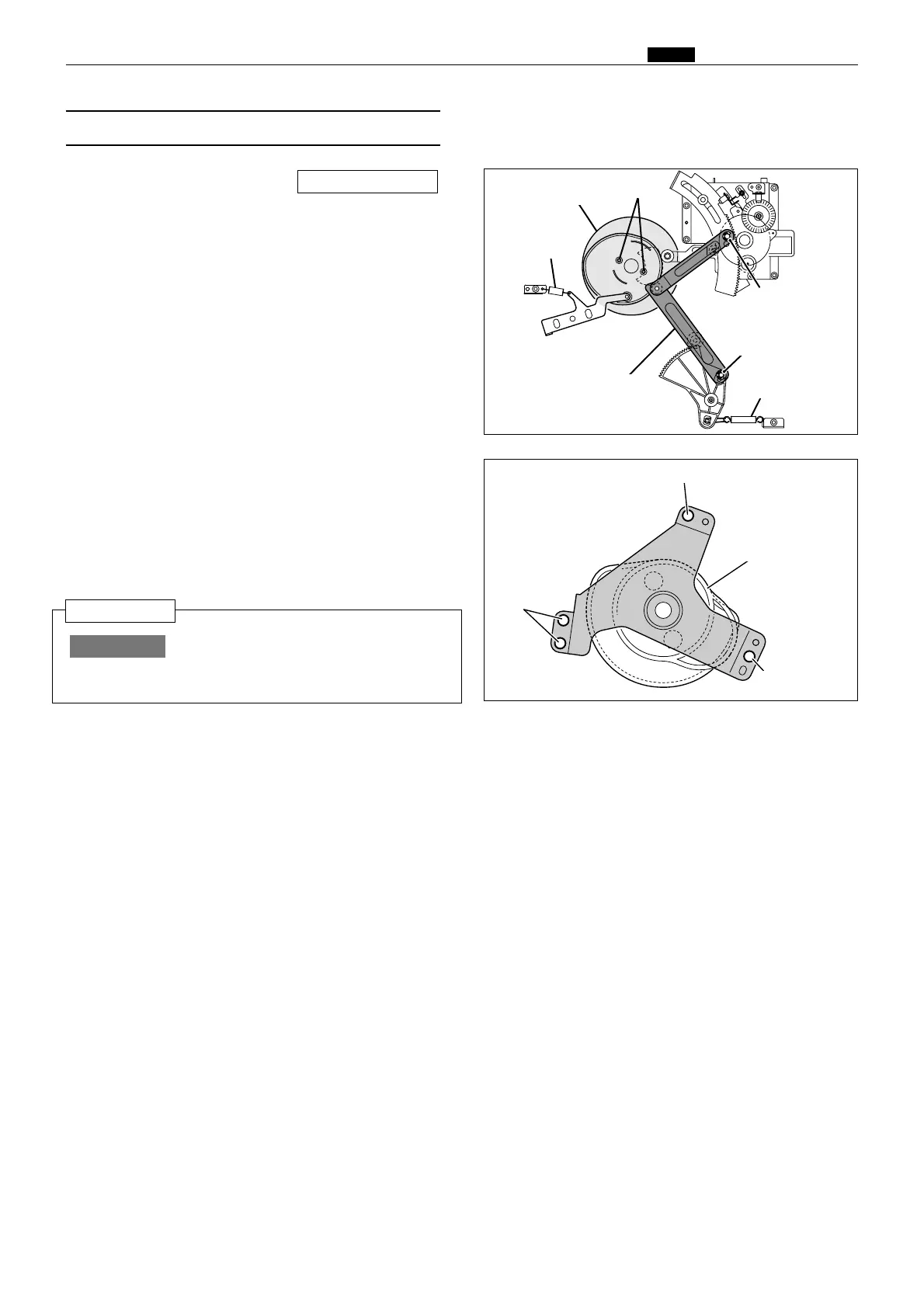

(2) Removal of Drum Gear and Driving Assy
1. Remove the rear cover.
2. Remove the sub-frame A,B.
3. Remove the spring.
4. Remove the spring.
\See page 100
R8S03069
Driving assy
Screw :
4 X 8
R8S03067
Spring
Screws
Drum position cam
Screw :
4 X 8
Spring
E-ring
E-ring
Link
Screw :
4 X 8
Use the screws (4 x 8) removed in step
6 to attach the driving assy.
IMPORTANT :
Reinstallation
