Duplo DP-S Series - Function of Parts; Press Roller Sensor

76
b Press Section
chap.2
(1) Press Roller Sensor
The press roller sensor detects up and down of the press roller.
The press roller only ascends when the paper is fed from the paper feed section by the cancel lever.
The press roller sensor also is used to know whether the paper is fed.

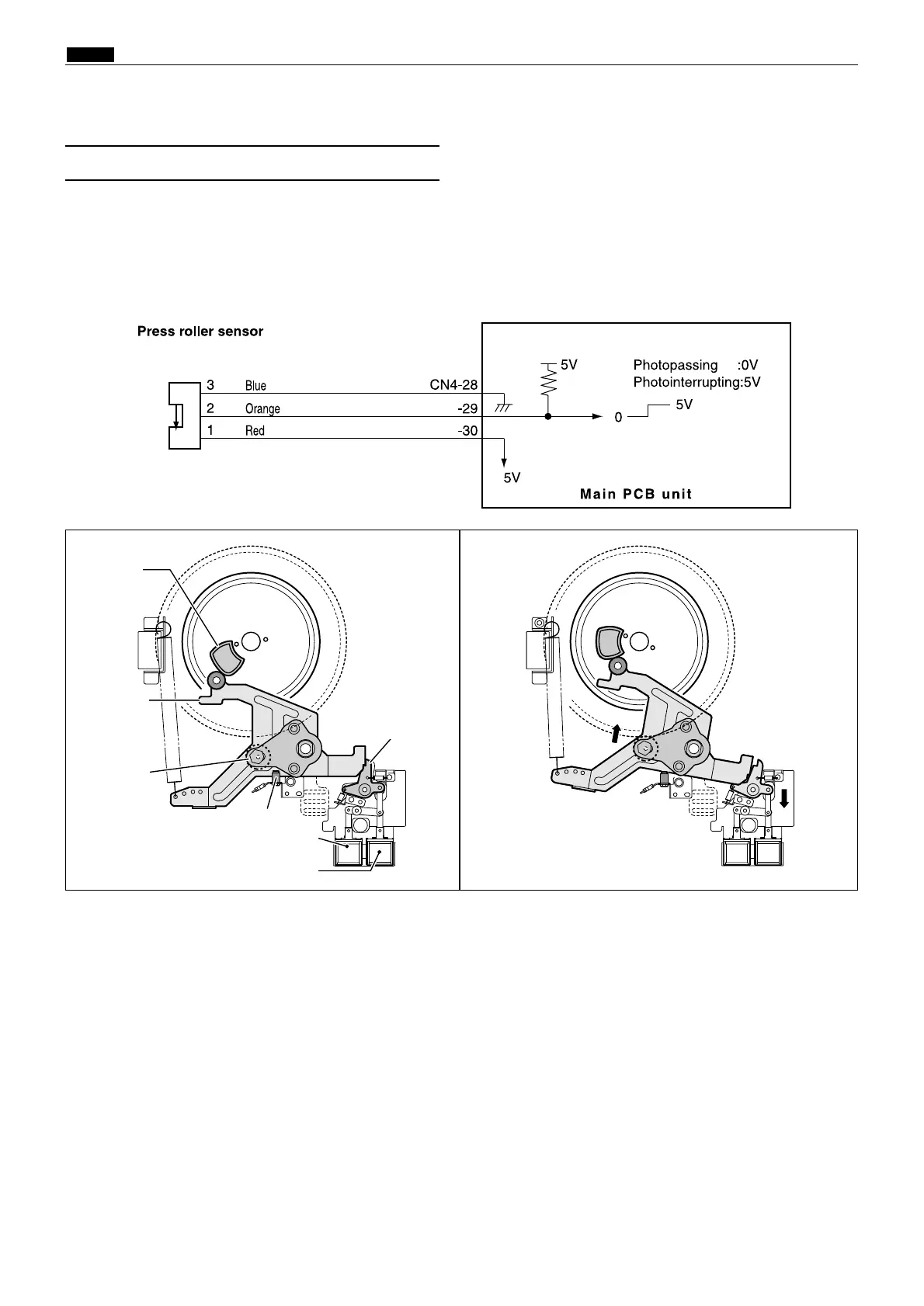

Circuit
2. Function of Parts
R8S02E25e
Press roller : OFF Press roller : ON
Press roller sensor
Cam
Press roller
Press lever
R8S02063
Cancel lever
Signal solenoid
Emergency signal solenoid
