Duplo DP-S Series User Manual

165
, Electrical system
chap.4

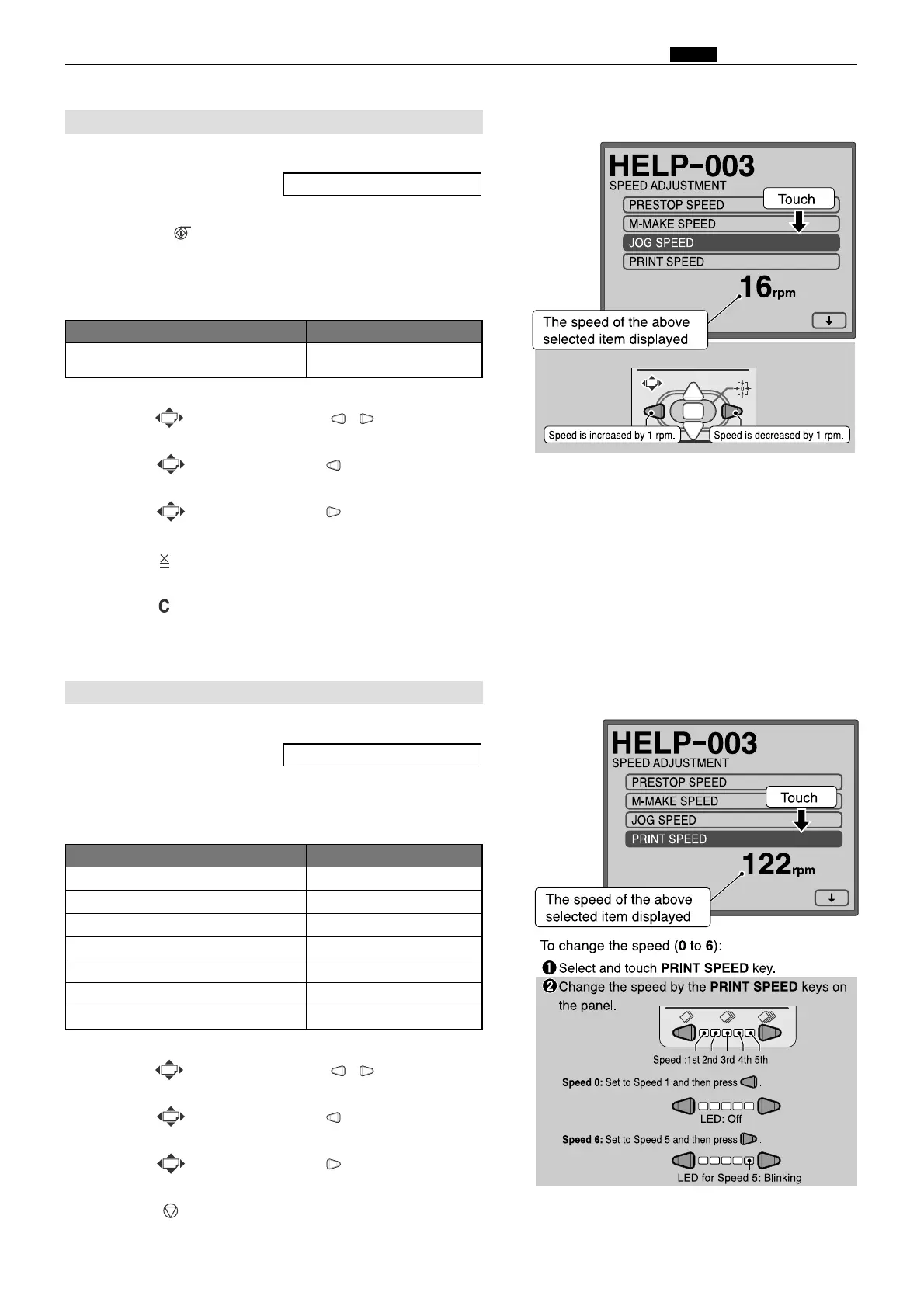

3. Adjusting the Jog Speed
¡HELP-003 display : Jog Speed
Standard value
Adjustment procedure
1. Access HELP-003.
2. Touch the JOG SPEED.
3. Press the (MASTER MAKING) key. The drum
rotates and the rotation speed appears on the panel
lower part.
Standard values:
HELP - 003 \ see p.203
Item
Jog Speed 16 rpm
If the value is not correct:
¡Press the (PRINT POSITION) , keys to obtain
the proper value in 3 above.
Press the (PRINT POSITION) key once: By 1 rpm
decreased
Press the (PRINT POSITION) key once: By 1 rpm
increased
4. Press the key to store all speed set values.
Initialization
¡Press the (CLEAR) key to initialize the speed of the
selected item.
4. Adjusting the Print Speed
¡HELP-003 display : Print Speed
Standard value
Adjustment procedure
1. Access HELP-003.
2. Touch the PRINT SPEED.
3. Check the displayed speed.
Standard values:
HELP - 003 \ see p.203
Item
Speed 0 (Low print speed) 32 rpm
If the value is not correct:
¡Press the (PRINT POSITION) , keys to obtain
the proper value in 3 above.
Press the (PRINT POSITION) key once: By 1 rpm
decreased
Press the (PRINT POSITION) key once: By 1 rpm
increased
4. Press the (STOP) key to store the adjusted values
and to return to the HELP mode selection screen.
47 rpm
82 rpm
102 rpm
122 rpm
132 rpm
152 rpm
Speed 1
Speed 2
Speed 3
Speed 4
Speed 5
Speed 6 (High print speed)
