130
m
Drum Section
chap.3
(5)

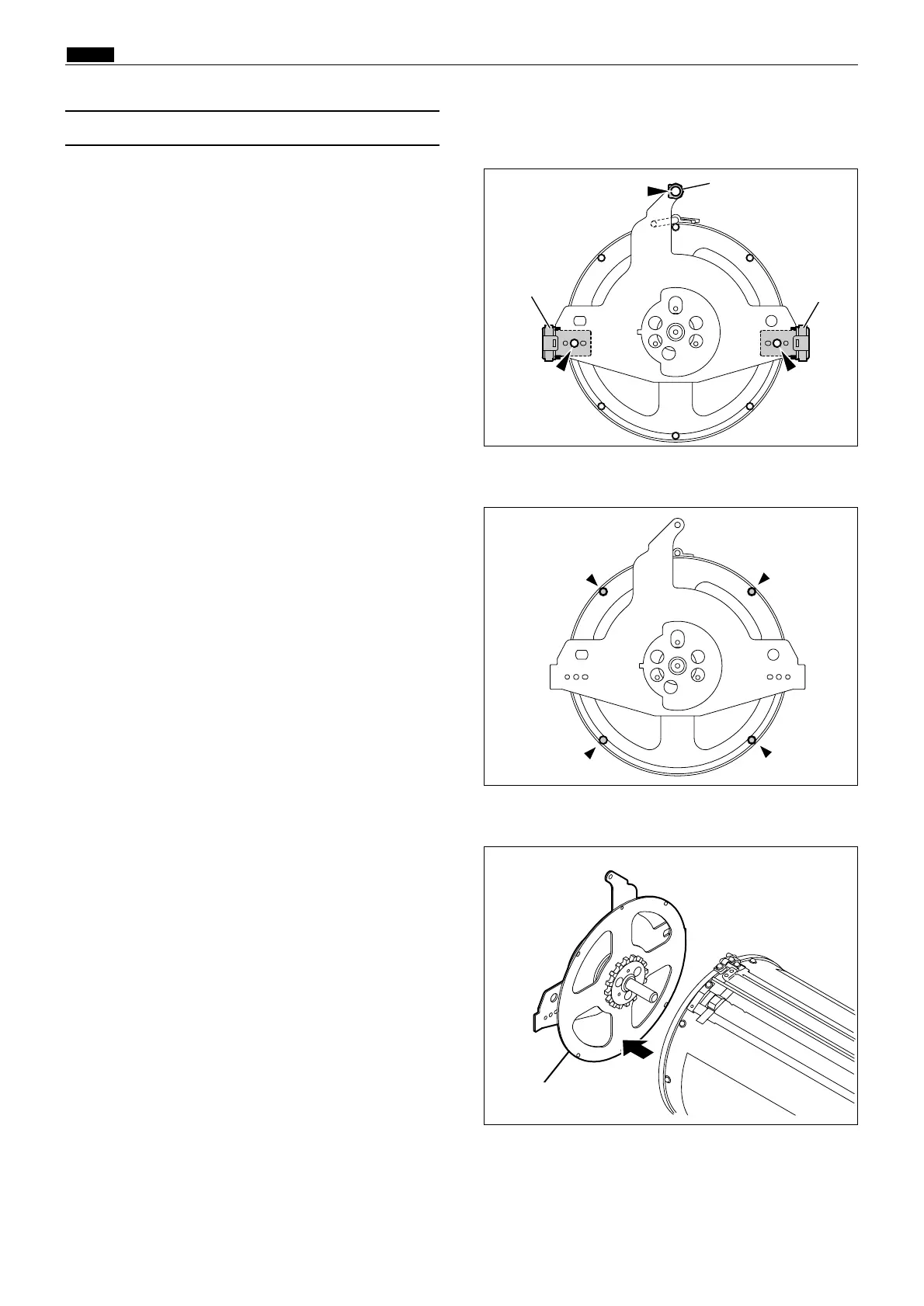

Removal of Outer Frame (Left) Assy
1.
Remove the dram unit.
2.
Remove the screw on the rail to take out the rail.
3.
Remove the screw on the stay to remove the stay
.
4.
Remove 4 screws.
5.
Pull out the outer frame (left) assy
.
R8S03092
R8S03093
R8S03094
Rail
Stay
Rail
Screw
Screw
Screw
Screw
Screw
Outer frame shaft assy
Screw
Screw
130
132
