b Press Section
chap.4
Screw
Press roller sensor
(1) Checking the of Press Roller Sensor
bPress Section
¡For description of operation.
Adjustment procedure

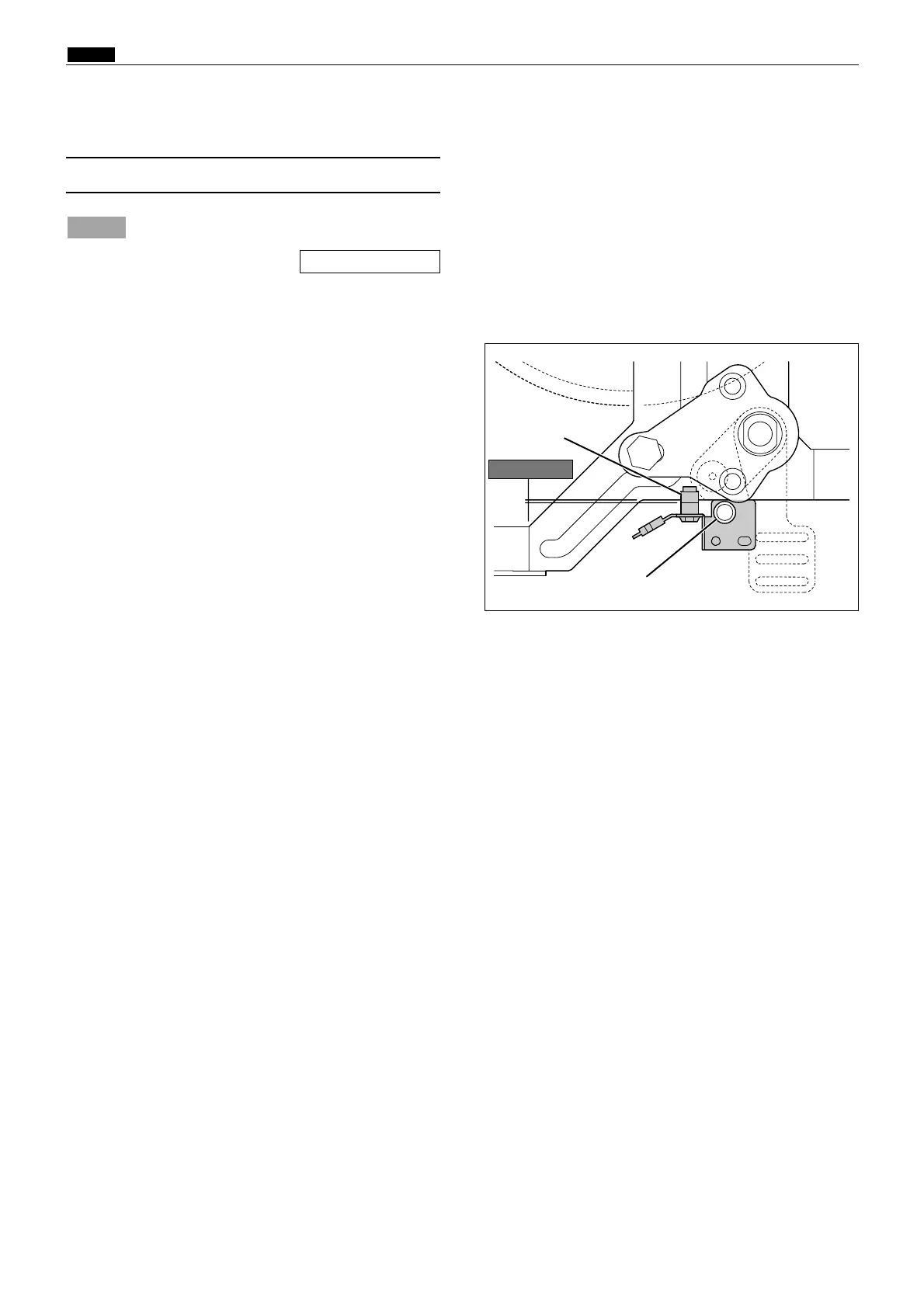

1. Check the press roll so that when it is pushed
down to the lowest position by the cam, the dis-
tance between the bottom of its sensor and the
end of the bracket is about 1mm.
NOTE :
\See page 76
R8S04031
About 1mm
