145
c Paper Feed Section
chap.4

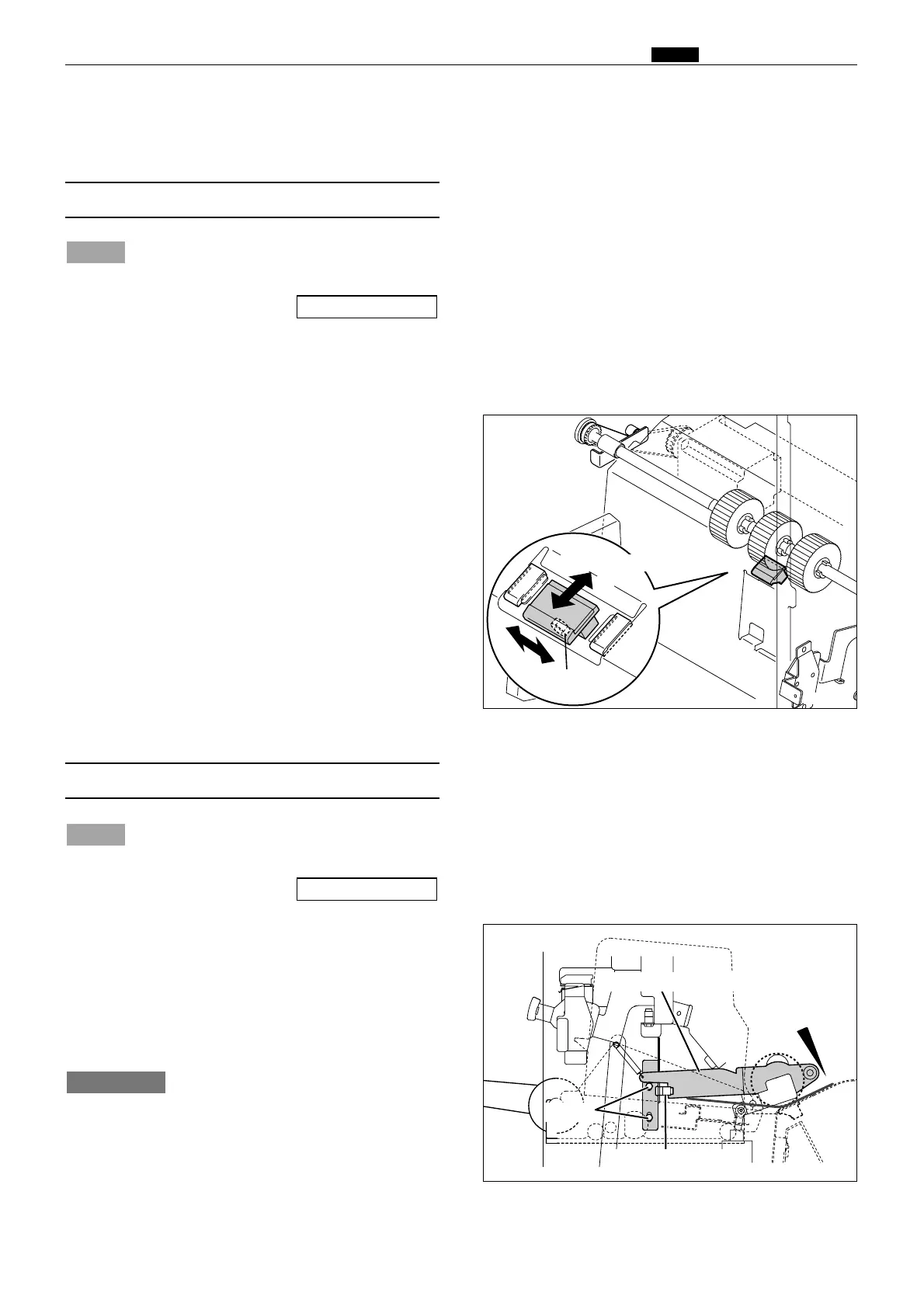

(2) Adjusting the Elevator Top Limit Sensor
¡For description of operation .
Adjustment procedure
1. Insert a 1mm thick strip of material between the
paper feed roller and the paper feed inlet.
2. Loosen the 2 screws indicated, then adjust the
sensor's position so that the bottom surface of
the paper feed shaft lever is at the center of the
sensor.
For adjustment, remove the
auxiliary paper separator unit.
3. After adjustment, tighten the screws.
IMPORTANT :
\See page 65
NOTE :
Screws
Elevator top limit
sensor
Paper feed shaft lever
1mm thick strip
R8S04019
cPaper Feed Section
(1) Adjusting the Paper Separator Unit Clearance
¡For description of operation .
Adjustment procedure
¡When the paper separator unit is installed, use
the adjustment bolt to adjust the unit so that it
moves in direction
qq
without sticking, and
moves smoothly in direction
ww
. Tighten the
bolt's nut to fix the unit in the adjusted position.
\See page 61
NOTE :
Paper separator unit
R8S04018
qq
ww
Nut
