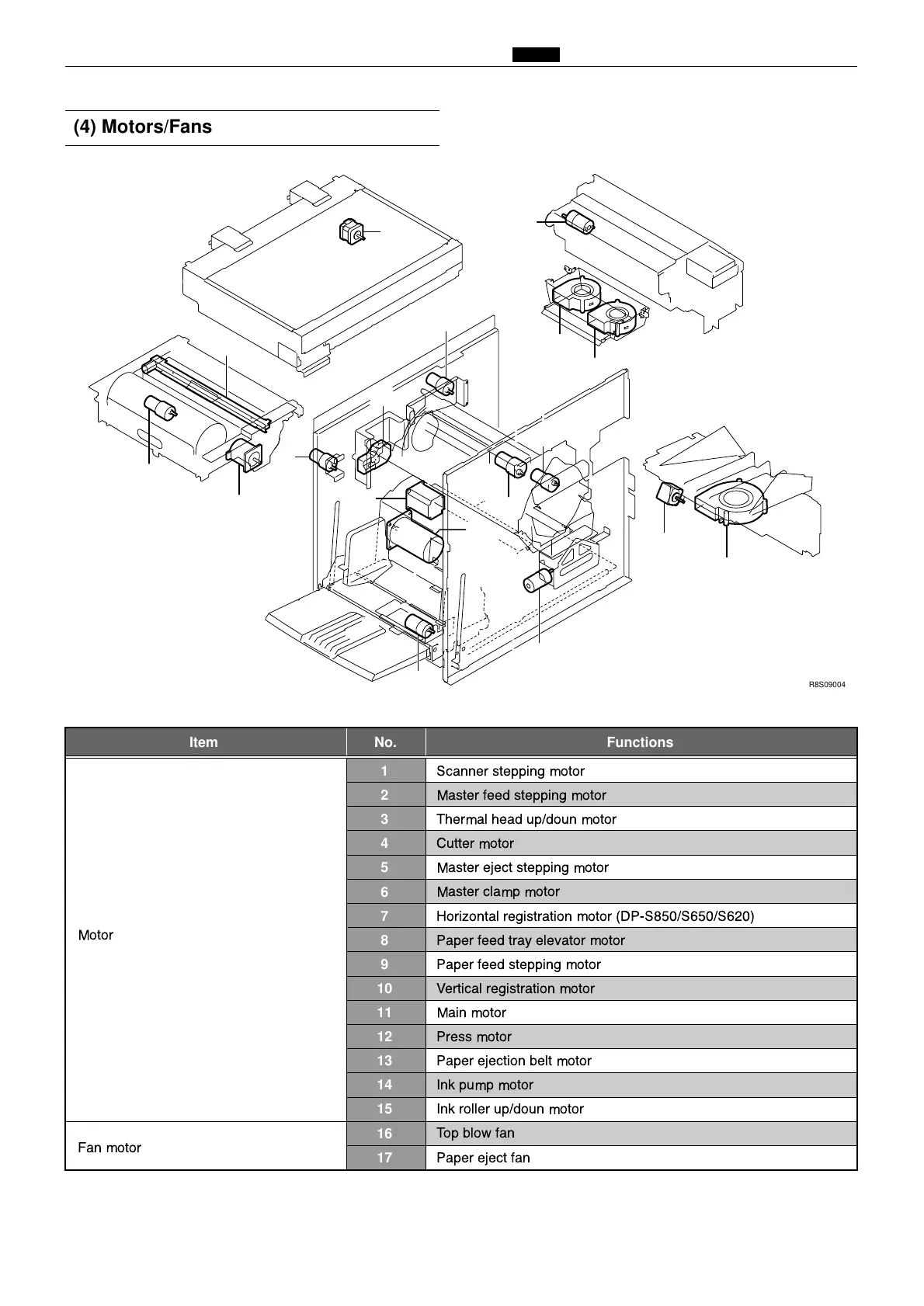

Electrical Parts Layout and Their Functions
chap.8
17
10
9
13
12
14
16
16
7
2
8
3
6
5
4
1
15
11
Scanner
stepping
motor
Master
feed
stepping
motor
Thermal
head
up/doun
motor
Cutter
motor
Master
eject
stepping
motor
Master
clamp
motor
Horizontal
registration
motor
(DP-S850/S650/S620)
Paper
feed
tray
elevator
motor
Paper
feed
stepping
motor
V
ertical
registration
motor
Main
motor
Press
motor
Paper
ejection
belt
motor
Ink
pump
motor
Ink
roller
up/doun
motor
T
o
p
blow
fan
Paper
eject
fan
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Motor
Fan
motor
Functions
Item
No.
(4) Motors/Fans
R8S09004
285
287
