78
b
Press Section
chap.2
2
Press center sensor :
The center is detected by the center detection
edge.
2
The press upper limit and the press lower limit
are controlled by the encoder pulse from the
center detection edge.

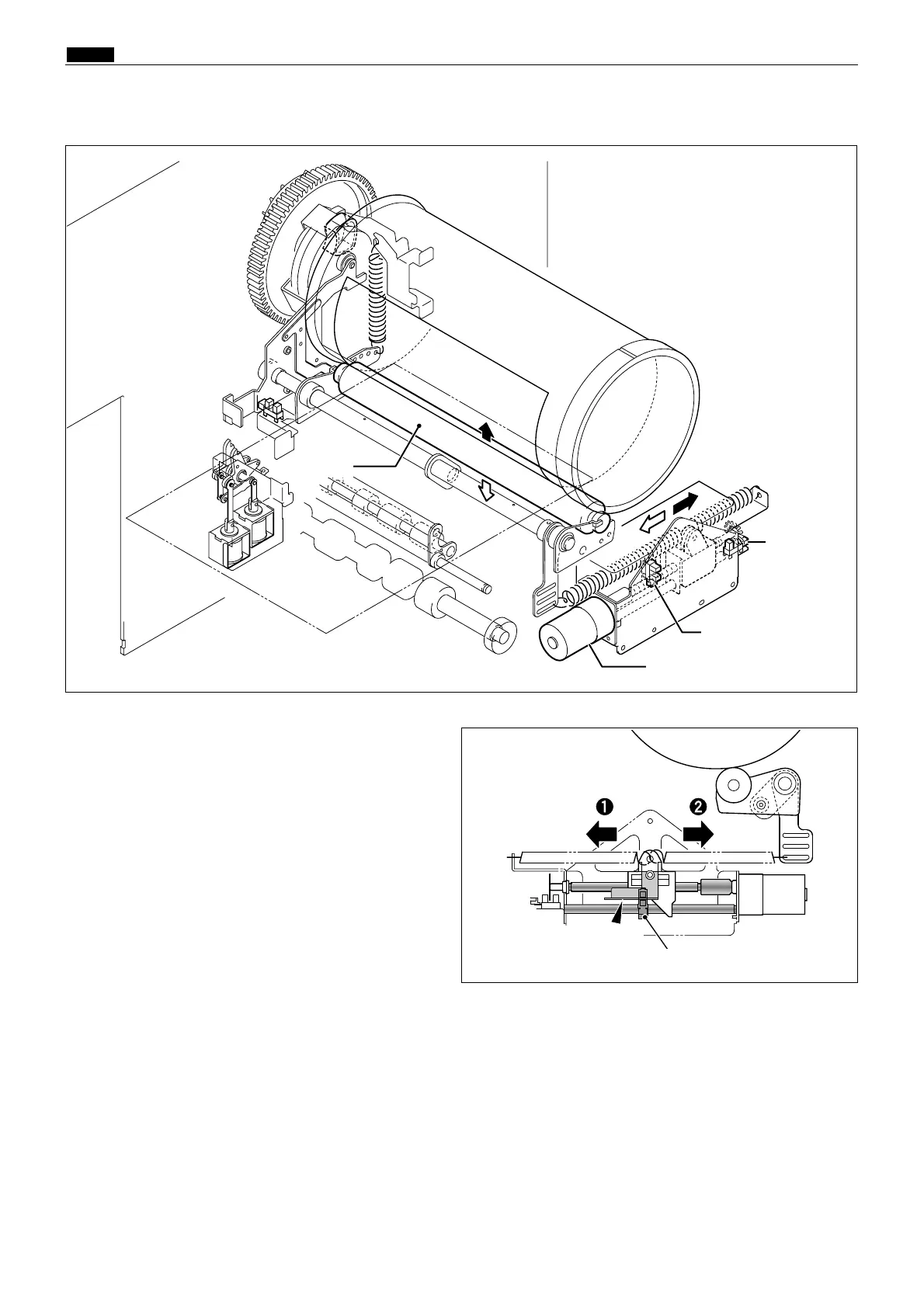

1. Contact pressure position sensing
R8S02068
Center detection edge
Press center sensor
Press motor
Press
encoder
sensor
Press
roller
R8S02066
Press center sensor
78
80
