(2) Position Adjustment of Thermal Head
Up/Down Motor
138
x Platemaking / Master Feed / Ejection Section
chap.4
xPlatemaking / Master Feed / Ejection Section

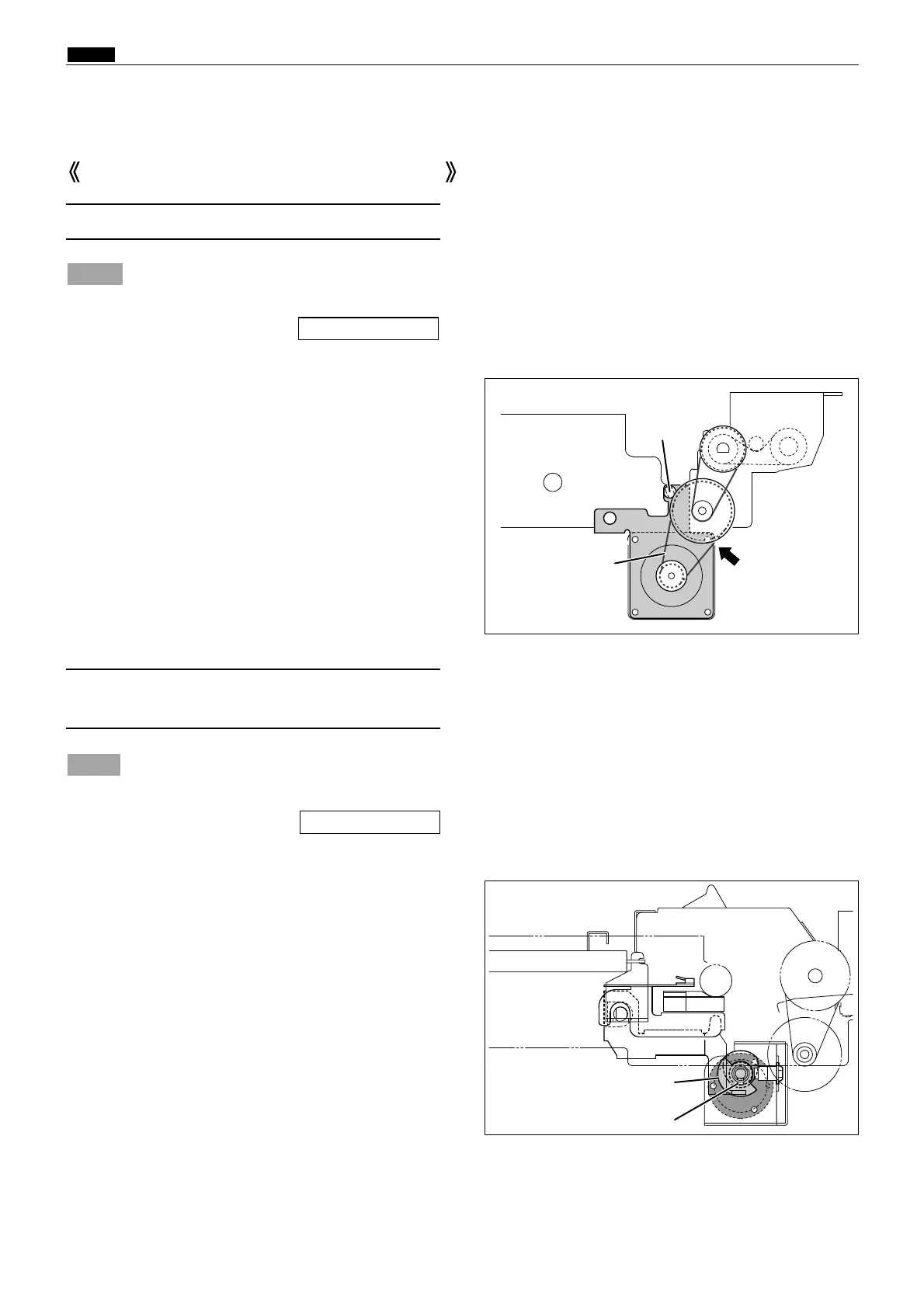

(1) Adjusting the Timing Belt Tension
¡For removal of master feed unit.
Adjustment procedure
1. Use the set screw to adjust the belt's tension to
about 1kg.
\See page 112
NOTE :
Platemaking / Master Feed Section
Set screw
Timing Belt
R8S04003
1kg
¡For removal of master feed unit.
Adjustment procedure
1. Lift up the lever to its upper limit position.
2. Loosen the shading plate's set screw. Then align
the shading plate in the position shown in the
figure, and tighten the set screw to fix the plate
in position.
NOTE
\See page 112
R8S04004
Shading plate
Set screw
