Duplo DP-S Series User Manual

33
z Scanner Section
chap.2
Description
The document cover open/close sensor detects opening and closing of the document cover (or S3-ADF if the S3-ADF is
installed).
Operation
Sensor is photointerrupted with the document cover closed, The photointerrupter rotates as the document
cover is opened and sensor is photopassed.

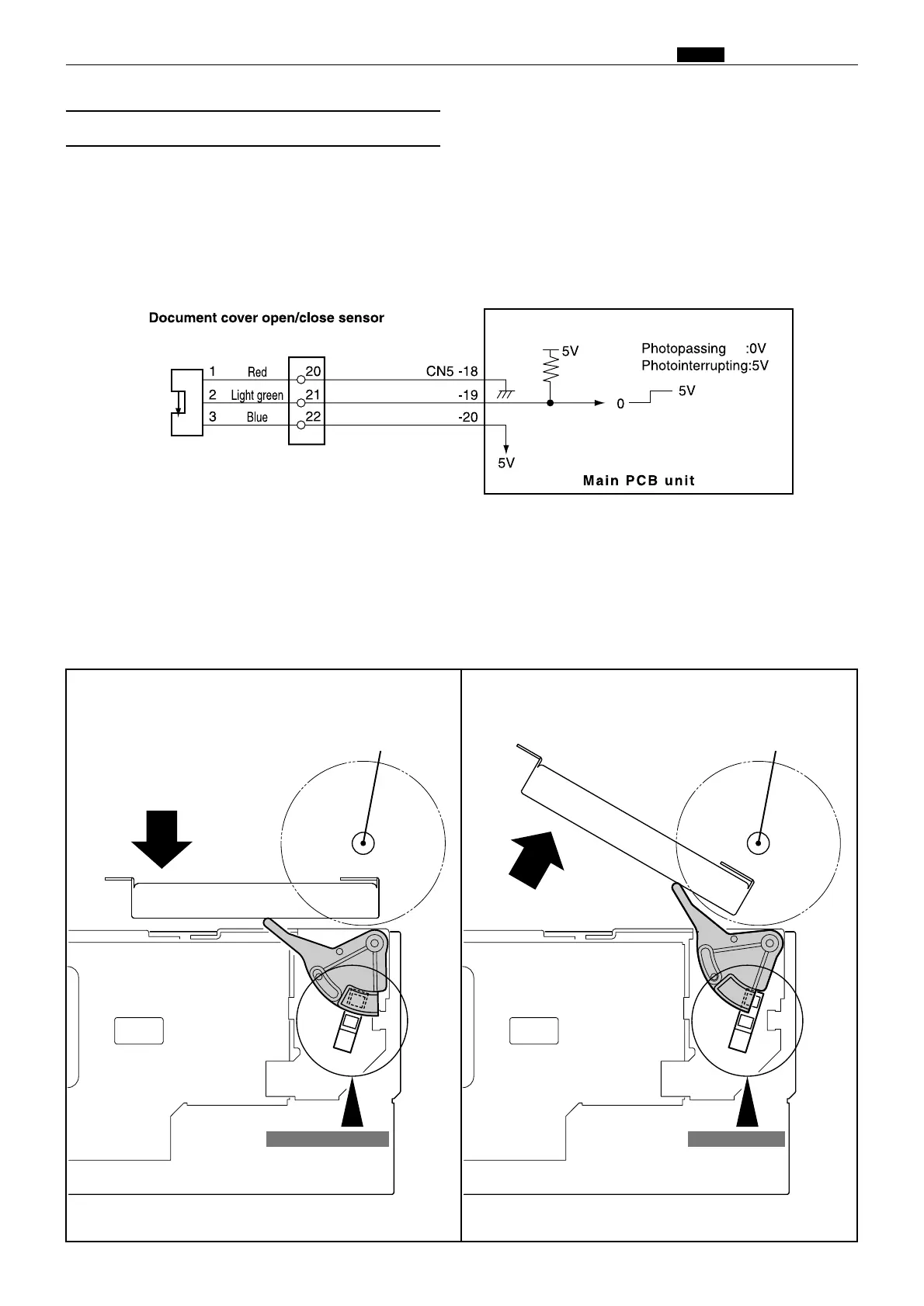

Circuit
(3) Document Cover Open/Close Sensor
2When the document cover is closed
Document cover open/close sensor : photointerrupted
2When the document cover is opened
Document cover open/close sensor : photopassed
R8S02E04e
R8S02011
Fulcrum Fulcrum
OPEN
CLOSE
Photointerrupted Photopassed
