107
x Scanner Section
chap.3

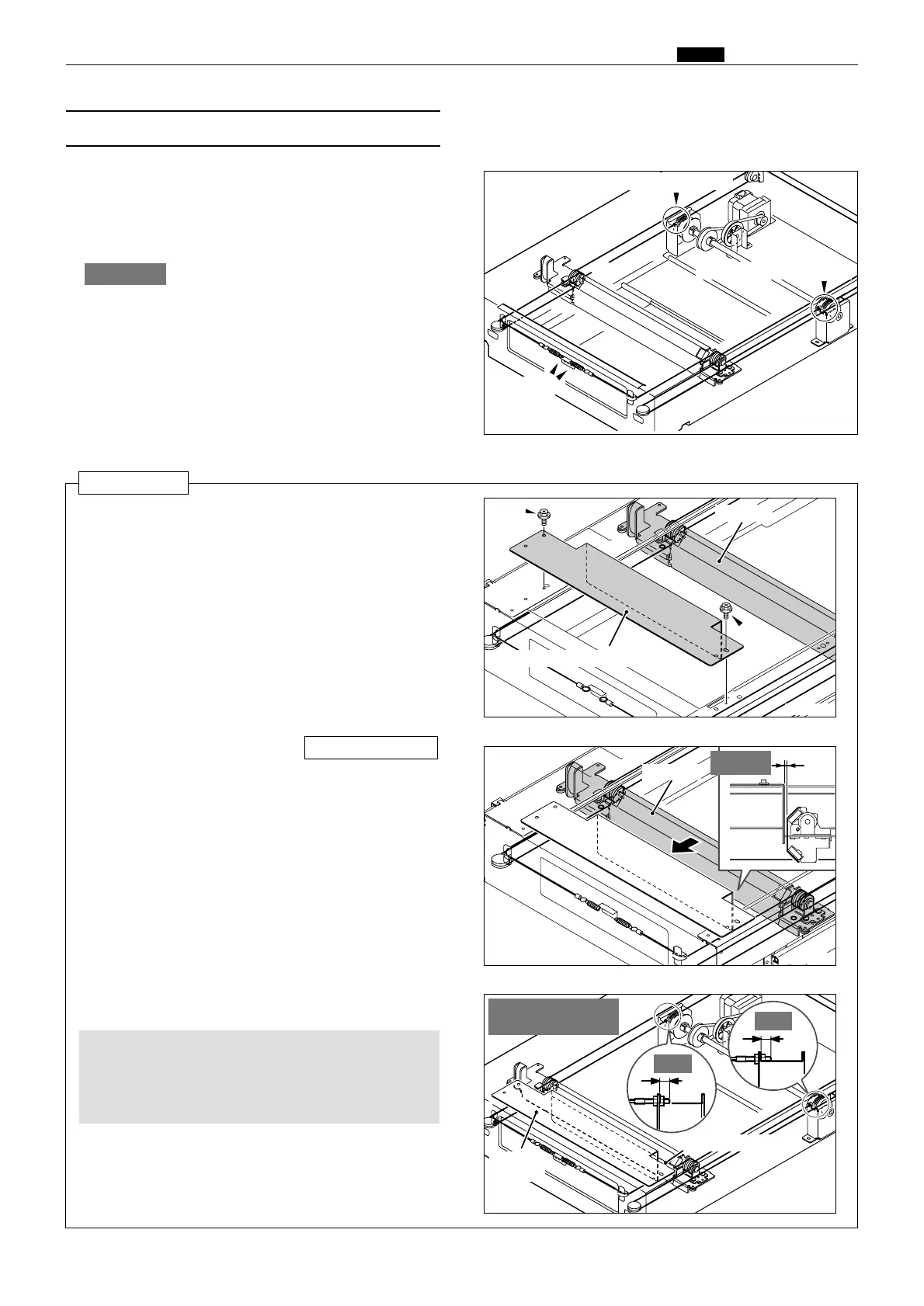

(7) Removal of Slider B
¡ Required items : Wire fixing tools
1. Perform steps 1 through 3 of procedure (4).
2. To prevent loosening of the wire, attach 2 wire
fixing tools, one before and one after the wire pulley.
Do not remove the wire fixing tools
before Slider B is attached.
IMPORTANT :
Reinstallation
2. Place the wire on the pulley, both before and
after.
\See page 136
¡ Required items
Slider B attachment tool
2 Set screws
3. Place the wire on the spring, both before and
after.
4. Move the slider B to align the slider B back
face with the slider B attachment tool face.
1. Set the slider B attachment tool and attach the
2 set screws.
5. Remove the Wire fixing tools.
3. Remove the wire from the spring, in 2 locations
before and after the spring.
4. Remove Slider B.
R8S03027
Attach the
spring
Fix the wire with the tool
R8S03028a
Slider B
R8S03029a
R8S03030
Fix the wire with the tool
Slider B attachment tool
Screw
Slider B
Screw
Alignment
Misalignment between
the back and the front
Adjust
Adjust
Slider B back face
Attach-
ment tool
6. Remove the slider B attachment tool.
¡ If the slider B back face is misaligned with
the slider B attachment tool face between the
back and the front,
aa
Adjust the position of the wire screw.
To Next Page
