c Paper Feed Section
chap.4
(4)
Adjusting the Double Feed Detection Sensor
¡For description of operation.
¡For removal.
\See page 118
\See page 64
NOTE :

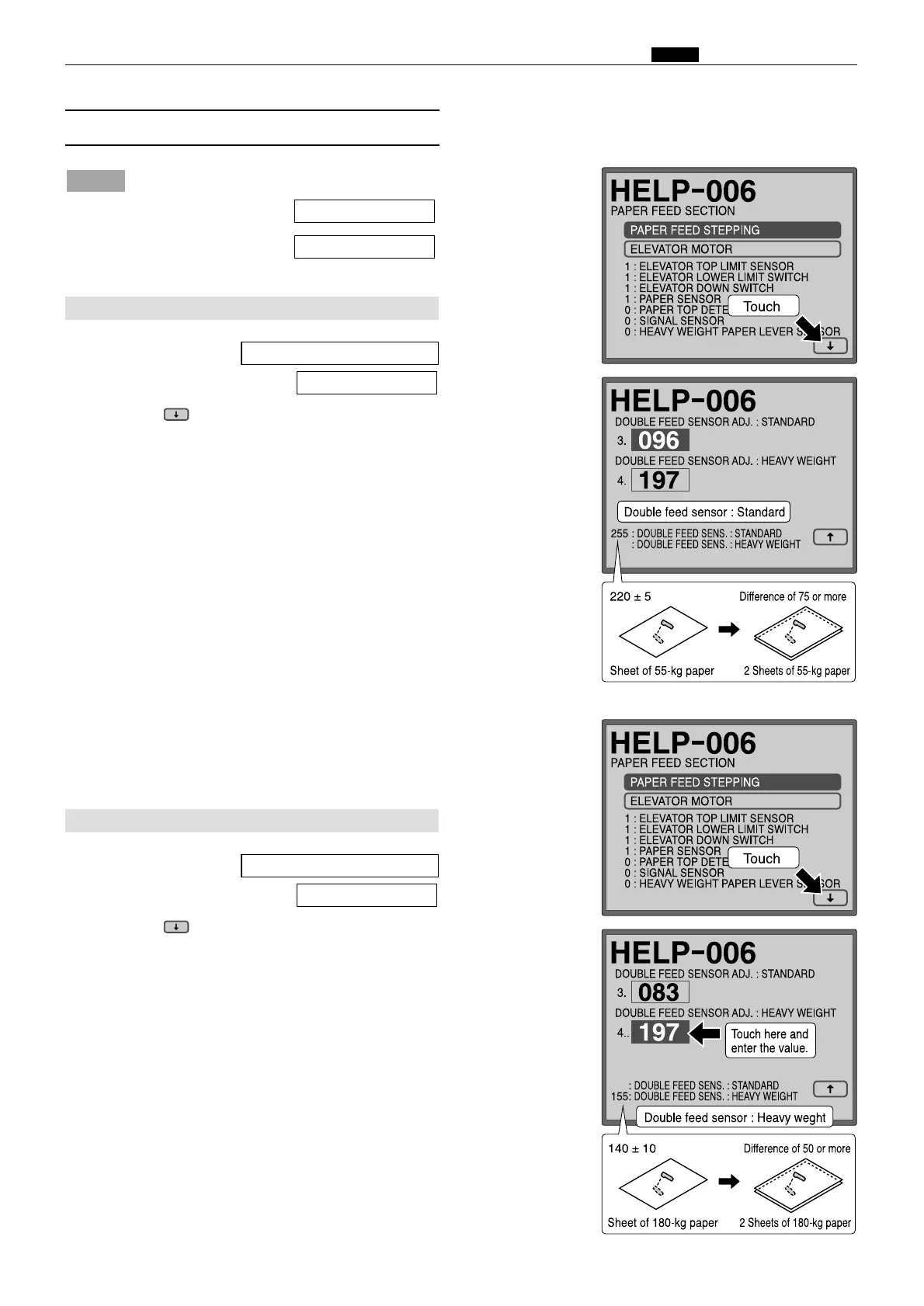

1. Access HELP - 006.
For the accessing HELP modes:
2. Touch the (arrow) on the screen lower right
twice to switch to page 3.
3. Insert one sheet of paper (55 kg) between the
double feed sensors.
4. Change the adjustment value of the double feed
sensor (standard) to "220 ± 5".
5. Insert two sheets of paper (55 kg) between the
double feed sensors to block off the light.
6. Check that the value difference is 75 or more.
\See page 199
HELP - 006 \ see p.213
1. Double feed sensor adjust : standard
1. Access HELP - 006.
For the accessing HELP modes:
2. Touch the (arrow) on the screen lower right
twice to switch to page 3.
3. Insert one sheet of paper (180 kg) between the
double feed sensors.
4. Touch the "DOUBLE FEED SENSOR ADJ:
HEAVY WEIGHT" .
5. Change the adjustment value of the double feed
sensor (heavy weight) to "140 ± 10".
6. Insert two sheets of paper (180 kg) between the
double feed sensors to block off the light.
7. Check that the value difference is 50 or more.
\See page 199
HELP - 006 \ see p.213
2. Double feed sensor adjust : heavy weight
To Next Page
