Drum Section
chap.3
(4)
Removal of Outer Frame (Right) Unit
1.
Remove the drum unit.
2.
Remove 2 screws on the rail and 1 screw on the
stay
.
3.
Remove 4 screws on the outer frame (right) unit.
4.
Part the outer frame (right) unit a little and
remove 3 connectors.
5.
Remove the outer frame (right) unit.

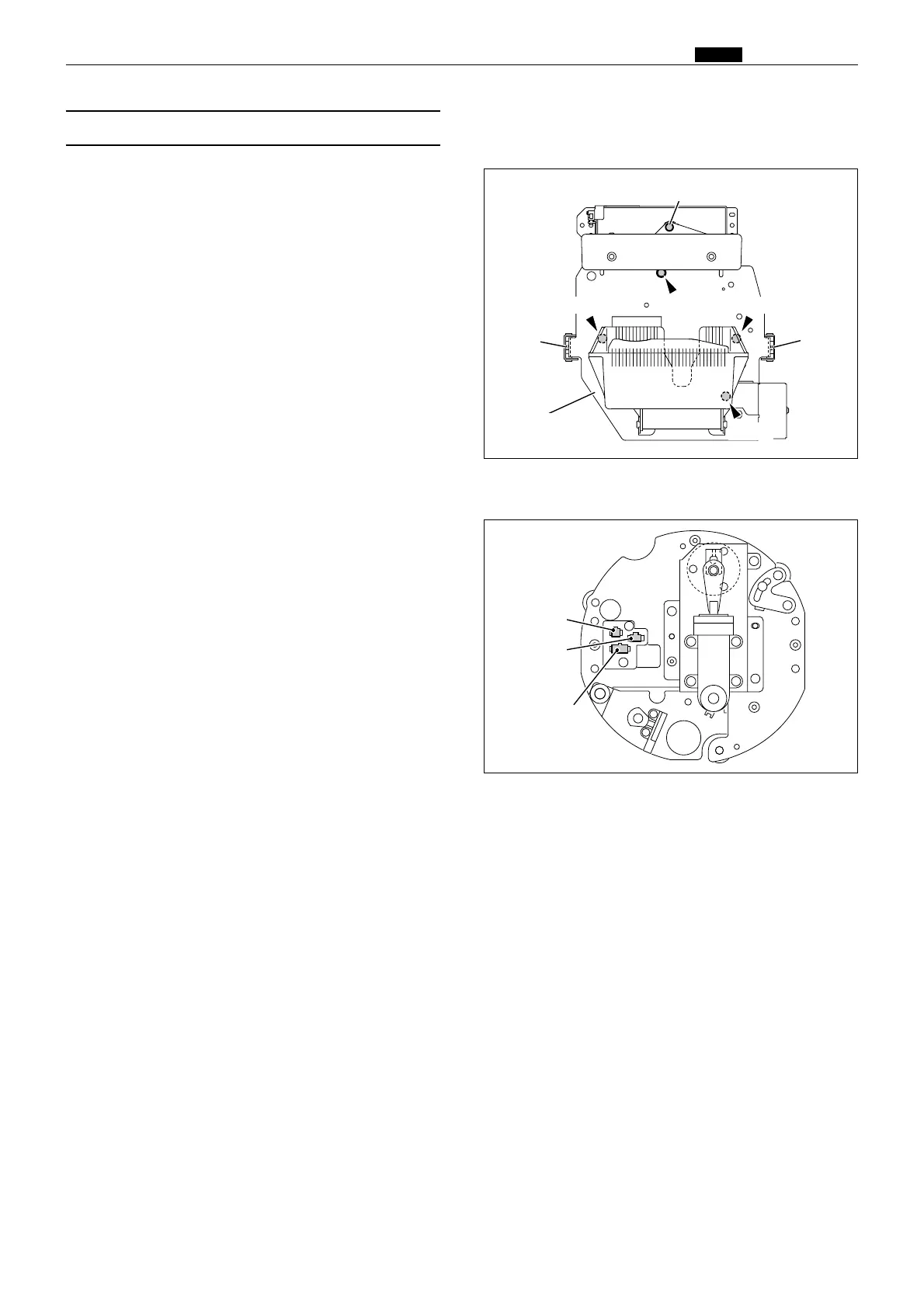

Connector
R8S03090
R8S03091
Screw
Connector
Connector
Screw
Screw
(rail)
Screw(stay)
Screw
Screw
Screw
(rail)
Outer frame
(right) unit
129
