Duplo DP-S Series User Manual

R8S03048
R8S03046
114
c Platemaking/Master Feed and Ejection Section
chap.3

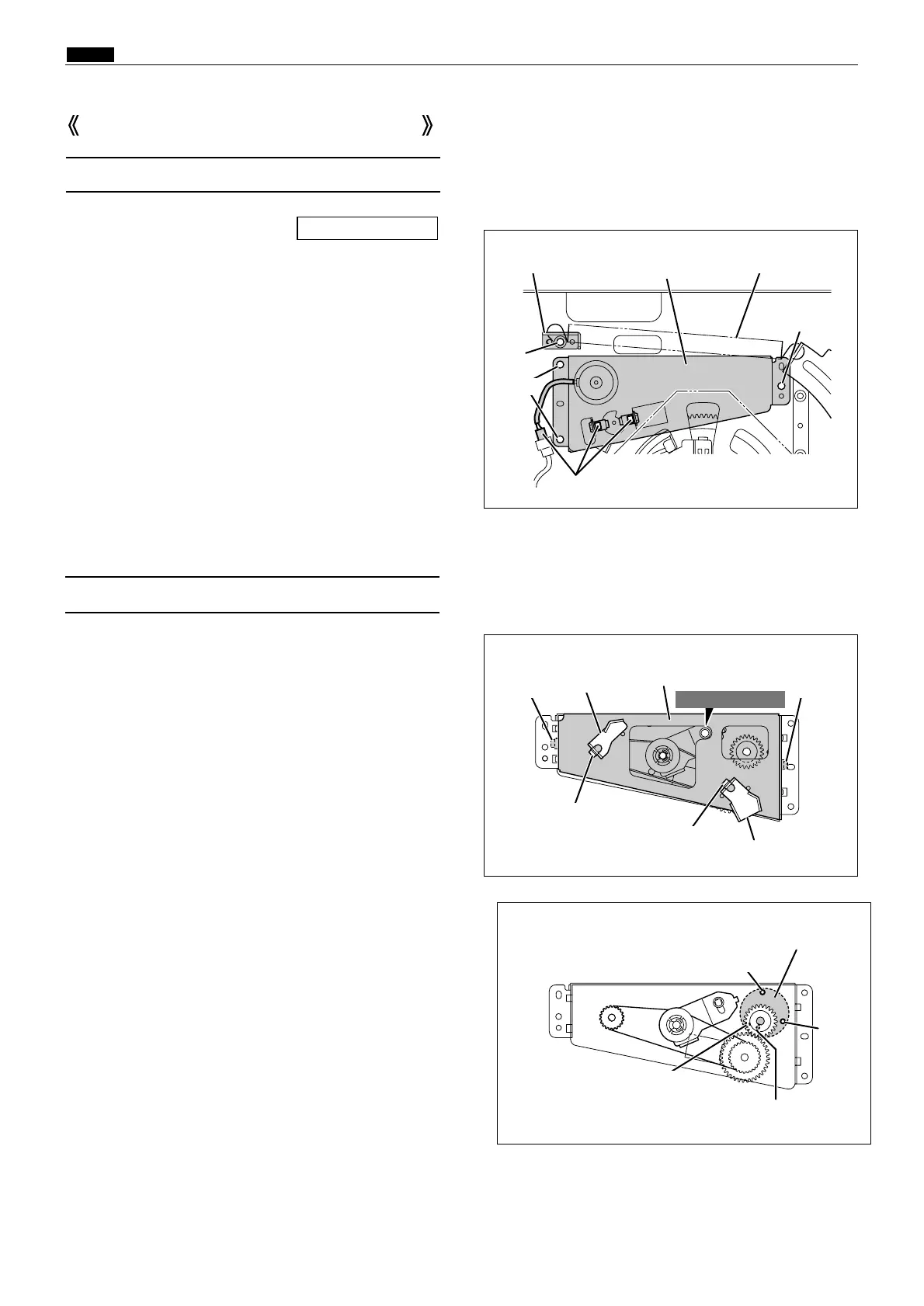

(1) Removal of Master Clamp Opening / Closing Unit
1. Remove the rear cover.
2. Remove the drum unit.
3. Remove the spring.
\See page 106
4. Remove the screw indicated, and remove the
angle.
5. Pull out 3 connectors.
6. Remove the 3 screws to take out the opening /
closing unit.
1. Remove the master clamp opening / closing unit.
2. Remove the screw indicated, and remove the
opening / closing lever.
3. Loosen the screw to loosen the tension as shown
in the figure.
4. Remove the 2 screws indicated, and remove the
reinforcement plate.
Set screw
(2) Removal of Clamp Motor
Master Clamp opening/Closing Section
Screws
Connectors
Master clamp
opening / closing unit
Clamp motor
5. Loosen the set screw indicated, and remove the
gear.
6. Remove the 3 screws to take out the motor.
Screw
R8S03047
Angle
Open/close lever
Open/close
lever
Loosen tension
Spring
Screw
Screw
Screw
Screw Screw
Reinforcement plate
Screw
Screw
Screw
