27
z Scanner Section
chap.2
(1)

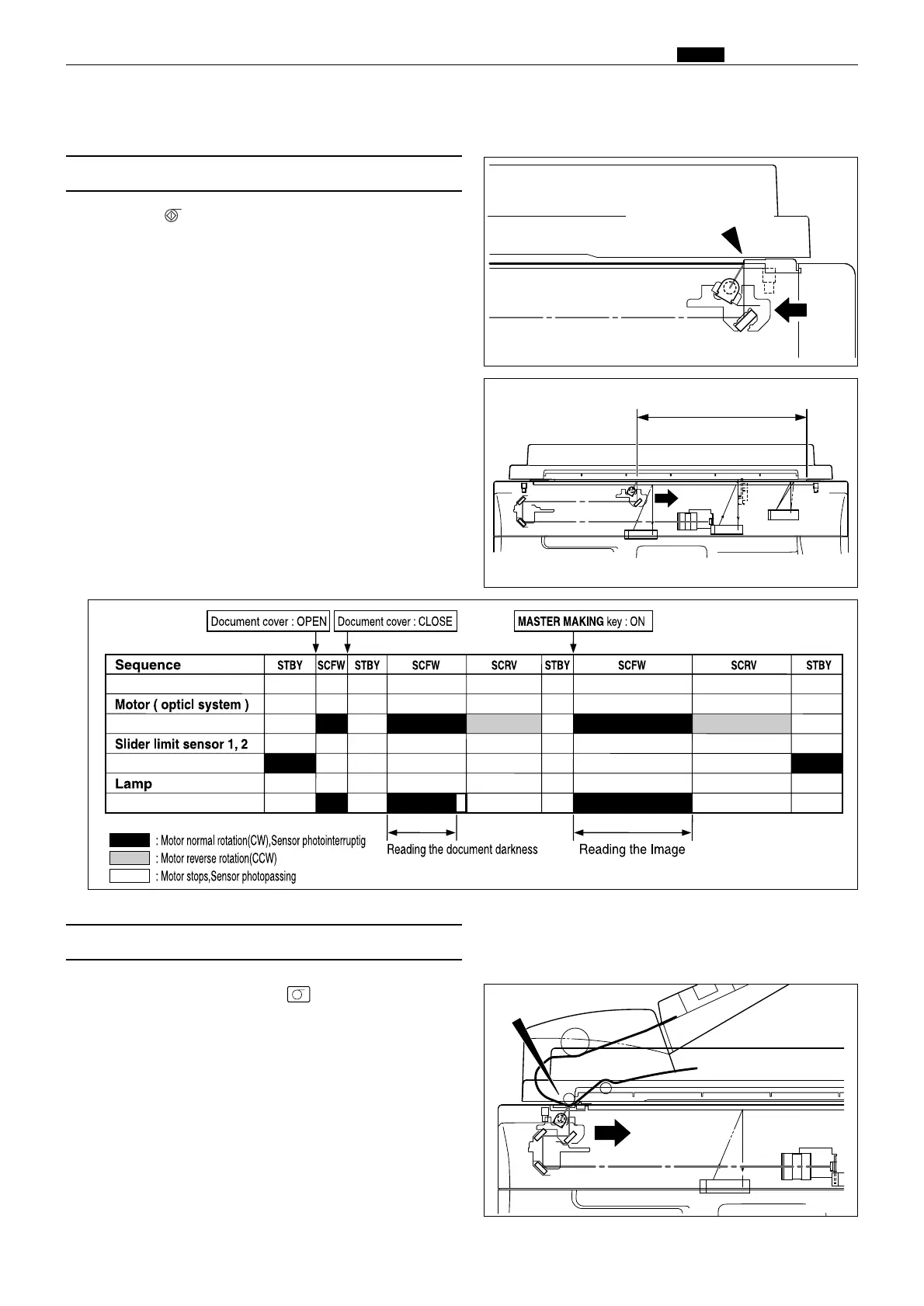

Sequence of the Scanner Operation
(with S3-ADF unconnected)
2. Sequence of Operation
1)When the (MASTER MAKING) key is pressed,
the optical system moves to the left and reads
the image.
Image reading begins
R8S02003
Image reading
R8S02004
(2)
Sequence of the Scanner Operation(with S3-ADF connected)
R8S02005
2) When image reading is complete, the lamp goes
out, but the optical system decelerates, then stops.
Following that, the optical system moves right
and returns to the home position.
3) The system is then on standby for the printing
process.
1)
When the MASTER MAKING key is pressed, the
optical system will perform shading at home position
(slider limit sensor 1), and then move to the left.
3) After it returns, the optical system is then on
standby for the printing process.
2)
The optical system reads the image stopped at
home position (
slider limit
sensor 2). When image
reading is complete, it immediately moves to the
right and returns to the home position.
Image reading
R8S02G01
¡
Sequence
To Next Page
