153
b Press Section
chap.4
20mm
Rear end of opening
Press roll
Main motor shaft
Drum flange
Mark
Press roll
Adjust collar
Hex bolts
Make
mark here
(2)

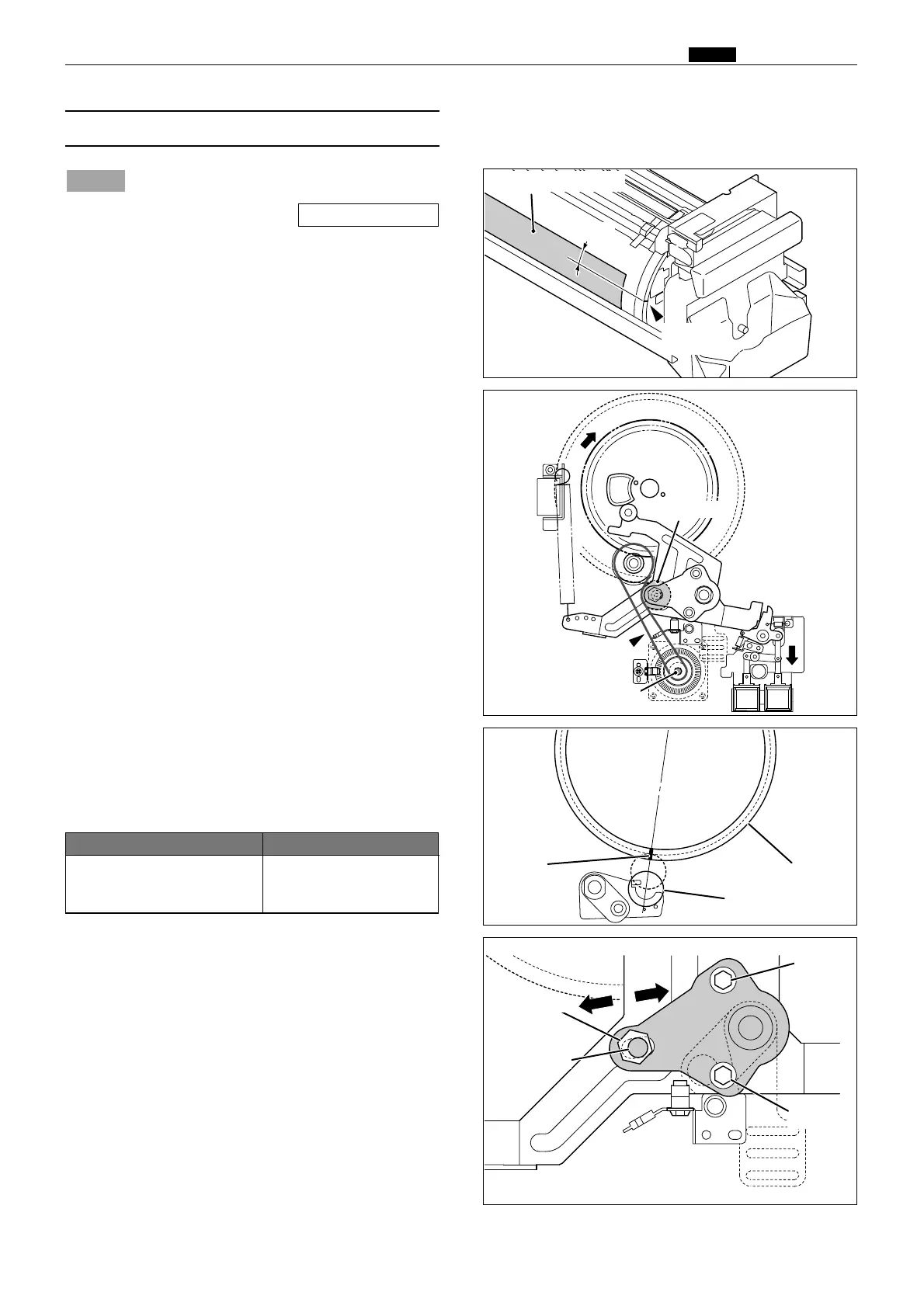

Adjusting the Printing Area (Press OFF Timing)
¡For description of operation.
Adjustment procedure
1. Make a mark on the end surface of the drum
flange, in a position 20mm forward (in the direc-
tion of the forward end) from the rear end of the
drum's opening(hole section).
2. With the press roll activated, turn the main
motor shaft by hand, and stop turning when the
press roll starts to descend (move in the direction
of the arrow).
Standard value
¡Open the front cover, and check whether the
center of the press roll is aligned with the
mark made in step 1.
NOTE :
Standard valueItem
Alignment of mark on flange
end and center of press roll
±
2mm
If the alignment is not correct:
1. Loosen the 2 hex bolts indicated.
2. Loosen the adjustment collar (eccentric) fixing
screw.
3. Turn the adjustment collar (eccentric) to move
the flange and adjust the alignment.
Moving the flange upward makes turning off of
the press occur later \ thereby making the
printing range longer
Moving the flange downward makes turning off
of the press occur earlier \ thereby making the
printing range shorter
\See page 74
R8S04033
R8S04034
R8S04035
R8S04032
Hex bolts
Fixing screw
To Next Page
