Duplo DP-S Series User Manual

113
c Platemaking/Master Feed and Ejection Section
chap.3
R8S03043
Screws
R8S03045
Connector
Cover

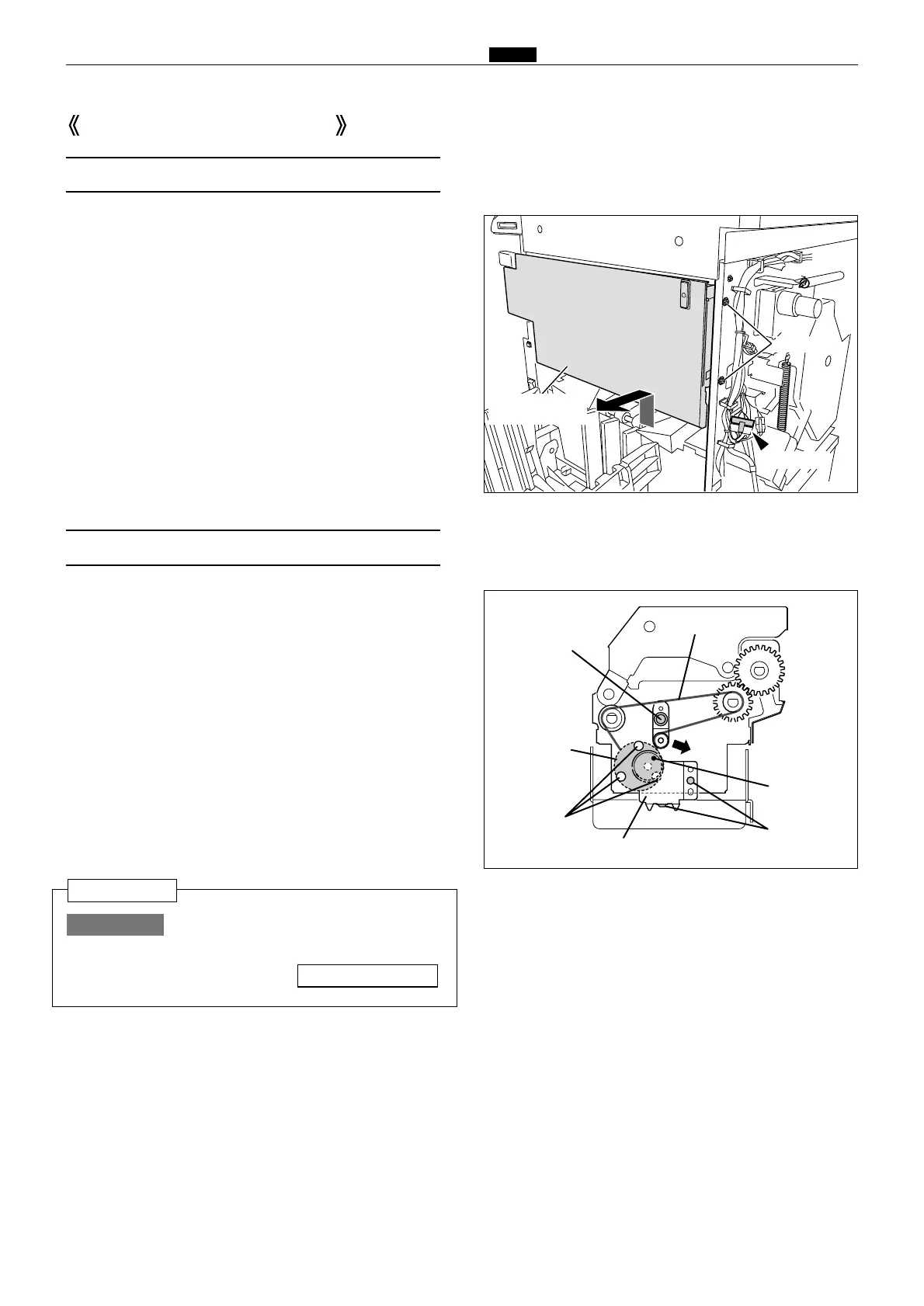

1. Open the master ejection box.
2. Remove the 2 screws and the connector and then
pull the master ejection box upward to remove it.
(1) Removal of Master Ejection Box
Master Ejection Section
1. Remove the screw indicated, and remove the
cover.
2. Loosen the screw indicated, to slacken the timing
belt.
3. Remove the timing belt from the pulley.
4. Loosen the screw shown,and remove the motor
pulley.
5. Disconnect the connector.
6. Remove the 3 motor mounting screws indicated,
and remove the eject (roll - up) motor.
Do not forget to adjust the tension
after the motor is attached.
\See page 141
IMPORTANT :
(2)
Removal of Eject Motor(Roll - up Motor)
Reinstallation
Master ejection
box
Screws
Motor
Timing belt
Pulley
Screw
Screws
