n Paper Ejection Section
chap.2
2. Functions of Parts
Mechanical Structure and Operation

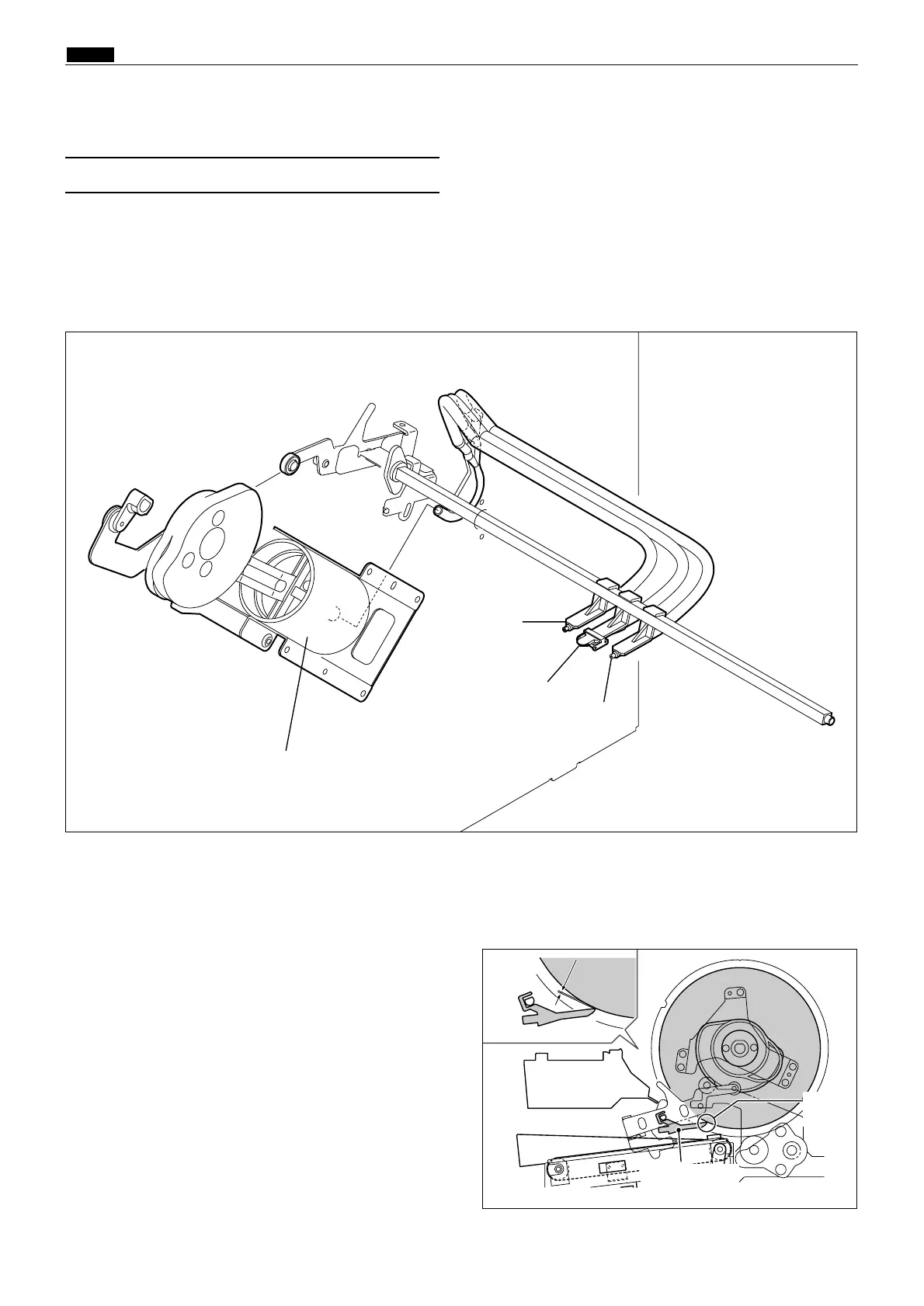

In addition to the paper stripper finger installed in the center, there are two sub paper remover fingers on
both sides. There is an air diffuser on the tip of the finger. Compressed air transmitted from the air pump is
blowed out of this hole to detach the tip end of the paper from the drum.
To remove the paper from the drum firmly, the gap between the tip of finger and the drum surface and
between the tip of finger and the corner of the master clamp are adjusted as follows:-
Air pump
Sub paper
stripper finger
Paper
stripper finger
Sub paper
stripper finger
Drum
surface
Approx
0.5mm
Paper stripper
finger
(1) Paper Stripper Finger
R8S02072
R8S02071
