Duplo DP-S Series User Manual

136
z Scanner Section
chap.4

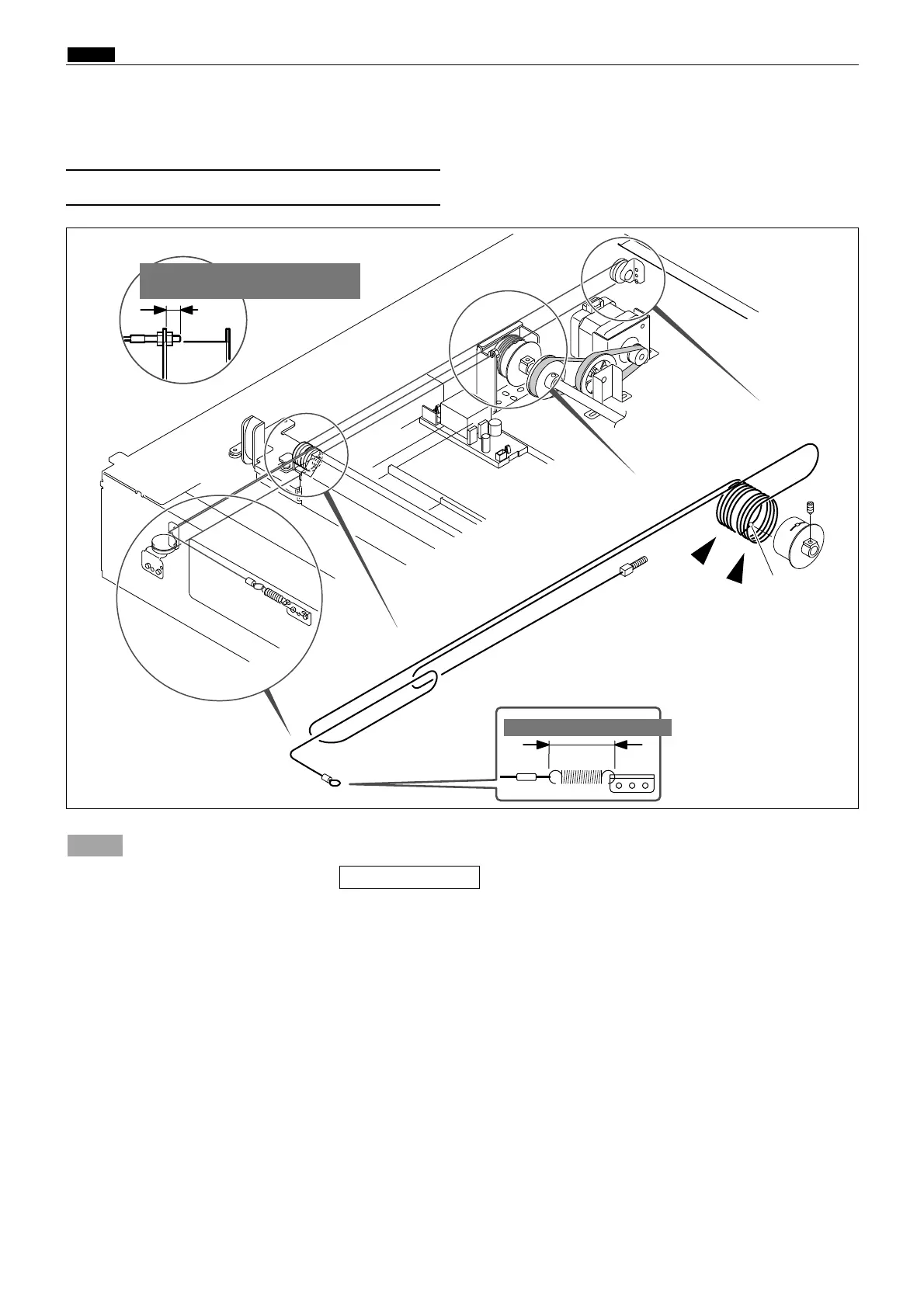

(1) Attaching the Rear Wire
Adjustment procedure
1. Insert the ball end of the wire into the groove opening
on the pulley. Wrap the wire 6 times in the rear, and 4
times on the operation side.
2. Place the wire on the screw side onto the pulley.
3. Place the wire on the rear pulley of Slider B.
4. Pass the screw through the bracket opening, and fix it
in place with 2 nuts. (Temporarily fix the bracket and
the screw tip with a gap of 10 mm.)
5. Place the wire on the hook side on the pulley.
6. Place the wire on the pulley in front of Slider B.
7. Place the wire on the corner guide.
8. Place the spring on the hook.
9. the fixing position in 4 so that the total spring length
is approx. 40 mm.
¡For removal of the rear wire
\See page 107
NOTE :
zScanner Section
R8S04001
Ball end
Place on pulley
Wrap 4 times
q
w
y
r
e
u
i
t
Place on pulley
Place on pulley
Wrap 6 times
Fix with nut
Place on corner guide
Place on spring
Place on pulley
Temporarily fix the bracket and
the screw tip with a gap of 10 mm.
Total spring length: 40 mm
