Duplo DP-S Series User Manual

v Part Names and Their Functions
chap.1
20

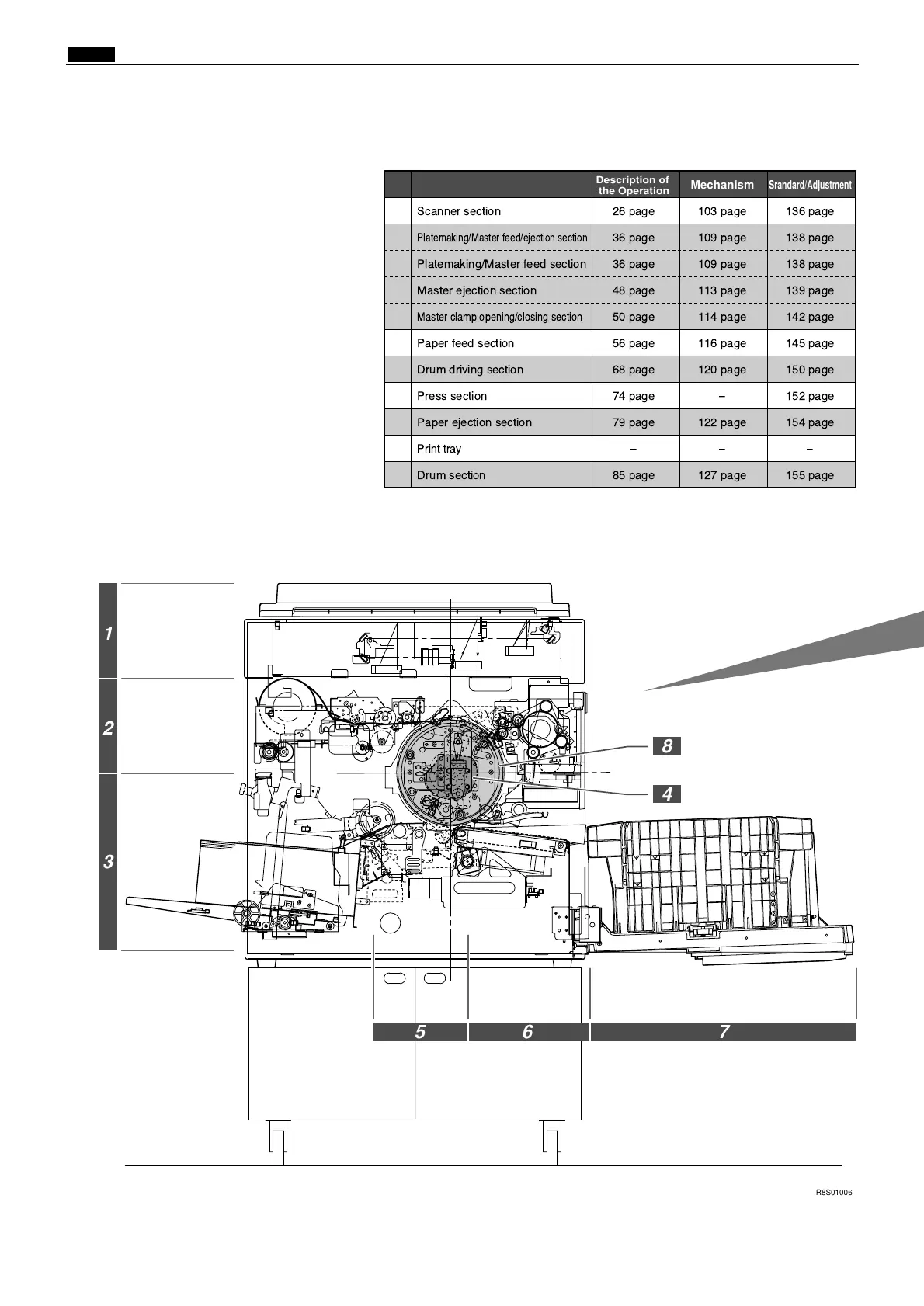

2. Sectional (structural) view of the machine
No.
1
2
2A
2B
2C
3
4
5
6
7
8
Section Name
Scanner section
Platemaking/Master feed/ejection section
Platemaking/Master feed section
Master ejection section
Master clamp opening/closing section
Paper feed section
Drum driving section
Press section
Paper ejection section
Print tray
Drum section
26 page
36 page
36 page
48 page
50 page
56 page
68 page
74 page
79 page
-
85 page
Mechanism
103 page
109 page
109 page
113 page
114 page
116 page
120 page
-
122 page
-
127 page
Srandard/Adjustment
136 page
138 page
138 page
139 page
142 page
145 page
150 page
152 page
154 page
-
155 page
Description of
the Operation
1
2
3
56 7
8
4
R8S01006
