Duplo DP-S Series User Manual

125
n Paper Ejection Section
chap.3

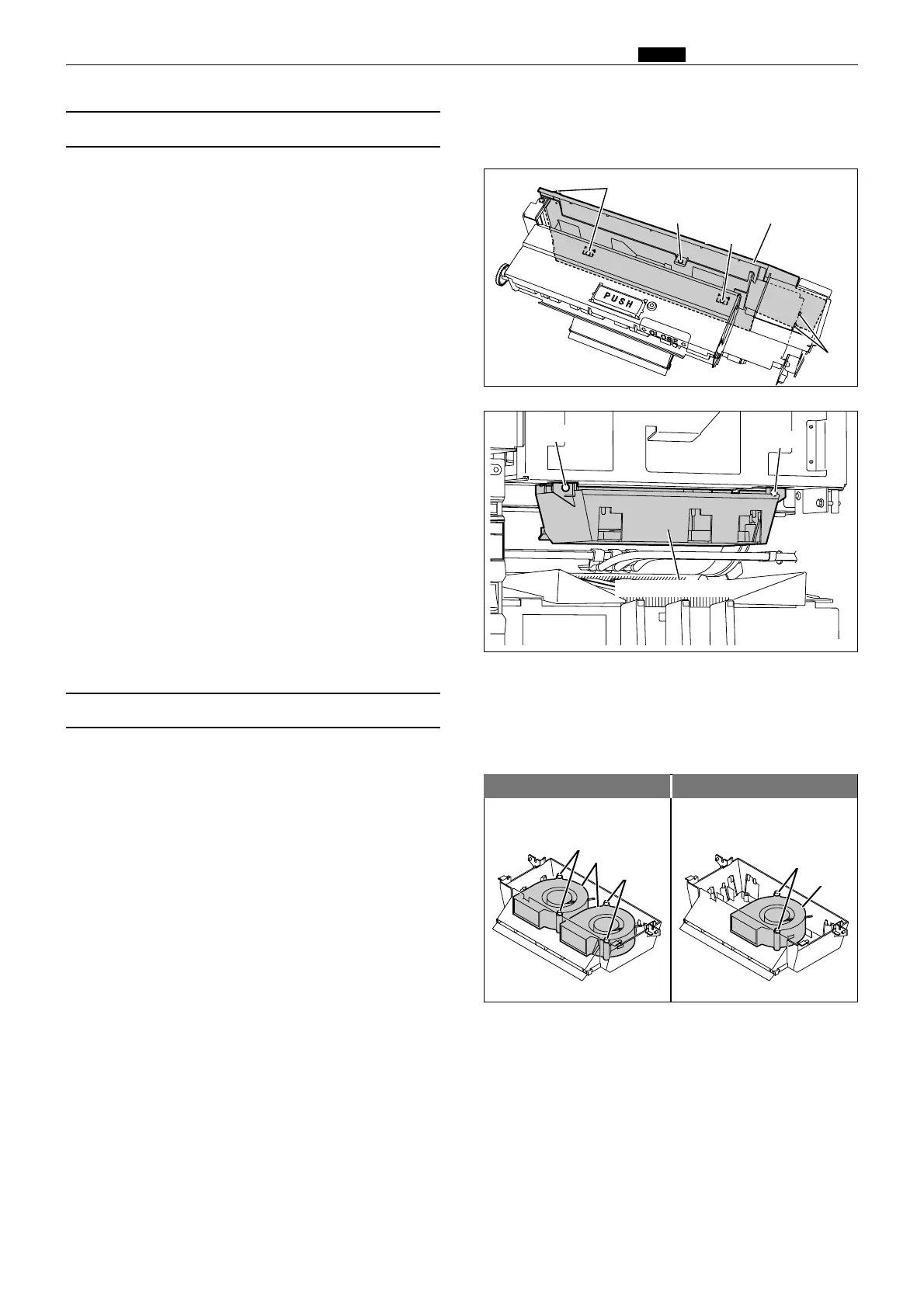

1. Open the master ejection box.
2. Remove the 6 screws indicated, then remove the
master ejection cover.
(5) Removal of Top Blow Fan Unit
1. Remove the top blow fan unit.
2. Remove the 2 screws indicated, and remove the
fan.
(6) Removal of Fan
R8S03077
R8S03078
Top blow fan unit
R8S03079
Master ejection
box
Fan
Fan
2
DP-S850/S650
2
DP-S620/S550/S520/S510
3. Remove the 2 screws.
4. Disconnect the 2 connectors, then remove the top
blow fan unit.
Screws
Screw
Screw
Screws
Screw
Screw
Screws
Screws
Screws
