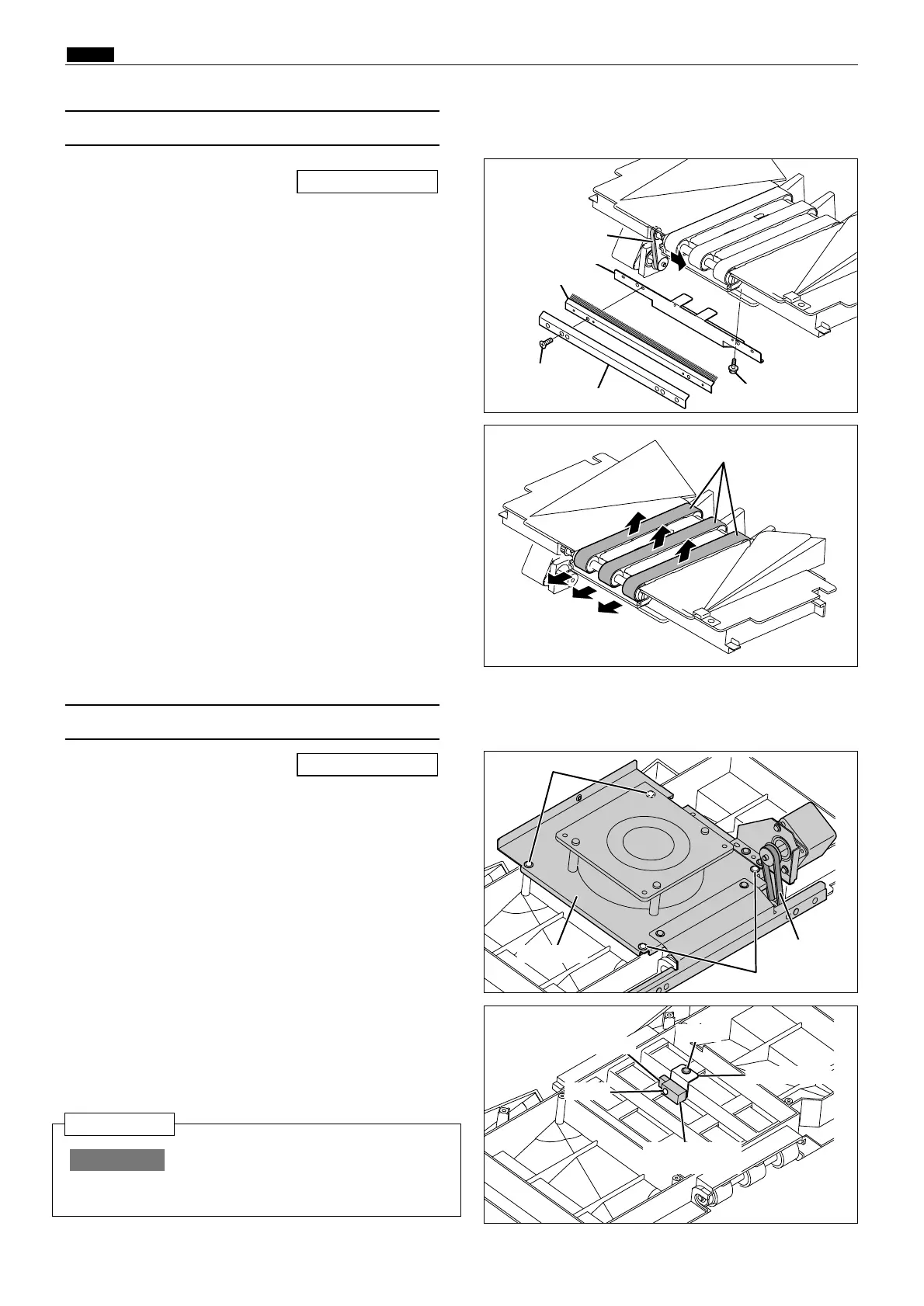

n Paper Ejection Section
chap.3
1. Remove the paper ejection base.
2. Remove the paper ejection belts.
3. Remove the 4 screws indicated, and remove the
base plate.
\See page 123
(4) Removal of Paper Ejection JAM Sensor
(3) Removal of Paper Ejection Belt
1. Remove the paper ejection base.
2. Remove the 2 screws from the static removal
brush.
3. Remove the 2 screws from the static removal
bracket.
4. Remove the timing belt.
\See page 123
5. Stretch the belts and install them oriented as
shown in the figure.
Screw
R8S03073
R8S03076a
Static removal brush
Timing belt
Guide plate
Screws
Static removal bracket
R8S03075
Timing belt
Screws
Base plate
R8S03076b
Paper ejection
jam sensor
Connector
Sensor angle
Screw
Paper ejection belts
4. Remove the screw indicated, and remove the
sensor angle.
5. Remove the screw and disconnect the connector,
and remove the paper ejection jam sensor.
Do not mistake installation directions
of the paper ejection jam sensor.
IMPORTANT :
Reinstallation
Screw
Screw
